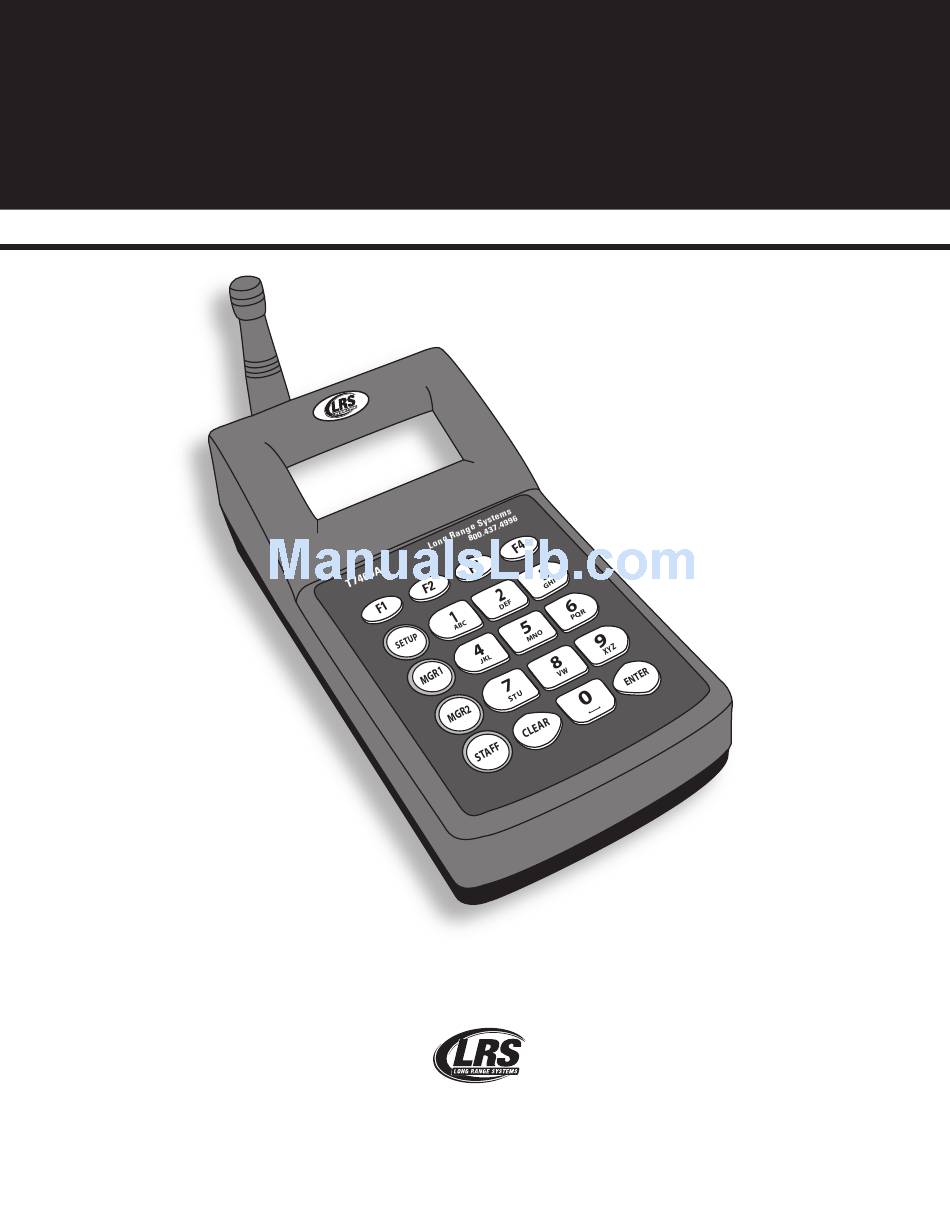

T 7400 A
Paging System Transmitter
12.02.09
U S E R M A N U A L
I I n n s s t t a a l l l l a a t t i i o o n n , , W W a a r r r r a a n n t t y y a a n n d d S S e e r r v v i i c c e e I I n n f f o o r r m m a a t t i i o o n n
Long Range Systems, Inc.
4 4 5 5 5 5 0 0 E E x x c c e e l l P P a a r r k k w w a a y y , , S S u u i i t t e e 2 2 0 0 0 0
A A d d d d i i s s o o n n , , T T X X 7 7 5 5 0 0 0 0 1 1
8 8 0 0 0 0 . . 4 4 3 3 7 7 . . 4 4 9 9 9 9 6 6
w w w w w w . . p p a a g g e e r r . . n n e e t t
• •
