StarTech.com SV431HU34K6 Quick Start Manual

4-Port USB 3.0 KVM Switch - HDMI - 4K 60Hz

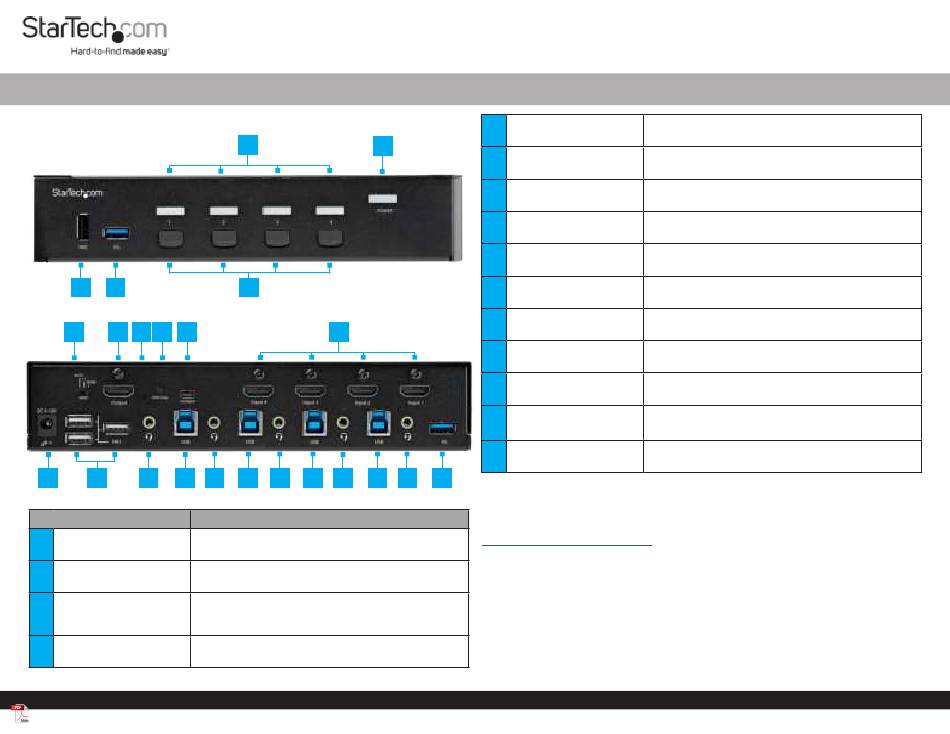

Product Diagram (SV431HU34K6)

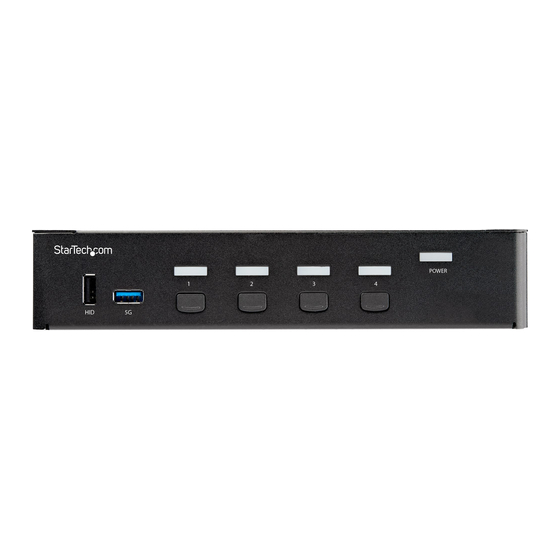

Front View
3 4
Rear View
6 7 8 9 10
12 3 13 14 15
Port
Port Selection LED • Green: PCs 1-4 connected (power on)
1
Indicators • Red: PCs 1-4 selected (power on)
2 Power LED • Green: Universal Power Adapter connected
• Connect up to 4 USB Human Interface Devices
3 Console USB HID Ports (HID) (e.g. Keyboard, Mouse, Trackpad, Number
Keypad, Drawing Tablet)
• Connect up to 2 SuperSpeed USB 5Gbps (USB 3.2
4 Console USB Hub Ports
Gen 1) Peripheral Devices
To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.
1
2
5
11
14 15 14 15 14 15
Function
5 Port Selection Buttons
6 HDCP Switch
Console HDMI Output
7
Port
8 EDID LED Indicator
9 EDID Button
10
Firmware Upgrade Port
11 PC HDMI Input Ports
12 Power Input Port
13 Console Audio Port
14 PC USB Ports
15 PC Audio Ports
4
Requirements
For the latest requirements and to view detailed instructions on all product functionality
in a full user manual, please visit:
www.startech.com/SV431HU34K6.
Source PCs
• Computers (HDMI enabled) x 4
• HDMI Cables x 4
• SuperSpeed USB 5Gbps (USB 3.2 Gen 1) Cables (Type-A Male to Type-B Male) x 4
• (Optional) 3.5 mm Audio Cables (Male to Male) x 4
Console
• HDMI Display x 1
• HDMI Cable x 1
Quick-Start Guide
• Press the Port Selection Button to select PCs 1-4
• Control HDCP Mode
• Connect the Console HDMI Display
• Indicates EDID Mode
• EDID Copy or Auto EDID from the Console HDMI
Display
• Used to upgrade the Firmware. Use with
Firmware from StarTech.com only.
• Connect to an HDMI Port on PCs 1-4
• Connect a DC 12V Power Source to power the
KVM Switch
• Connect an Audio Device (Stereo Speakers or a
Microphone)
• Connect to a SuperSpeed USB 5Gbps (USB 3.2
Gen 1) Port on PCs 1-4
• Connect to an Audio Port (for Stereo Speakers or a
Microphone) on PCs 1-4
Manual Revision: October 15, 2020
