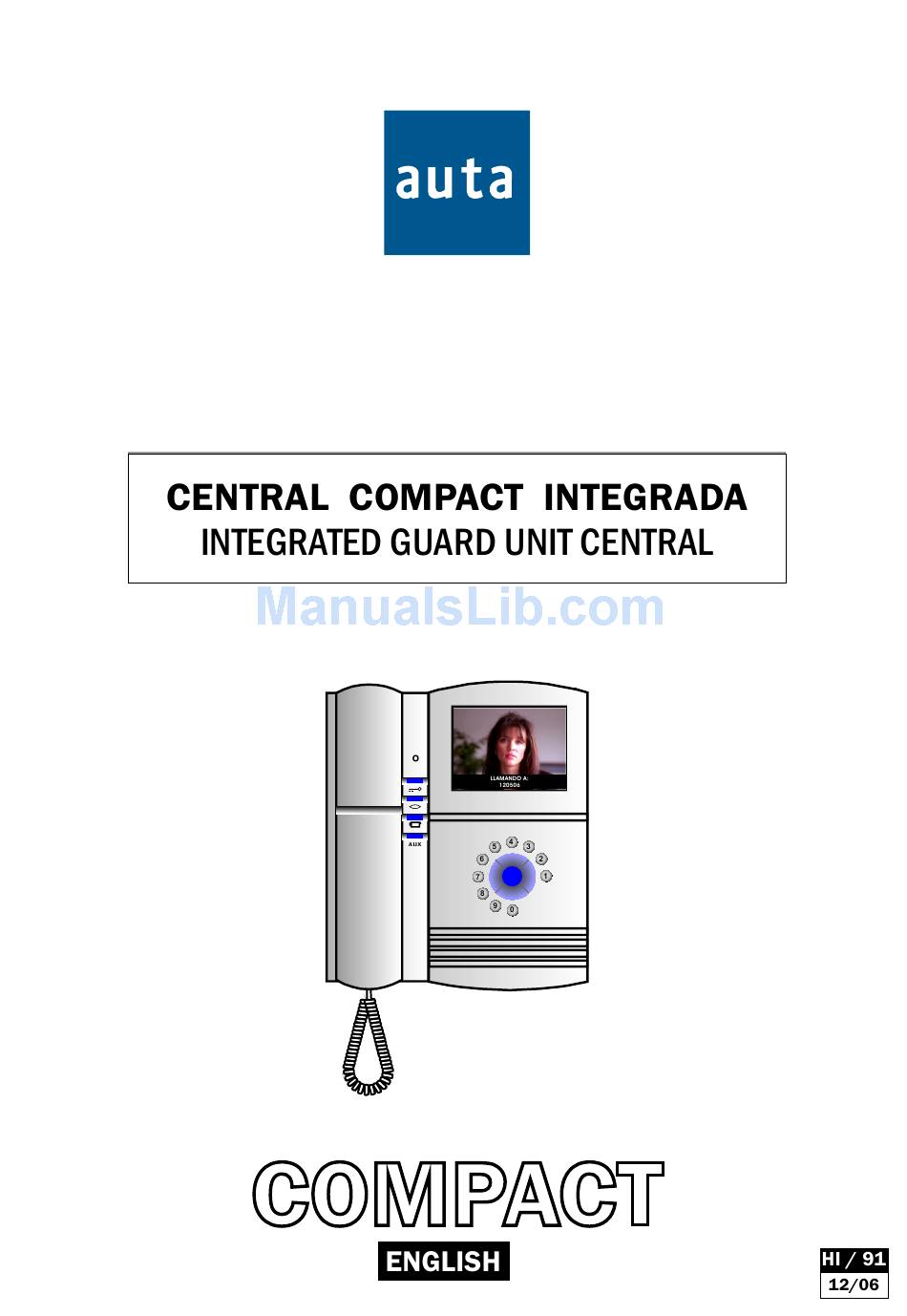

Auta CENTRAL COMPACT INTEGRADA User Manual
  1. Manuals
  2. Brands
  3. Auta Manuals
  4. Intercom System
  5. CENTRAL COMPACT INTEGRADA
  6. User manual

Auta CENTRAL COMPACT INTEGRADA User Manual

Integrated guard unit central
Hide thumbs
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CENTRAL COMPACT INTEGRADA and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Auta CENTRAL COMPACT INTEGRADA

Summary of Contents for Auta CENTRAL COMPACT INTEGRADA

  • Page 3 User Guide Introduction The new AUTA Integrated Switchboard (SB) is an advanced communication device, that offers the best way to manage the calls performed from any flat or any outdoor panel. It represents a technological evolution, and can be considered as an intermediate stage from the traditional video door entry systems, to the newest domotic systems of last generation.
  • Page 4 INTEGRATED GUARD UNIT CENTRAL User Guide Functioning The new switchboard includes 4 operating modes, that determine the way it reacts to the incoming calls from the outdoor panels: • Standard Mode: The switchboard receives all the incoming calls made from the panels.
  • Page 5 INTEGRATED GUARD UNIT CENTRAL User Guide Direct entry to Queue. Main menu entry. Main menu entry. Main menu entry. Direct entry to Directory. Figure 2. Navigator functions with SB in Stand By state. The special keypad is the same that the COMPACT monitor one and with similar functions.
  • Page 6 INTEGRATED GUARD UNIT CENTRAL User Guide 1. Communication with Flats. 1.1. Call from Switchboard to Flats: The SB can initiate the call to a flat by 3 different ways: Typing a call code, navigating through the Directory or also navigating through the Queue. If the installation is a video one, the monitor in the flat will get image from the auxiliary camera of the SB, if it is installed.
  • Page 7 INTEGRATED GUARD UNIT CENTRAL User Guide In any of the 3 cases, when a call is performed, the following messages may be displayed on the screen: • When the call is performed, at the bottom left corner of the screen will appear the message: Calling •...
  • Page 8 INTEGRATED GUARD UNIT CENTRAL User Guide 2. Communication with Panels. 2.1. Communication from SB to Panels: Press self-starting button ( ) in the SB: • The guard porter connects audio and video (if the installation is a video one) with the last panel it had communication with, or by default with panel 0.
  • Page 9 Perform a consult to the flat ( ). • Readdress the call and pass it through to another flat (OK + search + • Readdress the call and perform a consult to another flat (OK + search + auta Cod: 030101 P: 1 Pedro Martínez 1º C...
  • Page 10 INTEGRATED GUARD UNIT CENTRAL User Guide Note: • Pass to ( ): It is used when the guard porter wants to pass the incoming call through to the flat, without needing to consult before. When the handset is picked up in the flat, the switchboard will show the message LINE ENGAGED and it won’t be able to interfere the conversation.
  • Page 11 INTEGRATED GUARD UNIT CENTRAL User Guide 3. Communication with another SB. The SB allows keeping communication with other SB in a similar way that it does with the flats. 3.1. Call to another SB: It is possible to call to another SB in two different manners: by code or from the missing calls queue.
  • Page 12 In the Stand By state, if any of keys is pressed, the menu shown in figure 6 will appear on the screen. Using and OK keys it is possible to get to any option of this menu. auta Directory Queue Settings Configuration...
  • Page 13 ), or if a call is returned and the conversation is established (if it is not, the call will remain queued). Once all the calls have been erased, the screen will show that the queue is empty and the switchboard will return to the main menu. auta Cod: 0 00025 1 / 2 Enrique Simon 2º...
  • Page 14 INTEGRATED GUARD UNIT CENTRAL User Guide Available operating modes are shown on the screen. Current operating mode is also displayed on the bottom of the screen. To change the operating mode, use keys and confirm pressing OK. To exit from this menu, press 4.3.2.
  • Page 15 INTEGRATED GUARD UNIT CENTRAL User Guide Owner or Installer: Configuration Menu. 4.4. Configuration: The access to this menu is protected by a password to avoid that the guard porter may alter the configuration of the system. The content of this menu must be up to the installer or owner.
  • Page 16 To erase the directory see chapter 4.4.1.3. To use the remote entry from PC it is necessary to have the auta connection kit. This kit includes the software “auta Directory” and an interface for RS232 serial port.
  • Page 17 INTEGRATED GUARD UNIT CENTRAL User Guide The software “auta Directory” must be run from a PC or a laptop. The program allows creating a new database or loading an existing one to transmit it. The SB shows the message “OK” each time a register is correctly received, and it increases a counter on screen.
  • Page 18 INTEGRATED GUARD UNIT CENTRAL User Guide The automatically generated codes follow a logic sequence: • The two first digits correspond to the number of the building (SDL). • The two digits in the middle indicate the plant. • The two last digits represent the flat itself. Suitable codes of Telephone/Monitor and SDL are assigned to each of the automatically generated register.
  • Page 19 INTEGRATED GUARD UNIT CENTRAL User Guide If the Master switchboard is switched off, the Slave one with the lowest identification number (ID) will temporally assume the Master role, performing all its functions. Only the Master SB (or the Slave one that replaces it if it is switched off) can queue calls.
  • Page 22 600011 M.C. VISUAL TECH 5H NO ES COMPATIBLE auta comunicaciones s.l. POL. IND. EL OLIVERAL - CALLE C , 46394 RIBARROJA DEL TURIA (VALENCIA) TFNO. +34 96 164 30 20 - FAX. +34 96 166 52 86 E-MAIL: AUTA@AUTA.ES HTTP://WWW.AUTA.ES...
