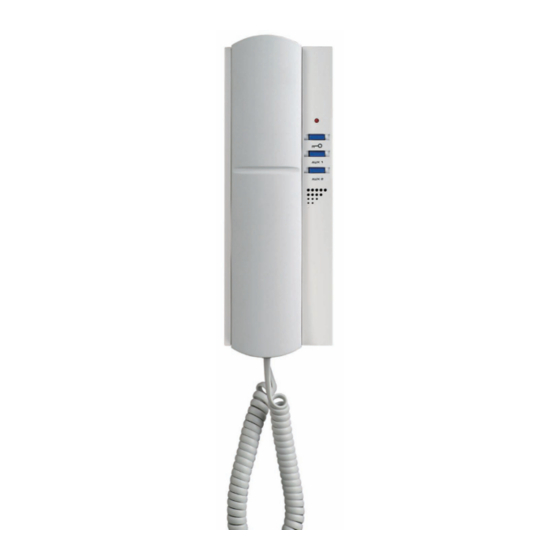

- Page 1 DIGITAL REF. 701805 Teléfono COMPACT, INTERCOM INTERIOR COMPACT telephone, INTERNAL INTERCOM Bringing people together...
- Page 2 Bringing people together Descripción Description Teléfono digital INTERCOM INTERIOR. Permite la intercomunicación interior (sin placa de calle) de hasta 6 terminales. Incorpora salidas auxiliares, melodías, funciones especiales, etc... Digital INTERNAL INTERCOM telephone. Allow internal intercom (without external panel) up to 6 terminals. Incorporates auxiliary outputs, melodies, special functions, etc...
- Page 3 Bringing people together Montaje Mounting Instalación Installation COD. 1 COD. 3 COD. 2 Manual de instalación INTERCOM Installation manual INTERCOM...
- Page 4 El teléfono dispone de 1 pulsador independientes que permiten realizar maniobras auxiliares, como el accionamiento de puertas de garaje, encendido de luces, riego, etc... Para ello se usará un relé auxiliar Auta conectado al circuito de maniobra que se desee controlar. Modo prioritario Al activar este modo el teléfono es capaz de finalizar cualquier conversación que en ese momento este teniendo lugar...
- Page 5 The monitor has 1 independent push-button that allow auxiliary functions, such as garage doors, lights, irrigation, etc ... To do this, an Auta auxiliary relay must be connected to the control circuit we want to control. Priority mode By activating this mode the phone is able to end any conversation that is currently taking place in the system. Leaving...
- Page 6 PULSE mode (1 second) AUX 2 La salida se activará en modo ON-OFF (cada pulsación cambia estado) AUX 2 The output be activated in ON-OFF mode (every push it changes state) AUX 2 auta.es Bringing people together HI-795 _ V 1.0...
