- Page 1 DIGITAL REF. 752105 MONITOR COMPACT, COAX_NO-COAX_P&P COAX_COAXLESS_P&P, COMPACT MONITOR Bringing people together...

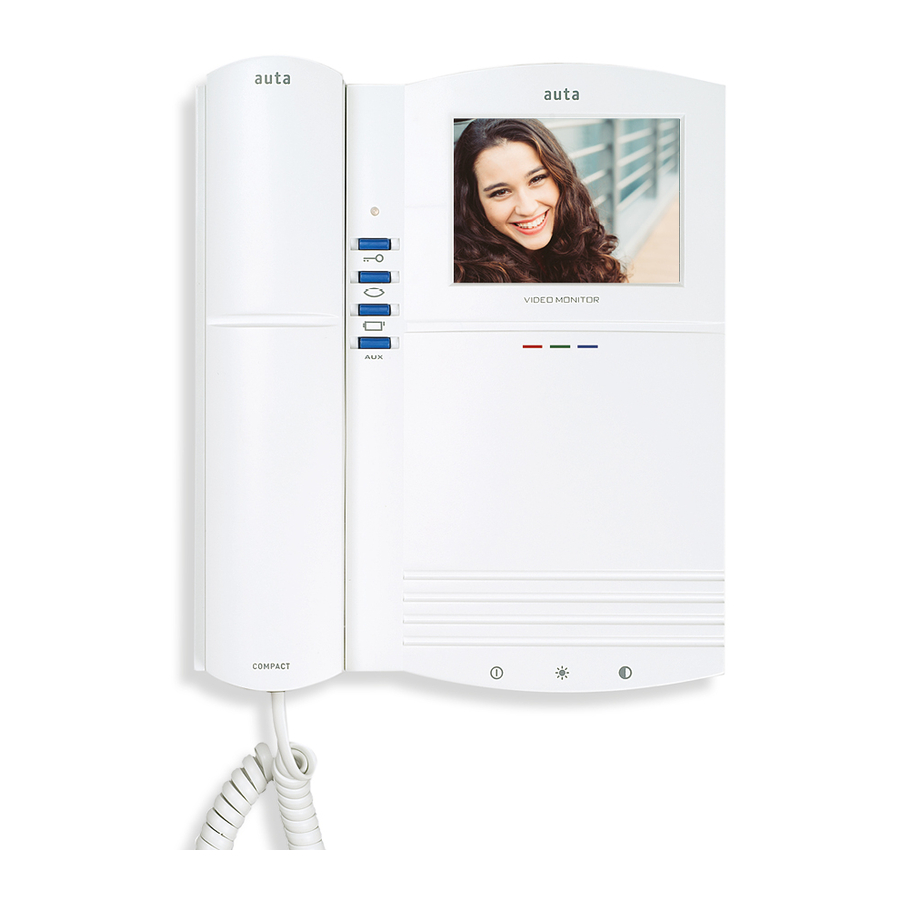

- Page 2 LCD COLOR 4.3”, audio HD, salidas auxiliares multi-función, selección de melodías, funciones especiales. COLOUR digital monitor. It can be installed on any Auta COAX, COAXLESS or P&P digital system. It incorporates a LCD COLOUR 4.3”,HD audio, auxiliary multi-function outputs, selection of melodies, special functions.
- Page 3 Bringing people together Instalación Installation 2ºA 2ºB 2ºA COD. 7 COD. 8 COD. 7 COD. 7 Manual de instalación VIDEO COAX Installation manual VIDEO COAX 2ºA 2ºB 2ºA COD. 7 COD. 8 COD. 7 COD. 7 Manual de instalación VIDEO NO-COAX Installation manual VIDEO COAXLESS 2ºA 2ºB...
- Page 4 El monitor permite el control de placas y cámaras CCTV automáticamente. Cada pulsación en el pulsador activará un dispositivo diferente. Para ello se ha de instalar cada cámara CCTV junto a un interface Auta digital. funciones externas El monitor dispone de 2 pulsadores independientes que permiten realizar maniobras auxiliares, como el accionamiento de puertas de garaje, encendido de luces, riego, etc...
- Page 5 To do this, each CCTV camera must be installed with an Auta digital interface. external functions The monitor has 2 independent push-buttons that allow auxiliary functions, such as garage doors, lights, irrigation, etc ... To do this, an Auta auxiliary relay must be connected to the control circuit we want to control.
- Page 6 The input allows a remote door opening, only when a call is received Retorno a valores de fábrica Back to factory settings auta.es Bringing people together HI-760 _ V 1.0...
