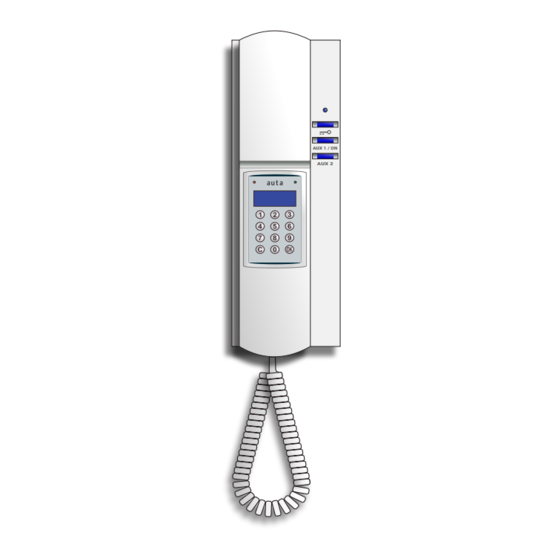

CCA
guard porter
system:
SPEAKER
CONTROL
KEYPAD
MICRO
dimensions 79
x 217
(wi)
surface mounting
selection of melodies, volume and tones
controls multi-flat y multi-block
management of "missed calls"
761301_DIGITAL
GUAR PORTER call
SELF-STARTING
x 50
(hi)
(de) mm
MELODY
selector
calling
VOLUME
status
LED
HANG
switch
FLAT call
SPECIAL
functions
DING DONG
external functions (lights, garage, etc...)
AUDIO HD system
self-starting function
INTERCOM between guard porter units
AUX 1 / ON
AUX 2
AUX 1 / ON
AUX 2
MU-37
V1.0
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Auta CCA GUARD PORTER
Summary of Contents for Auta CCA GUARD PORTER
- Page 1 AUX 1 / ON AUX 2 guard porter 761301_DIGITAL system: MELODY selector calling VOLUME status SPEAKER AUX 1 / ON HANG AUX 2 switch CONTROL FLAT call KEYPAD GUAR PORTER call SELF-STARTING MICRO SPECIAL functions dimensions 79 x 217 x 50 DING DONG (wi) (hi)
- Page 2 Functioning adjust of the calling volume To adjust the volume of the call, insert a clip or similar through the indicated hole and press with it lightly. The phone has two volume levels (MEDIUM and HIGH) melody selection To select a ring tone, you have to pick up the handset and press the hang switch with your finger. With it pressed, a clip or similar must be inserted in the indicated hole and press with it lightly.
- Page 3 Functioning call and conversation When a call is received from the entrance panel, the guard porter starts to sound for a maximum of 30 seconds (see operating modes). As standard, it performs 4 rings with intervals of 4 seconds between each of them. The control panel will show information about the user to whom the call is being made and the panel ID number from which it is being called.
