v
POLAR
FREEZE
RAPID
ICE
CUBE
CRUSH
LIGHT
FILTER
RESET

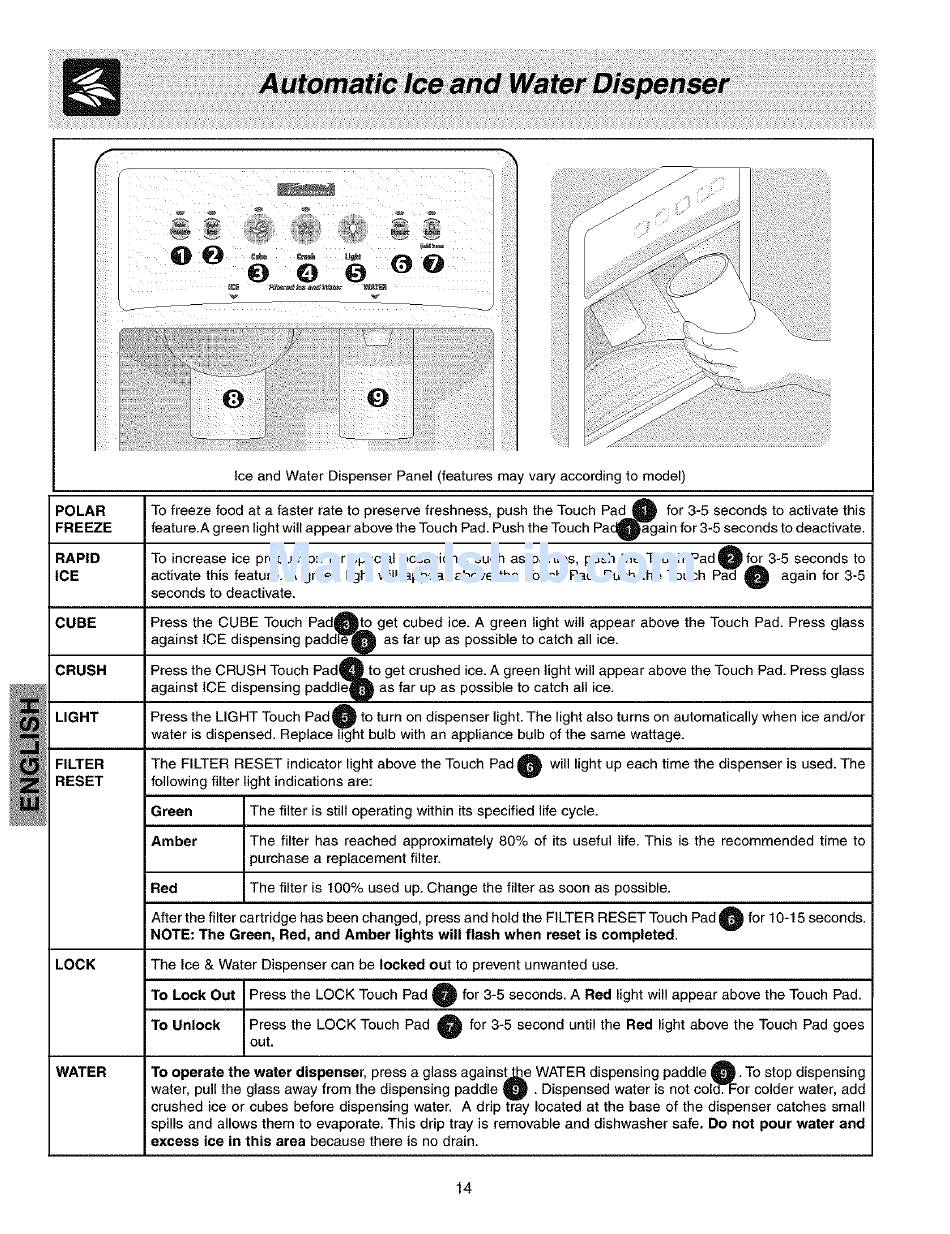

Ice and Water Dispenser Panel (features may vary according to model)
To freeze food at a faster rate to preserve freshness,
push the Touch Pad t
feature.A green light will appear above the Touch Pad. Push the Touch Pac
for 3-5 seconds to activate this
]in for 3-5 seconds to deactivate.
To increase ice production
for special occasions,
such as parties, push the Touch Padl
for 3-5 seconds to
activate this feature. A green light will appear above the Touch Pad. Push the Touch
Q
again for 3-5
seconds to deactivate.
Press the CUBE Touch Padtto
get cubed ice. A green light will appear above the Touch Pad. Press glass
against ICE dispensing
padd e'_" O
as far up as possible to catch all ice.
Press the CRUSH Touch Pad@to
get crushed ice. A green light will appear above the Touch Pad. Press glass
against ICE dispensing
paddle u
as far up as possible to catch all ice.
Press the LIGHT Touch Pad O
to turn on dispenser light. The light also turns on automatically
when ice and/or
water is dispensed. Replace hg" h t bulb with an appliance bulb of the same wattage.
The FILTER RESET indicator light above the Touch Pad O
will light up each time the dispenser is used. The
following filter light indications are:
Green
The filter is still operating within its specified
life cycle.
Amber
The filter has reached approximately
80% of its useful life. This is the recommended
time to
purchase a replacement
filter.
Red
] The filter is 100% used up. Change the filter as soon as possible.
After the filter cartridge has been changed, press and hold the FILTER RESET Touch Pad O
for 10-15 seconds.
NOTE: The Green, Bed, and Amber
lights will flash when reset is completed.
LOCK
The Ice & Water Dispenser can be locked
out to prevent unwanted use.
To Lock Out
Press the LOCK Touch Pad O
for 3-5 seconds. A Red light will appear above the Touch Pad.
To Unlock
Press the LOCK Touch Pad Q
for 3-5 second until the Bed light above the Touch Pad goes
out.
WATER
To operate the water dispenser, press a glass against_e
WATER dispensing
paddle O"
To stop dispensing
water, pull the glass away from the dispensing
paddle U
" Dispensed water is not celdTFor colder water, add
crushed
ice or cubes before dispensing
water.
A drip tray located at the base of the dispenser
catches small
spills and allows them to evaporate. This drip tray is removable
and dishwasher
safe. Do not pour water and
excess ice in this area because there is no drain.
14
