Pure sine wave inverters

Advertisement

Pure Sine Wave Inverters
R-12-350S/R-24-350S
R-12-700S/R-24-700S
R-12-1000S/R-24-1000S
R-12-1500S/R-24-1500S
R-12-2000S/R-24-2000S
R-12-3000S/R-24-3000S

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the R-12-350S and is the answer not in the manual?

Questions and answers

Summary of Contents for Redarc R-12-350S

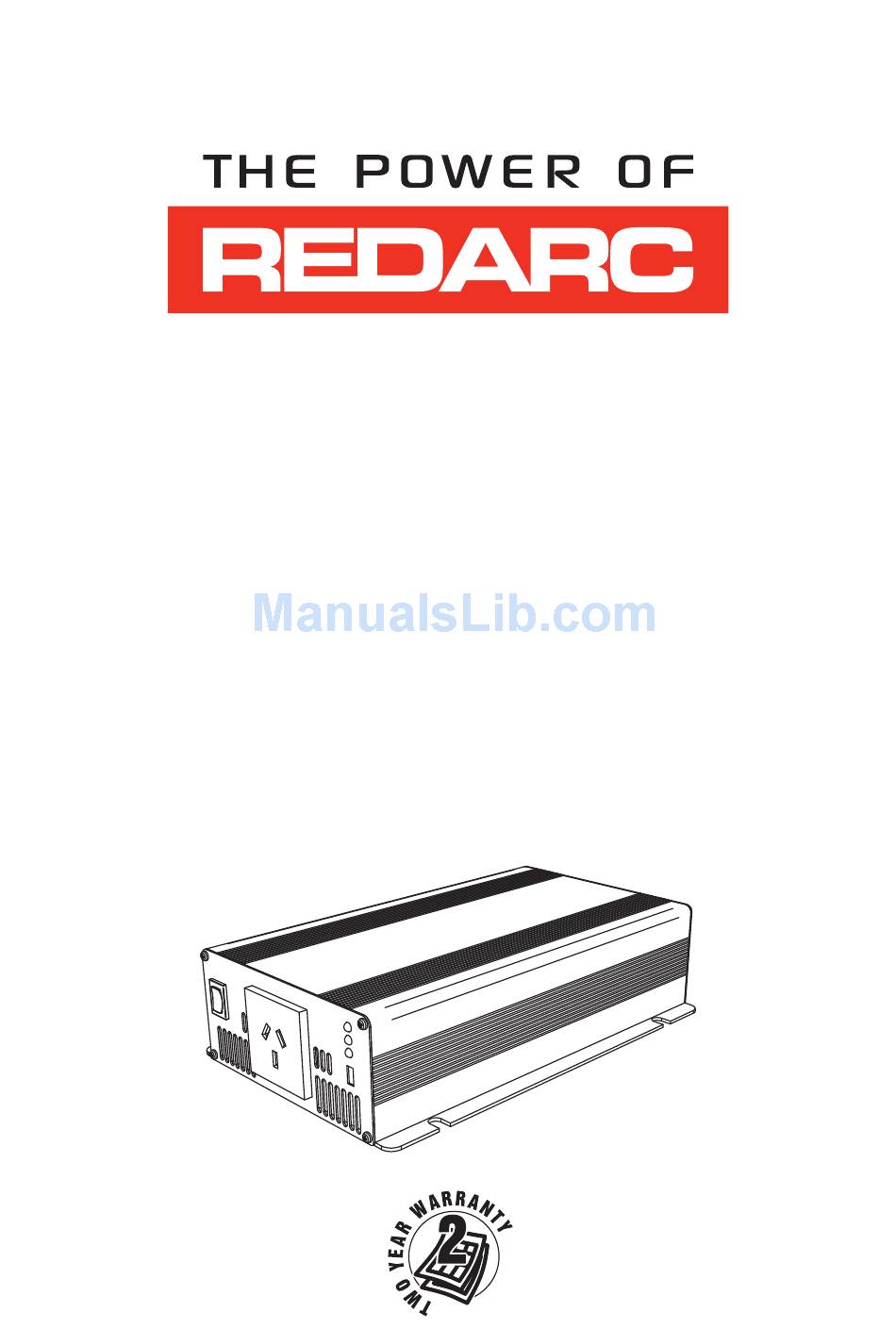

  • Page 1 Pure Sine Wave Inverters R-12-350S/R-24-350S R-12-700S/R-24-700S R-12-1000S/R-24-1000S R-12-1500S/R-24-1500S R-12-2000S/R-24-2000S R-12-3000S/R-24-3000S...
  • Page 2: Warnings And Safety Instructions

    REDARC PURE SINE INVERTERS REDARC Pure Sine Wave Inverters produce a pure sine wave output. This means that the power output from a REDARC Pure Sine Wave Inverter is not only the same as the mains supply... it’s often better! WARNING &...
  • Page 3: Table Of Contents

    CONTENTS Table of Contents Page Warnings and Safety Instructions Contents 1 Introduction 1. 12V Specifi cations 2. 24V Specifi cations 3. Dimensions 2 USER Guide 1. Front Panel Operation 1. Front Panel View 2. On/Off/Remote Switch (700W - 3000W) 3. Input Level LED Display (700W - 3000W) 4.
  • Page 4: Introduction

    INTRODUCTION 12V Specifi cations Specifi cation R-12-350S R-12-700S R-12-1000S R-12-1500S R-12-2000S R-12-3000S Output Power (Cont.) 350W 700W 1000W 1500W 2000W 3000W Output Power (Max.) 385W 770W 1100W 1650W 2200W 3300W Surge Rating (Max.) 700W 1400W 2000W 3000W 4000W 6000W Input Voltage (Nom.) Input Voltage (Min.)
  • Page 5: Specifi Cations

    INTRODUCTION 24V Specifi cations Specifi cation R-24-350S R-24-700S R-24-1000S R-24-1500S R-24-2000S R-24-3000S Output Power (Cont.) 350W 700W 1000W 1500W 2000W 3000W Output Power (Max.) 385W 770W 1100W 1650W 2200W 3300W Surge Rating (Max.) 700W 1400W 2000W 3000W 4000W 6000W Input Voltage (Nom.) Input Voltage (Min.) 21.0V 21.0V...
  • Page 6: Dimensions

    INTRODUCTION Dimensions Dimension 350S 700S 1000S 1500S 2000S 3000S 180mm 270mm 340mm 370mm 370mm 400mm 125mm 150mm 150mm 160mm 180mm 180mm 60mm 70mm 85mm 85mm 165mm 165mm 145mm 175mm 180mm 190mm 210mm 210mm 132mm 195mm 195mm 195mm 245mm 245mm 135mm 160mm 165mm 175mm...
  • Page 7: User Guide

    USER GUIDE The Redarc pure sine wave power inverter series is one of the most advanced mobile AC power systems available. For ideal operation of the power inverter, it must be installed and used properly. Please read this instruction manual before you install and operate your inverter.
  • Page 8: On/Off/Remote Switch (700W - 3000W)

    USER GUIDE 2.1.2 On/Off/Remote Switch (700W - 3000W) This switch acts as an On - Off switch and can also set the unit to remote mode allowing the On - Off functionality to be performed by either the CR-6 or CR-8 remote control. Usage: Before installing the inverter, you need to ensure the main switch is set to “OFF”.
  • Page 9: Status Led Displayc (All Models)

    USER GUIDE 2.1.5 Status LED Display (All Models) The Status LED will display Power and Fault Status for the inverter using this sequence of fl ashes and colours on the LED. GREEN LED LED Signal Status Power OK Solid Power Saving** Slow Blink RED LED LED Signal...
  • Page 10: Ac Frequency Setting (All Models)

    USER GUIDE 2.1.7 AC Frequency Setting (All Models) This switch will set the output AC Frequency to either 50Hz or 60Hz. For 700W to 3000W models S4 on the DIP switch is the AC Frequency setting. Frequency Switch 50Hz 60Hz Rear Panel Operations 2.2.1 Rear Panel View On/Off/Rem.
  • Page 11: On/Off/Remote Switch (350W Only)

    LOW: Inverter Off 2.2.3 Remote Port (700W - 3000W) Redarc 700W to 3000W inverters are compatible with the CR-6 & CR-8 remote controls. Before using the remote unit, you need to ensure the main switch is in the “REMOTE” position and the input voltage of the power inverter is the same as the remote unit.
  • Page 12: Dc Input Terminal (All Models)

    USER GUIDE 2.2.5 DC Input Terminal (All Models) • Connect DC input terminal to 12V / 24V battery or the other power sources. • POS(+) represents positive, and NEG(-) represents negative. • The Inverter is protected against reverse polarity connection using an internal fuse. DC Input Voltage Model Minimum...
  • Page 13: Installation Guide

    INSTALLATION Mounting The power inverter should be installed in an environment that meets the following requirements: 1. Dry – Do not allow water to drip on or enter into the inverter. 2. Cool – Ambient air temperature should be between 0°C and 40°C, the cooler the better. 3.
  • Page 14: Dc Cable Size

    INSTALLATION 3.2.1 DC Cable Size The tables below give the recommended cable/conductor cross-sectional area (mm²), and recommended B & S size for a required current across a particular distance. In this case the distance is between the battery and the inverter. It is recommended to choose a cable size close to but larger than required.
  • Page 15: Wiring Diagrams

    INSTALLATION Wiring Diagrams Fuse or Circuit Breaker 350W Models Battery Fuse or Circuit Breaker 700W, 1000W & 1500W Models Battery Fuse or Circuit Breaker 2000W & 3000W Models Battery...
  • Page 16: Dc Cable Connection (700W - 3000W)

    INSTALLATION DC Cable Connection (700W - 3000W) 3.4.1 700W - 1500W DC Connection method M8 Screw PVC Wire Ring Terminal 3.4.2 2000W - 3000W DC Connection method M8 Nut Spring Washer Washer Ring Terminal PVC Wire Plastic Cover Plastic Cover (Black) (Black)
  • Page 17: Ac Safety Grounding

    Residual Current Devices (RCD) Certain installation codes and/or government regulations require the installation of a RCD. Redarc has tested a number of commercially available RCDs and found that they functioned properly when connected to the output of the Inverter. NOTE: The AC output ground wire should go to the grounding point for your loads (for example, a distribution panel ground bus).
  • Page 18: Troubleshooting

    TROUBLESHOOTING Problem or Symptoms Possible Cause Solutions NO AC power output & Check input voltage, ensure Over voltage on the Status LED is RED and that input is below 14.3V input (OVP) Blinking Fast (28.8V on 24V) NO AC power output & Check input voltage, ensure Low input voltage Status LED is RED and...
  • Page 19: Two Year Warranty

    ”) offers a warranty in respect of its Products where the Products are purchased from an authorised distributor or reseller of Redarc by a person (“ where the Products are purchased from an authorised distributor or reseller of Redarc by a person (“Purchaser Purchaser”), on the terms and...
  • Page 20 Free technical assistance! please contact Redarc Electronics 23 Brodie Road North, Lonsdale SA (08) 8322 4848 power@redarc.com.au www.redarc.com.au Copyright © 2012 Redarc Electronics Pty Ltd. All rights reserved. WARPSINV - REV1 www.redarc.com.au...
