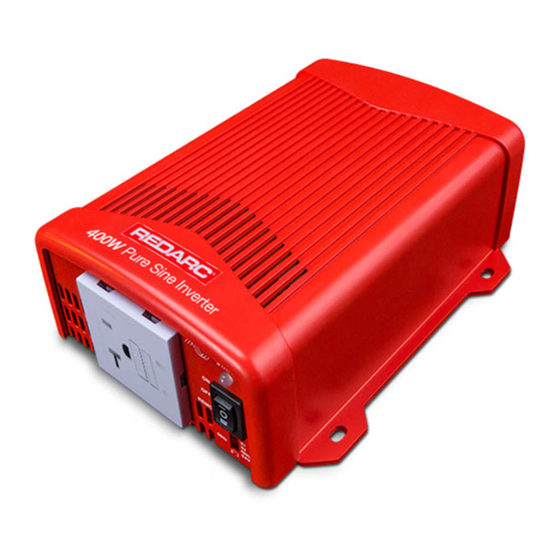

REDARC Pure Sine Wave Inverters produce a pure sine wave output. This means that the power output from a REDARC Pure Sine Wave Inverter is not only the same as the mains supply, it’s often better. The R-12-400RS-NA inverter is compliant for residential and industrial applications.
Page 3
Attempting to use appliances that requires an AC frequency different to the inverter output may result in damage to your appliances. Output AC frequency is dip switch selectable, see section 2.1.2 (page 7). • All RS Series Inverters are suitable for indoor use only.
CONTENTS RS SERIES INVERTERS (400 W) WARNINGS AND SAFETY INSTRUCTIONS INTRODUCTION Specifications ��������������������������������������������������������������������������������������������������������������4 Dimensions ������������������������������������������������������������������������������������������������������������������5 Voltage and Temperature Performance ���������������������������������������������������������������������������6 USER GUIDE Front Panel Operation����������������������������������������������������������������������������������������������������7 Main Switch ������������������������������������������������������������������������������������������������������������7 2.1.1 Function Switch ��������������������������������������������������������������������������������������������������������7 2.1.2 Indicator LED ������������������������������������������������������������������������������������������������������������8 2.1.3 Rear panel operation �����������������������������������������������������������������������������������������������������9 Chassis Ground ���������������������������������������������������������������������������������������������������������9...
INTRODUCTION Specifications Model R-12-400RS-NA Max. Rated Input Current 45 A Voltage 12 V DC Over-Voltage Protection 16.0 ± 0.3 V DC Input Characteristics Under-Voltage Protection 10.5 ± 0.3 V DC Voltage Range 10.5 ~ 16.0 V DC No Load Current ≤ 1 A @ 12 V DC Power Saving Mode < 0.2 A @ 12 V DC Continuous Output Power 400 W (VA) (± 3%) Maximum output Power (1 min) > 400 ~ 460 W (VA) (100% ~ 115%)
INTRODUCTION Voltage and Temperature Performance 200% 1 Sec 115% 1 Min 110% Continue 10.5V Voltage (V) FIGURE 1.3.1: 400RS-NA Voltage Performance 95 104 113 122 131 140 (40) (60) Temperature ˚F (˚C) FIGURE 1.3.2: 400RS-NA Temperature Performance...
USER GUIDE Front Panel Operation The R-12-400RS-NA is member of the most advanced line of mobile AC power systems available. To get the most out of the power inverter, it must be installed and used properly. Please read the instructions in this manual before installation and operating.
USER GUIDE Output Voltage: Output Voltage (V) Switch 1 Switch 2 Output Frequency: Frequency (Hz) Switch 3 Power Saving: Power Saving Mode Switch 4 Power Saving Mode Behaviour: Model Sleep Power Wake Up Power R-12-400RS-NA <20 W (VA) >30 W (VA) 2.1.3 Indicator LED Status LED Signal Remedies...
USER GUIDE Rear panel operation Chassis Ground Remote Port (RJ-11) Remote Control Green Terminal DC Input Connection 2.2.1 Chassis Ground Use 16 AWG (1.5 mm²) or a thicker cable to connect the vehicle earth or chassis ground. Perform this connection prior to any other connection. 2.2.2 Remote Port (RJ-11) The R-12-400RS-NA inverter can be used with the REMOTE-RS remote controls.
USER GUIDE Switch closed:INV. Switch open:INV. Switch closed:INV. Switch open:INV. BAT+ BAT– + DC Switch closed:INV. – POWER Switch open:INV. FIGURE 2.2.1: Wiring configurations for Remote Control Green Terminal NOTICE • Before Installing - Make sure that the inverter main switch is at “OFF” position (see section 2.1.1). •...
INSTALLATION Mounting The power inverter should be used in an environment that meets the following requirements: 1. Dry — Do not allow water to drip on or enter into the inverter. 2. Cool — Ambient air temperature should be between 32°F (0°C) and 104°F (40°C), the cooler the better.
INSTALLATION Ventilation Fan The fan is load and temperature controlled and will engage when the AC Power Consumption reaches a certain level and when the unit gets hot. Ensure that the fan is not obstructed and is at a distance of at least 0.98”...
INSTALLATION Check Cable and Fuse size Make sure to use suitably rated cables and fuses for your installation, refer to Section 2.2.4 (page 10) for more information. NOTICE Use suitably rated cable as per section 2.2.4 (page 10). A cable below the recommended rated length will result in an increased voltage drop when the inverter is under load, which will ultimately effect the inverters performance.
INSTALLATION DC Wiring Connections Before inserting DC cables, remove the bolts with attached washers in the terminal a. Insert the crimped/terminated DC cable lugs into the input terminals, ensuring that the DC cables are connected into the correct terminal, positive (+) DC cable into positive terminal and negative (−) DC cable into the negative terminal.
INSTALLATION Turning The Inverter On 3.8.1 Switch Controls With the DC cables and Chassis Ground point correctly installed the switch on the inverter can be turned ON to the single line side. The second ON switch is to be used ONLY when controlling the inverter from two locations 3.8.2 LEDs and Connecting AC The LED will illuminate green once switching the inverter on.
Page 17
COMPLIANCE This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference 2. This device must accept any interference that may cause undesired operation Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
Page 20
Standard Time, Monday to Friday, or send us an email. North America power@redarcelectronics.com www.redarcelectronics.com Australia (and other Global regions) power@redarc.com.au www.redarc.com.au 1300 REDARC (1300 733 272) New Zealand power@redarcelectronics.co.nz www.redarcelectronics.co.nz +64 9 222 1024 United States +1 (704) 247 5150...
