Initial Setup; Electrical - Perlick DC90ACLT Installation And Operation Instructions Manual

Preparing the Cabinet for use –
ArctiCold Draft Dispenser
Uncrating and Inspection
Remove all crating material before operating.
Carefully inspect cabinet for hidden damage. If
damage is discovered, file your claim immediately.
Perlick is not responsible for damage in transit.
Ensure that the unit is on a level surface and that
the brakes on the casters are engaged. It is impor-
tant that the unit is unobstructed on all sides to
provide adequate ventilation for the refrigeration
decks. Blocking the ventilation louvers may
damage the compressor and void the warranty.
Remove the bottom front grille to access the
machine compartment. Connect the power cord
to a separate dedicated circuit as described in
the electrical section of this manual. Turn on the
rocker switch labeled "circulating pump" and
check for glycol leaks. Next, turn on the rocker
switch labeled "condensing unit". The flash chill
heat exchangers and evaporator coil circuit will pull
down to operating temperature in less than 1 hour
in most conditions.

Electrical

The power cord is a 15 amp cord that requires
115 VAC, 60Hz, and 1 phase electricity. Refer to
the wiring diagram included in this manual for a
detailed schematic.
WARNING: Always disconnect power cord
before servicing.
Perlick is committed to continuous improvement. Therefore, we reserve the right to change specifications without prior notice.

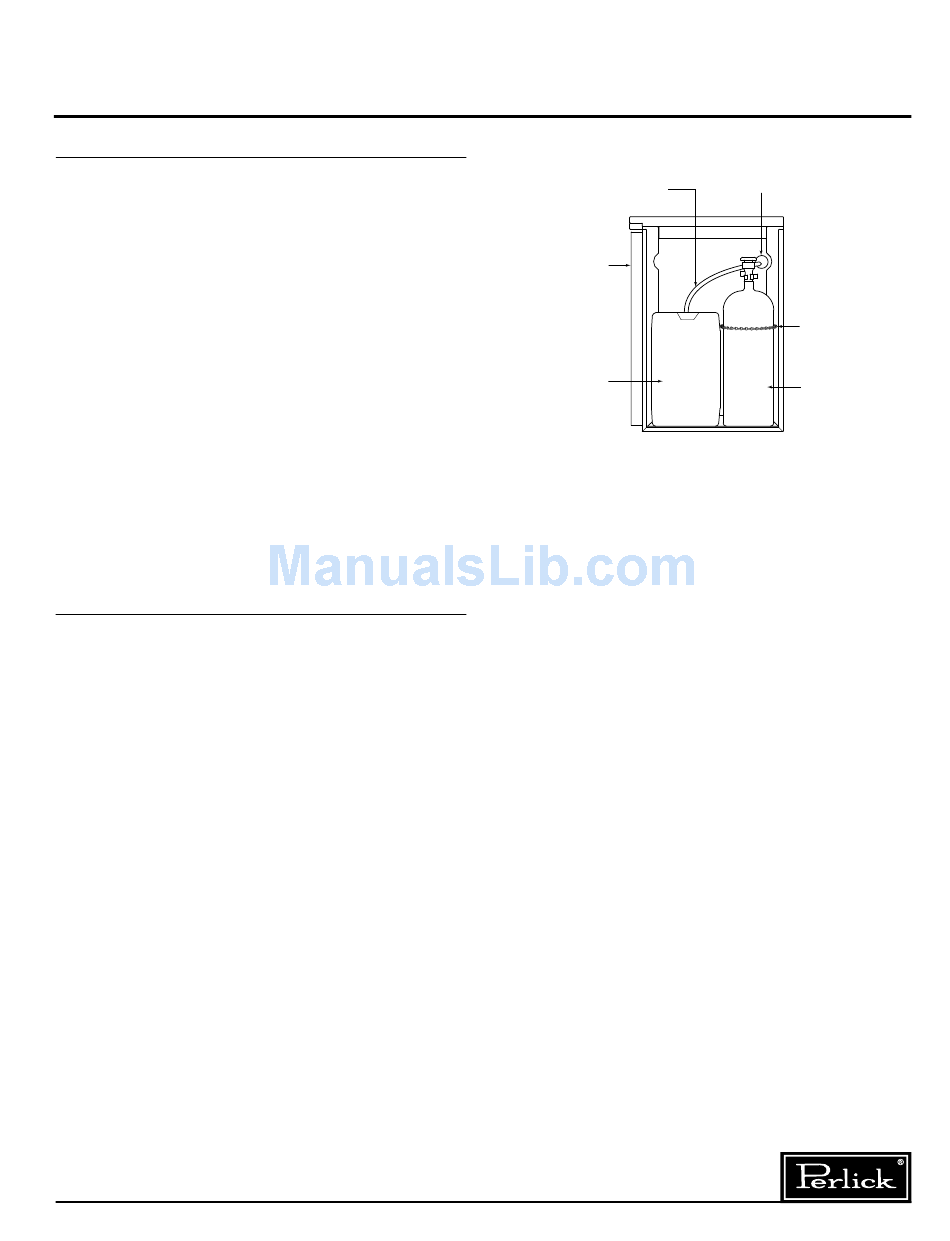

DRAIN TUBE
FROM
DRAINER
DUMP TANK
CO CYLINDER
2
ACCESS DOOR
REMOVABLE
DUMP TANK
3
CABINET
ACCESS
HOLE
CHAIN FOR
SECURING
CO CYLINDER
2
CO TANK
2
(Must Be Secured
When Moving
Cabinet)
Form No. Z2323
Rev. 06.26.10
