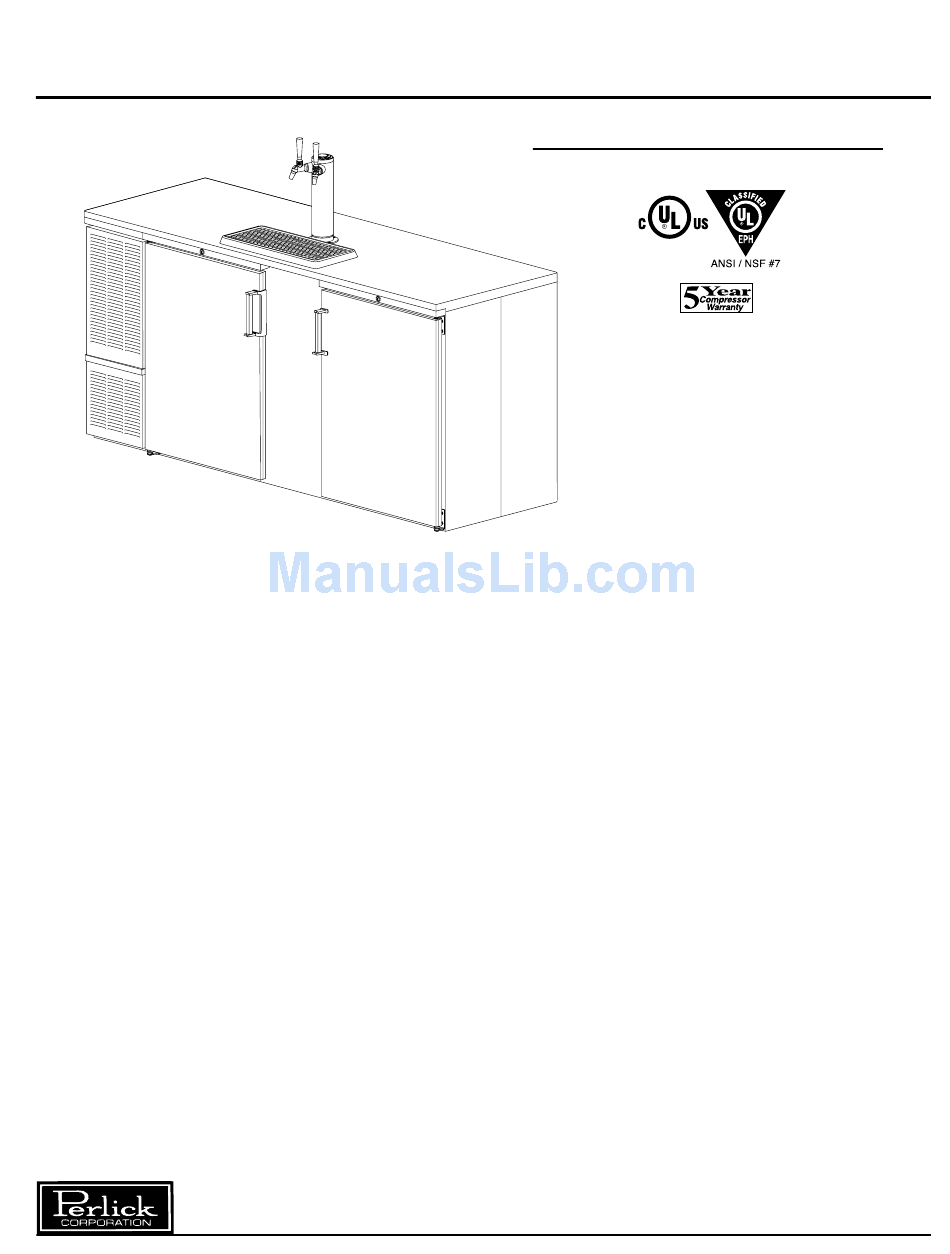

INSTALLATION AND OPERATION INSTRUCTIONS
DIRECT DRAW DISPENSER - SELF-CONTAINED MODELS
IMPORTANT INFORMATION
Fill out the enclosed warranty card and mail to the
Perlick Corporation to register the warranty. If the
card is not returned, the warranty period will begin
from the date the equipment is shipped from the
factory.
This manual has been prepared to assist you in the
installation of your Direct Draw Dispenser and to
acquaint you with its operation and maintenance.
We dedicate considerable time to ensure that our
products provide the highest level of customer
satisfaction. If service is required, your dealer can
provide you with a list of qualified service agents. For
your own protection, never return merchandise for
credit without our approval.
We thank you for selecting a Perlick product and
assure you of our continuing interest in your
satisfaction.
WARNING: When lifting, the full weight of the
cabinet must be supported. Lift from the cabinet
base and not from the top. Improper lifting can
result in severe damage to the cabinet.
8300 West Good Hope Road • Milwaukee, WI 53223 • Phone 414-353-7060 • Fax 414-353-7069
Toll Free 800-558-5592 • E-Mail: Perlick@Perlick.com • www.Perlick.com
MODEL NOS.
DS Series
Table of Contents
PREPARING THE CABINET FOR USE
Specifications.........................................................2
List of Included Parts.............................................3
Tools Required.......................................................3
Plumbing................................................................3
Electrical ................................................................3
Installing Casters or Legs......................................3
Installing Faucet and Dispensing Head.................3
TAPPING
Connecting the Keg Coupler .................................4
Tapping the Keg.....................................................4
Connecting the Regulator......................................5
Adjusting Gas Flow................................................5
Leak Test .......................................................5
2
Gas Cylinder..............................5
2
Gas .................................................5
2
Beer Temperature ..................................................6
Refrigeration and Temperature Control .................6
CLEANING
Cleaning the Beer Lines ........................................7
Cleaning the Cabinet .............................................7
How to Pour a Perfect Glass of Beer ....................8
Troubleshooting .....................................................9
Beer Facts .............................................................9
REPLACEMENT PARTS ................................10-11
Wiring Diagram....................................................12
Form No. Z2280
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Perlick DP32
Summary of Contents for Perlick DP32
-
Page 1: Table Of Contents
For your own protection, never return merchandise for credit without our approval. We thank you for selecting a Perlick product and assure you of our continuing interest in your satisfaction. WARNING: When lifting, the full weight of the cabinet must be supported. -
Page 2: Specifications
56” [1492] 3 KEG 44” [1118] 2 KEG 6 5/16” [161] 23 1/2” [597] OPENING Perlick is committed to continuous improvement. Therefore, we reserve the right to change specifications without prior notice. Form No. Z2280 MODEL NUMBERS DS60B DS60S SPECIFICATIONS 2 Keg 60”... -
Page 3: Preparing The Cabinet For Use
Before you begin: Wash tapping devices and faucet. Flush beer, tapping device and faucet lines with fresh water. Perlick is committed to continuous improvement. Therefore, we reserve the right to change specifications without prior notice. – Direct Draw Dispensers Self-Contained Apply RTV around the base of the dispensing head to seal it to the top. -
Page 4: Connecting The Keg Coupler
CAUTION: Do not use keg coupler as a handle to lift keg. Perlick is committed to continuous improvement. Therefore, we reserve the right to change specifications without prior notice. Form No. Z2280 Direct Draw Dispensers Self-Contained Tapping a Single Valve Keg... -
Page 5: Connecting The Regulator
Dilute a small amount of liquid dishwashing soap and rub the soapy mixture around each connection. If bubbles appear, tighten connection. Perlick is committed to continuous improvement. Therefore, we reserve the right to change specifications without prior notice. Direct Draw Dispensers Self-Contained Replacing CO... -
Page 6: Temperature
36-41 degrees F. The control is factory set at 38 degrees F. Perlick is committed to continuous improvement. Therefore, we reserve the right to change specifications without prior notice. Form No. Z2280 Direct Draw Dispensers Self-Contained At temperatures lower than 30°... -
Page 7: Cleaning The Beer System
The beer faucet may exhibit a white colored substance (yeast build up) if not cleaned on a regular basis. Perlick is committed to continuous improvement. Therefore, we reserve the right to change specifications without prior notice. Direct Draw Dispensers Self-Contained Beer Stone: All beer contains calcium which is present from the grains used in the brewing process. -
Page 8: General Information How To Pour A Perfect Glass Of Beer
Pouring a Perfect Glass of Beer – Perlick is committed to continuous improvement. Therefore, we reserve the right to change specifications without prior notice. Form No. Z2280 Direct Draw Dispensers STEP 1 Start with a clean glass. Place the glass at a 45°... -
Page 9: Troubleshooting
(sticking) check valve. Sluggish CO regulator. Perlick is committed to continuous improvement. Therefore, we reserve the right to change specifications without prior notice. Direct Draw Dispensers Self-Contained Cloudy Beer: Beer in glass appears hazy, not clear. AUSES Dirty glass. -
Page 10: Replacement Parts
Hinge pin Hinge assembly, cabinet left side Hinge assembly, cabinet right side Replacement door Perlick is committed to continuous improvement. Therefore, we reserve the right to change specifications without prior notice. Form No. Z2280 Direct Draw Dispensers Self-Contained DS60B DS72B... -
Page 11: Replacement Parts
57F2P ...CO tank washer 1392R ...Red air hose 529 ...Beer hose 2928D ...Twin gauge CO regulator Perlick is committed to continuous improvement. Therefore, we reserve the right to change specifications without prior notice. Direct Draw Dispensers Self-Contained Form No. Z2280... -
Page 12: Wiring Diagram
8300 West Good Hope Road • Milwaukee, WI 53223 • Phone 414-353-7060 • Fax 414-353-7069 Toll Free 800-558-5592 • E-Mail: Perlick@Perlick.com • www.Perlick.com Perlick is committed to continuous improvement. Therefore, we reserve the right to change specifications without prior notice. Form No. Z2280...
