Pro-Form PERSPECTIVE ES User Manual page 9

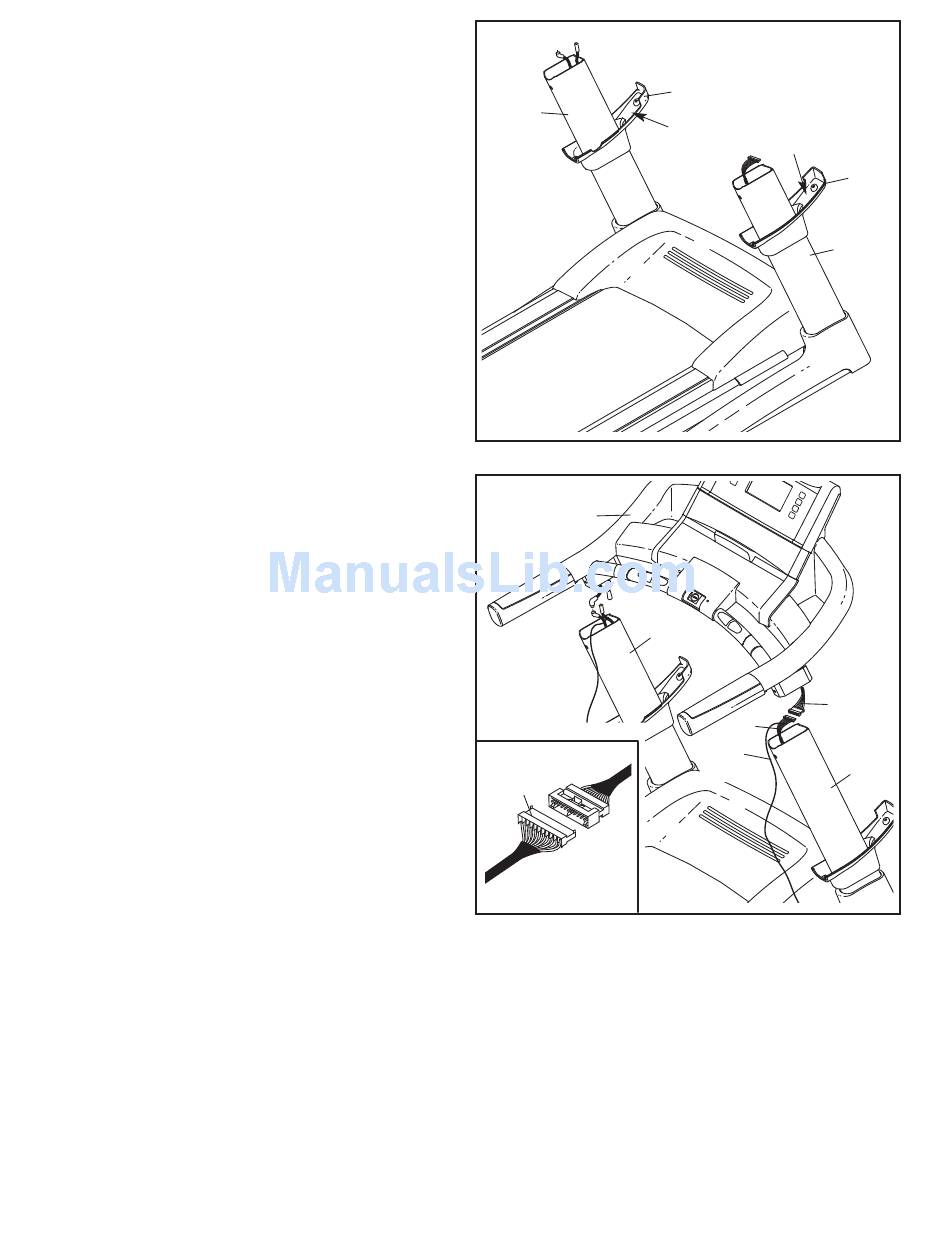

4. Identify the Right Upright Sleeve (96) and the
Left Upright Sleeve (95); the Upright Sleeves
are labeled. Slide the Right Upright Sleeve onto
the Right Upright (74) and the Left Upright
Sleeve onto the Left Upright (73).
5. With the help of a second person, hold the con-
sole assembly near the Uprights (73, 74).
Connect the Upright Wire Harness (75) to the
Console Wire Harness (71). See the inset draw-
ing. The connectors should slide together
easily and snap into place. If they do not, turn
one connector and try again. IF THE CONNEC-
TORS ARE NOT CONNECTED PROPERLY,
THE CONSOLE MAY BE DAMAGED WHEN
THE POWER IS TURNED ON. Remove the wire
tie from the Upright Wire Harness. Insert the con-
nectors down into Right Upright (74).
4
73
5
Console
Assembly
75
9
95
"Left"
"Right"
73
71
75
Wire
Tie
96
74
74
