Pro-Form PERSPECTIVE ES User Manual page 13

Before operating the television, you must connect an antenna or a 75 ohm CATV cable to the 75 ohm ter-
minal or the AV wire to the audio/video input jack. Note: Use a CATV cable to connect to an external source
such as a cable box, satellite TV box, VCR, or analog cable. No CATV cable, antenna, or adapter is included.

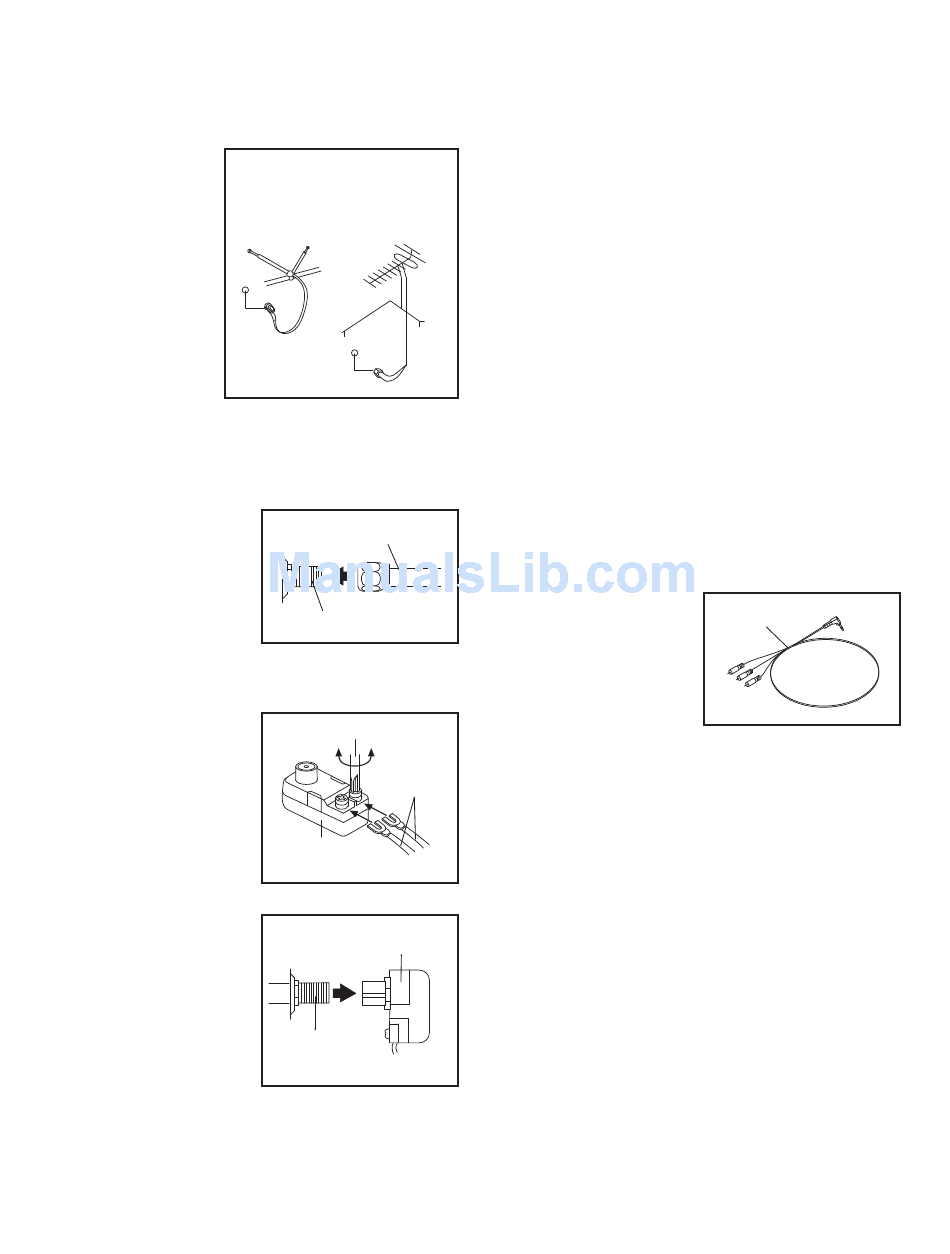

HOW TO CONNECT AN ANTENNA
Place an indoor
VHF antenna or an
outdoor combina-
tion VHF/UHF an-
tenna in the desired
location. Outdoor
antennas are sub-
ject to weathering
that can reduce sig-
nal quality. Inspect
your outdoor an-
tenna and the lead-
in wiring before
connecting the an-
tenna.
75 Ohm CATV Cable
1. Connect the 75 ohm
CATV cable from the
antenna to the 75
ohm terminal on the
treadmill frame near
the power cord.
300 Ohm Flat Wire
1. Connect the 300
ohm flat wire from
the antenna to a 300
ohm to 75 ohm
adapter.
2. Push the 300 ohm to
75 ohm adapter onto
the 75 ohm terminal
on the treadmill
frame near the power
cord.
Indoor Oudoor
Combination
VHF
Antenna VHF/UHF
Antenna
75 Ohm CATV Cable
75 Ohm Terminal
Screwdriver
300
Ohm Flat
Wire
300 to 75
Ohm Adapter
300 to 75 Ohm Adapter
75 Ohm
Terminal
Note: Due to an FCC requirement, analog signals will
no longer be broadcast over the air after February 17,
2009. If you wish to view television signals through an
antenna after that date, you must have an antenna ca-
pable of receiving digital signals. Cable television will
not be affected.
HOW TO CONNECT AN EXTERNAL SOURCE
USING A CATV CABLE
1. Connect one end of a 75 ohm CATV cable to the
75 ohm output jack on your external source.
2. Plug in the power cord of your external source.
See your external source userʼs manual for proper
grounding instructions.
3. Connect the 75 ohm CATV cable to the 75 ohm
terminal on the treadmill frame near the power
cord. See the drawing at the left.
HOW TO CONNECT A VCR OR DVD PLAYER
USING THE AV WIRE
1. Connect the three-
pronged end of the
AV Wire (88) to your
VCR or DVD player.
2. Plug in the power cord of your VCR or DVD player.
See your VCR or DVD player userʼs manual for
proper grounding instructions.
3. Connect the AV Wire to the audio/video input jack
on the treadmill frame near the power cord.
13
88
