Digital Projection HIGHlite 660 Series Installation Manual page 46

Digital Projection
HIGHlite 660 Series
Geometry Engine (continued)
Keystone settings
Projector to the left
1
The projector is positioned
to the left of the screen.
To correct, apply a positive
value using
H Keystone
the RIGHT arrow button.
Projector to the right
2
The projector is positioned
to the right of the screen.
To correct, apply a negative
H Keystone value using
the LEFT arrow button.
Projector high
3
The projector is positioned
above the screen at a
downward angle.
To correct, apply a negative
V Keystone value using
the arrow button.
LEFT
Projector low
4
The projector is positioned
below the screen at an
upward angle.
To correct, apply a positive
value using
V Keystone
the RIGHT arrow button.
Projector straight
5
The projector is directly
opposite the screen at a
right angle both horizontally
and vertically.
No correction is needed.
Rev G July 2014
USING THE PROJECTOR
1
3 4

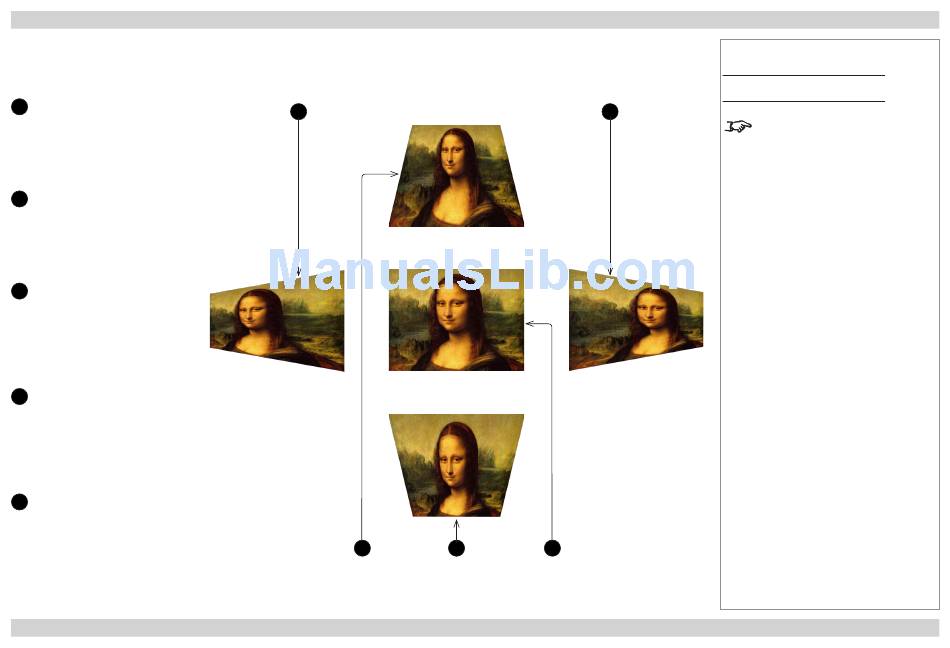

Horizontal and vertical keystone corrections
Main Menu
2
5
Operating Guide
Notes
Geometry
If possible, position the projector
facing the screen at a right angle to
avoid geometry corrections.
38
