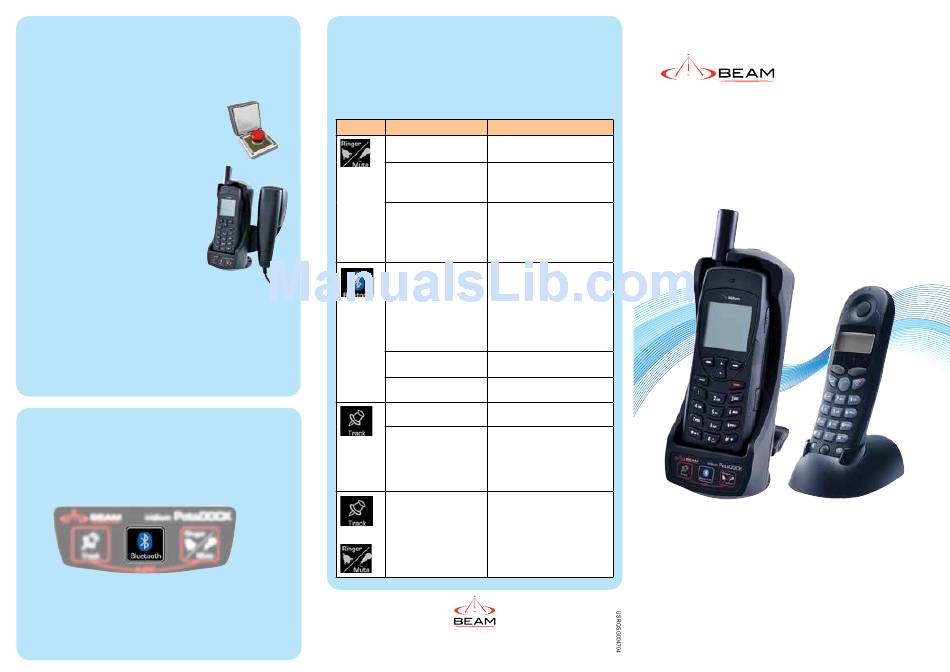

Beam iridium PotsDOCK 9555 Quick Start Manual

4. Options
Tracking & Alert:
Tracking & Alert requires GPS antenna, and setup of the tracking and/or
alerting messages. Please refer to the PDMS Application (PotsDOCK
Management System) to enable and configure Tracking & Alert.
External Alert Button:
Connect Normally-CLOSED button, to the Brown
and Green wires (it can be extended for longer runs).
The loop needs to be OPEN (eg. pressing button) for
2 seconds to activate Alert state.
Privacy Handset:
1. The Privacy Handset Kit is ordered separately.
2. Mount the handset cup to the mounting plate.
3. Mount the spacer plate and the mounting
bracket, by using the longer screws provided
with the kit. (Re-installed the RAM arm-bracket
behind these plates).
4. Connect the Privacy Handset 3.5mm plug into
the rear cable jack.
5. Privacy Handset mode is active whenever the
handset is removed from the cup.
Earpiece-Jack Mode:
Use a 2.5mm earpiece plugged into the right side of the 9555 handset.
1. During a RJ11 or Bluetooth call, to enable Earpiece-Jack Mode, press and
hold the Mute button for 1.5 seconds. The LED flashes Orange.
2. To exit Earpiece-Jack Mode and revert to RJ11 or Bluetooth, press the Mute
button once.
5. Add Bluetooth Device
AUDIO: To configure (pair) to a Bluetooth® headset device:
1. Discovery Mode: Press and hold for 5 secs the Bluetooth® button on
the cradle. The LED flashes Blue and Orange .
2. Hold the Headset device button(s) to enter pairing mode.
3. Once paired, the Bluetooth® LED is Blue (half intensity).
4. Bluetooth® can be turned ON with a single press, and OFF by press for
2 secs the Bluetooth® button on the cradle.
6. Using PotsDOCK 9555
• After applying power to AC power adaptor or turning key/Acc on, the
PotsDOCK will beep upon power up
• Wait for phone to power up and register
PANEL BUTTONS AND INDICATORS:
BUTTON
Out of Call:
Select Ringer Tones
During In-Call RJ11 or
Bluetooth®:
Mute (single press)
During In-Call RJ11 or
Bluetooth®:
Earpiece-jack
(1.5 seconds press)
Subsequent single press, exits
Earpiece-jack
Bluetooth® On
(single press)
Bluetooth® OFF
(1.5 seconds press)
Discovery Mode
(5 seconds press)
Clear Bluetooth® Devices
(10 seconds press)
Send Tracking Message
(single press)
(optional)
Clear Alert Mode
(7 seconds press)
Activate Alert Mode
(2 seconds press, BOTH
buttons together)
+
TEL: +61 3 8588 4500
BUTTON MODE LED/SOUND
LED off.
Preview and select ringer sounds.
LED is RED when MUTE.
LED flashes ORANGE.
LED is BLUE (half intensity) when
Bluetooth® ON and is connected
LED is fast-flashing in BLUE when
searching paired device.
LED is slow-flashing BLUE when a
connected Bluetooth® device is in use.
Single beep sounds when Bluetooth®
turning OFF.
LED flashes ORANGE and BLUE.
Ringer sounds double (2) beeps.
Ringer sounds triple (3) beeps.
LED and beep operates according to
the settings in PDMS.
LED turns GREEN re-armed & GPS fix
ready. Single Beep sounds.
If LED is flashing in GREEN – No GPS
fix, or no Iridium signal
LED is OFF when Track & Alert is
disabled.
Track LED turns RED when alert is
triggered and single beep sounds.
Track LED is flashing in RED when the
alert message is sent.
Track LED is flashing in ORANGE
when the alert message is
acknowledged by a remote host.
www.beamcommunications.com
info@beamcommunications.com
FAX: +61 3 9560 9055

QUICK START GUIDE

iridium PotsDOCK 9555
Suitable for the Iridium 9555
Portable Satellite Telephone
Beam Communications Pty Ltd
