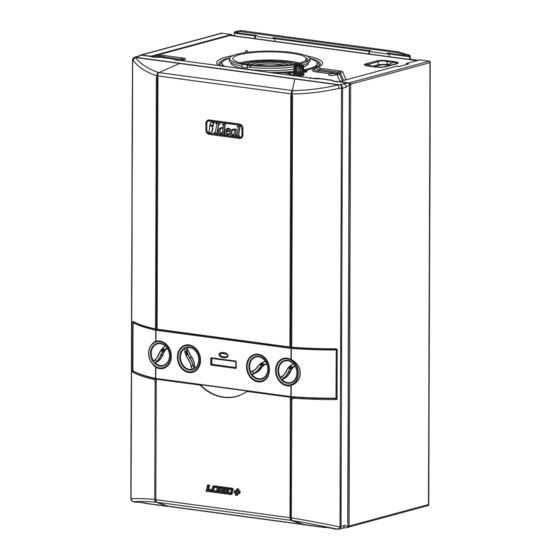

IDEAL Logic+ Combi 24 User Manual

Natural gas
Hide thumbs Also See for Logic+ Combi 24:

Advertisement

USERS GUIDE

LOGIC+ Combi
24, 30, 35
When replacing any part on this appliance, use only spare parts that you can be
assured conform to the safety and performance specification that we require.
Do not use reconditioned or copy parts that have not been clearly authorised by Ideal.

Advertisement

Table of Contents
loading

Summary of Contents for IDEAL Logic+ Combi 24

  • Page 1: Users Guide

    When replacing any part on this appliance, use only spare parts that you can be assured conform to the safety and performance specification that we require. Do not use reconditioned or copy parts that have not been clearly authorised by Ideal.
  • Page 3: Natural Gas Only

    G.C. Appliance No. 47-348-67 Ideal Stelrad Group is a member of the Benchmark scheme and fully supports the aims of the programme. Benchmark has been introduced to improve the standards of installation and commissioning of central heating systems in the UK and to encourage the regular servicing of all central heating systems to ensure safety and efficiency.
  • Page 4 FOR ANY QUERIES PLEASE RING THE IDEAL CONSUMER HELPLINE : 01482 498660 NOTE. BOILER RESET PROCEDURE - To reset boiler, turn mode knob to reset position and immediately turn knob back to required setting. The boiler will repeat the ignition sequence.
  • Page 5: Electricity Supply

    ELECTRICITY SUPPLY This appliance must be earthed. Supply: 230 V ~ 50 Hz. The fusing should be 3A. Important Notes • This appliance must not be operated without the casing correctly fitted and forming an adequate seal. • If the boiler is installed in a compartment then the compartment MUST NOT be used for storage purposes. •...
  • Page 6: Boiler Controls

    BOILER CONTROLS LEGEND A. Pre-heat On/off Burner ‘on’ indicator B. DHW temperature control Pressure Gauge C. CH temperature control H. Condensate Drain D. Mode Control Economy Mode Boiler Status...
  • Page 7 TO LIGHT THE BOILER. (REFER TO BOILER CONTROLS) If a programmer is fitted refer to separate instructions for the programmer before continuing. Check that the electricity supply to the boiler is off. Set the mains Off/Summer/Winter control (D) to ‘Off’. Set the Domestic Hot Water temperature control (B) and Central Heating temperature control (C) to ‘max’.
  • Page 8: Operation

    OPERATION Winter Mode - i.e. CH and DHW required. Ensure the off/summer/winter control (D) is set to winter ( The boiler will fire and supply heat to the radiators but will give priority to DHW on demand. The DHW preheat will operate as described under 'Summer conditions' during periods when there is no call for CH. Summer Mode - i.e.
  • Page 9: Frost Protection

    Central Heating The boiler controls the central heating radiator temperature to a maximum of 80 C, adjustable via the CH temperature control (C). Approx. flow temperatures for the boiler thermostat settings are: Knob Setting Flow Temperature Minimum C (104 Maximum C (147 The Logic + Combi is a high efficiency combination boiler which is most efficient when operating in condensing mode.
  • Page 10: Loss Of System Water Pressure

    LOSS OF SYSTEM WATER PRESSURE The gauge (G) indicates the central heating system pressure. If the pressure is seen to fall below the original installation pressure of 1-2 bar over a period of time then a water leak may be indicated. In this event conduct the re-pressurising procedure as shown below.
  • Page 11: Condensate Drain

    CONDENSATE DRAIN The condensate drain (H) must not be modified or blocked. Blockage of the condensate drain, caused by debris or freezing, can cause automatic shutdown of the boiler. If freezing is suspected and the pipe run is accessible an attempt may be made to free the obstruction by pouring hot water over the exposed pipe and clearing any blockage from the end of the pipe.
  • Page 12: Points For The Boiler User

    POINTS FOR THE BOILER USER Note. In line with our current warranty policy we would ask that you check through the following guide to identify any problems external to the boiler prior to requesting a service engineers visit. Should the problem be found to be other than with the appliance we reserve the right to levy a charge for the visit, or for any pre-arranged visit where access is not gained by the engineer.
  • Page 13: Troubleshooting

    See boiler “Display Functions” See boiler “Display Funcitons” section. If “standby mode” is Does the boiler operate and section displayed then contact Ideal provide central heating? Customer Services Helpline if your appliance is under warranty Contact a Gas Safe Registered...
  • Page 14: Normal Operation

    DISPLAY FUNCTIONS - NORMAL OPERATION MODE The display scrolls through a maximum of 3 messages under any operational condition, as shown below. Note. The temperatures shown below are for illustration purposes only. The measured temperatures will be shown on the boiler. NORMAL OPERATION MESSAGE 1 MESSAGE 2...
  • Page 15: Display Functions - Settings Changed

    DISPLAY FUNCTIONS - SETTINGS CHANGED Note. The temperatures shown below are for illustration purposes only. The measured temperatures will be shown on the boiler. NORMAL OPERATION MESSAGE 1 MESSAGE 2 MESSAGE 3 Pre-heat knob moved to off position Pre heat off Pre-heat knob moved to on position Pre heat on DHW temperature knob moved...
  • Page 16: Display Functions - Fault Messages

    1. Turn power off and on at the fused spur. Too Many Resets 5 Boiler Resets in 15 Minutes 2. If the boiler fails to operate please contact Ideal (if under Contact Installer warranty) or alternatively a Gas Safe Registered Engineer if outside of the warranty period.
  • Page 17 Check system pressure is between 1 & 1.5bar on the pressure Low Water Pressure Low Water Pressure gauge. If the fails to operate then please contact Ideal (if under 1 Fill System to 1.0 Bar warranty) or alternatively a Gas Safe Registered Engineer if 2 Bleed Radiators outside of the warranty period.
  • Page 18 If the boiler fails to operate then 1 Check Other Gas Appliances Work please contact Ideal (if under warranty) or alternatively a Gas 2 Reset Boiler Safe Registered Engineer if outside of the warranty period. In 3 Contact Installer IE contact a Registered Gas Installer (RGII).
  • Page 20 February 2010 UIN 204979 A03 Ideal Stelrad Group pursues a policy of continuing improvement in the design and performance of its products. The right is therefore reserved to vary specification without notice. Ideal, P.O. Box 103, National Ave, Kingston Upon Hull, HU5 4JN. Tel. 01482...

This manual is also suitable for:

Logic+ combi 35Logic+ combi 30
