14. Synchronizing roller section

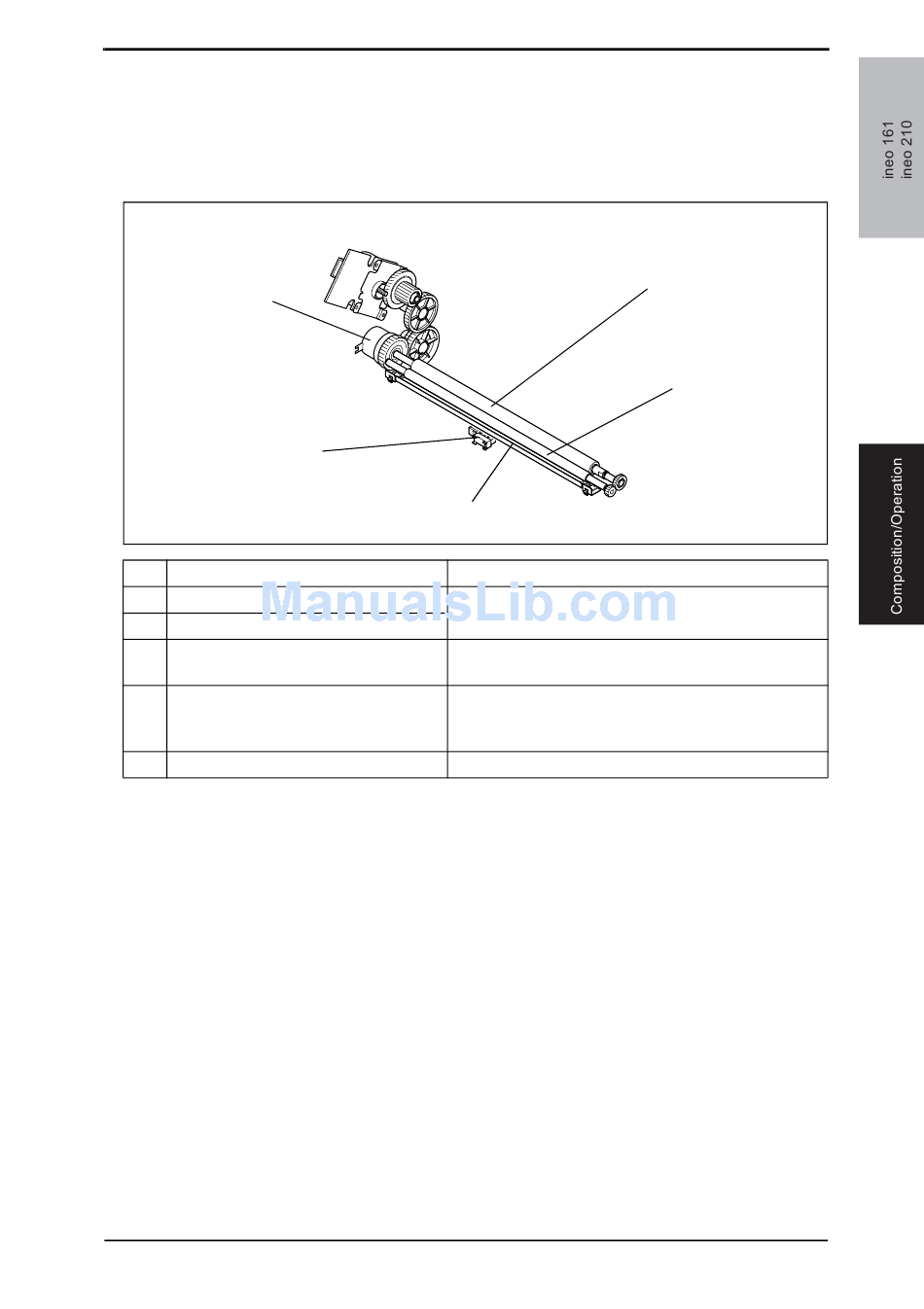

14.1 Construction

• The Synchronizing Roller ensures that the paper is fed off from the transport section in
time with the exposure timing of the exposure section (PH).
5
No.
1 Synchronizing Roller
2 Transport Roller
3 Paper Dust Remover
4 Synchronizing Roller Sensor (PC1)
5 Synchronizing Roller Clutch (CL1)
4
Name
Transports the paper onto the developing section.
Prevents paper dust from sticking to the surface of the
PC Drum.
Determines the condition of the paper being trans-
ported, thereby detecting a paper misfeed and paper
transport timing.
Controls drive of the Synchronizing Roller.
14. Synchronizing roller section
3
4035M011AA
