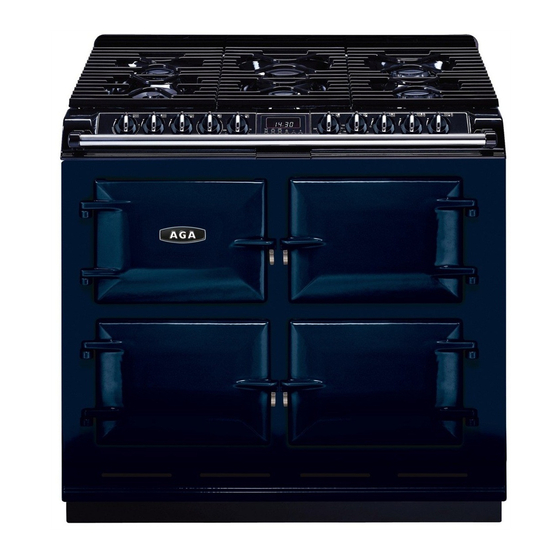

AGA Six Four Series Assembly Instructions Manual
Hide thumbs
Also See for Six Four Series:
- Owner's manual (36 pages) ,
- Assembly instructions manual (9 pages)
Advertisement
Quick Links
Download this manual
See also:
Owner's Manual
AGA
Six Four Series
AGA
Six Four Series
(with gas hob)
(with gas hob)
assembly instructions
for models supplied in modular format
This guide must be read in conjunction with the normal product installation instructions
s.t 6.04
sixfourassbly1gas
Advertisement
Related Manuals for AGA Six Four Series
Summary of Contents for AGA Six Four Series
- Page 1 Six Four Series Six Four Series (with gas hob) (with gas hob) assembly instructions for models supplied in modular format This guide must be read in conjunction with the normal product installation instructions s.t 6.04 sixfourassbly1gas...
- Page 2 Clearances:- Refer to diagram below Where the Aga is to be ‘slot’ fitted, a gap of 3mm is recommended each side, to allow the product to slide in easy. See dimension ’B’ Dimension ‘A’ 60mm, is the clearance to be provided against any side wall which extends above the level of the hob, to allow for protruding utensil handles.
- Page 3 Six Four series (Gas Hob) Six Four series (Gas Hob) assembly instructions for modular models assembly instructions for modular models Gas Supply:- The gas supply pipe should not be less than 15mm diameter. A fixing kit is supplied with the product suitable for the relevant gas, i.e. LPG or Natural. This includes a 48”...
- Page 4 Conversion between 1 phase / 3 phase is easily accomplished as shown below An appropriate electrical isolator must be fitted within 2 metres of the Aga, but not sited immediately above it. In the case of an existing supply, it should be confirmed that both...
- Page 5 Six Four series (Gas Hob) Six Four series (Gas Hob) assembly instructions for modular models assembly instructions for modular models Assembly procedure:- 1. Check that all 5 cartons are present and carefully unpack the contents. Remove side panels from oven assembly, but leave rear panel in place to provide a lifting point.
- Page 6 Six Four series (Gas Hob) Six Four series (Gas Hob) assembly instructions for modular models assembly instructions for modular models Using an extended length screwdriver passing between the ovens, tighten the centre two screws, then work evenly around the outer ones, ensuring that the ovens seal against front-plate.
- Page 7 Six Four series (Gas Hob) Six Four series (Gas Hob) assembly instructions for modular models assembly instructions for modular models Thread each capillary through into its respective oven and into its retaining clip. Lower left Lower right Top right...
- Page 8 Six Four series (Gas Hob) Six Four series (Gas Hob) assembly instructions for modular models assembly instructions for modular models Plug in the two multi-way plugs. They are biased and will only fit into their cor- rect sockets. Refit rear panel.
- Page 9 Six Four series (Gas Hob) Six Four series (Gas Hob) assembly instructions for modular models assembly instructions for modular models Fit the hotplates into position and secure with the corner stay-nuts and buttons. Remember to locate the gaskets and to connect the earthwires from the castings.
