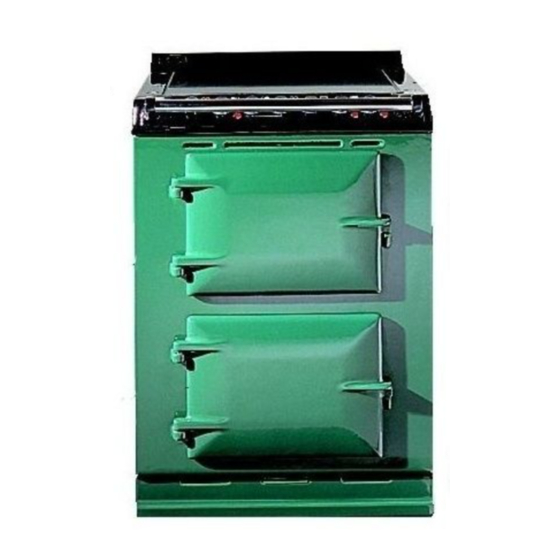

TC/DC INTEGRATED MODULE
(with Gas Top Burners)
PLEASE READ THESE INSTRUCTIONS BEFORE USING THIS APPLIANCE
IMPORTANT :
IMPORTANT :
Cooking
Cooking
Guide
Guide
included
included
inside
inside
Users
Instructions
Cooking
Guide
SAVE INSTRUCTIONS FOR FUTURE REFERENCE
CONSERVER CES INSTRUCTIONS POUR RÉFÉRENCE FUTURE
For use in USA/Canada
06/15 EOPI 517027
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for AGA TC/DC
Summary of Contents for AGA TC/DC
- Page 1 TC/DC INTEGRATED MODULE (with Gas Top Burners) Cooking Cooking Guide Guide included included inside inside Users Instructions Cooking Guide PLEASE READ THESE INSTRUCTIONS BEFORE USING THIS APPLIANCE IMPORTANT : SAVE INSTRUCTIONS FOR FUTURE REFERENCE IMPORTANT : CONSERVER CES INSTRUCTIONS POUR RÉFÉRENCE FUTURE...
-
Page 2: Table Of Contents
Contents Product Safety Important Safety Instructions Introduction AGA TC/DC Integrated Module (Gas Hob) Control Panel Gas Top Burners The Broiler (Top Oven) The Ovens Oven Cooking Guide 10-14 Caring and Cleaning Enamelled Cast Iron Ovens Heat-Clean Enamel Gas Hotplate Enamelled Cookware... -
Page 3: Product Safety
PRODUCT SAFETY MEANING/DESCRIPTION SYMBOL SIGNIFICATION/DESCRIPTION WARNING/CAUTION AVERTISSEMENT An appropriate safety instruction Une consigne de sécurité should be followed or caution to a appropriée doivent être suivies potential hazard exists. ou garde d’un danger potentiel exists. DANGEROUS VOLTAGE TENSION DANGEREUSE To indicate hazards arising from Pour indiquer les dangers dangerous voltages. -
Page 4: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS INCORRECT USE OF THIS RANGE CAN INCREASE THE RISK OF FIRE, ELECTRIC SHOCKS OR INJURY TO PERSONS. PLEASE READ THE FOLLOWING PRECAUTIONS TO REDUCE THESE RISKS. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. -
Page 5: Introduction
‘parent’. At the same time giving a flexible alternative during for instance the warm summer months when you may wish to turn off your main AGA cooker. Your appliance has a gas top burners, electric grill and two electric ovens. -
Page 6: Aga Tc/Dc Integrated Module (Gas Hob)
AGA TC/DC Integrated Module (Gas Hob) SEMI RAPID BURNER CAST IRON RAPID GRATES BURNER WOK BURNER SEMI RAPID BURNER CONTROL PANEL GRILL PAN WITH GRID GRID SHELF GRILL & CONVENTIONAL OVEN GRID SHELF FANNED OVEN ROASTING TIN (BAKING TRAY NOT SHOWN) -
Page 7: Control Panel
Control Panel GAS HOB BURNERS REAR FRONT REAR FRONT LOWER GRILL LEFT LEFT RIGHT RIGHT OVEN OVEN LOWER OVEN OVEN NEON NEON Fig. 2 DESN 515698 A The GAS HOTPLATE CONTROL KNOBS can only be rotated anti-clockwise from the OFF position. Large Flame Symbol - High Setting Small Flame Symbol - Low Setting (See ‘HOTPLATE’... -
Page 8: Gas Top Burners
Gas Top Burners The hotplate has four gas burners: Never use pans which overhang the front facia. rear left - rapid burner - rated at 3.25 kW/11,000 Btu/hr Place all pans centrally over the burners. front left and rear right - semi rapid burners - each Utensil handles should be positioned inward and not rated at 1.8 kW/6,150 Btu/hr extend over adjacent surface units - to reduce the... -
Page 9: The Broiler (Top Oven)
CAUTION: Accessible parts may be hot when the grill If you also have an AGA DO NOT use the small is in use. Young children should be kept away. roasting tin provided with the AGA in the Module. -
Page 10: Oven Cooking Guide
Oven Cooking Guide Deep Fat Frying Cooking Hints Do not try to fry too much food at a time, especially Pre-heat selected oven until the light goes out. frozen food. This only lowers the oven temperature of the oil or fat too much, resulting in greasy food. The guidelines are for cooking after the oven (s) has reached the desired temperature. - Page 11 Top Oven (Conventional) Top Oven (Conventional) • Top Oven (Conventional) • Top Oven (Conventional) SHELF APPROXIMATE COOKING TIME FOOD SETTING °F POSITION Roasting meat Beef Rare 15 mins per lb plus 20 mins Medium 20 mins per lb plus 25 mins Well Done 30 mins per lb plus 30 mins Lamb...
- Page 12 Top Oven (Conventional) • Top Oven (Conventional) • Top Oven (Conventional) • Top Oven (Conventional) • Top Oven (Conventional) SHELF APPROXIMATE COOKING TIME FOOD SETTING °F POSITION Puddings Puddings Milk Puddings Milk Puddings 300/325 2 hrs approx. 2 hrs approx. Baked Sponges Baked Sponges 325/350...
- Page 13 Lower Oven (Fanned/Convection) L o w e r O v e n ( F a n n e d ) • L o w e r O v e n ( F a n n e d ) The lower oven is a fanned or convection oven, which means the air is circulated to create an even temperature throughout the oven.
- Page 14 L o w e r O v e n ( F a n n e d ) • L o w e r O v e n ( F a n n e d ) L o w e r O v en ( F a n n e d ) • L o w e r O v e n ( F a n n e d ) • L o w e r O v e n ( F a n ne d ) SHELF APPROXIMATE COOKING TIME FOOD...
-
Page 15: Caring And Cleaning
Enamelled roasting pans - supplied with the AGA streaks is all that is required. AGA E-cloths are excellent TC/DC Module should be cleaned in hot soapy water, for this. - Page 16 BURNER CAP RETAINING LUGS Fig 3A DESN 511617 Fig. 3B DESN 513513 Fig. 3C DESN 513898...
-
Page 17: Servicing
Servicing In the event of your appliance requiring maintenance, please contact your local authorized dealer. Your module must only be serviced by an approved technician, from an authorized dealer. Do not alter or modify the module. Only the parts specified by the manufacturer are to be used. - Page 20 For further advice or information contact your local AGA Ambassador With AGA Marvel’s policy of continuous product improvement, the Company reserves the right to change specifications and make modifications to the appliance described and illustrated at any time. Supplied by AGA Marvel 1260 E.
