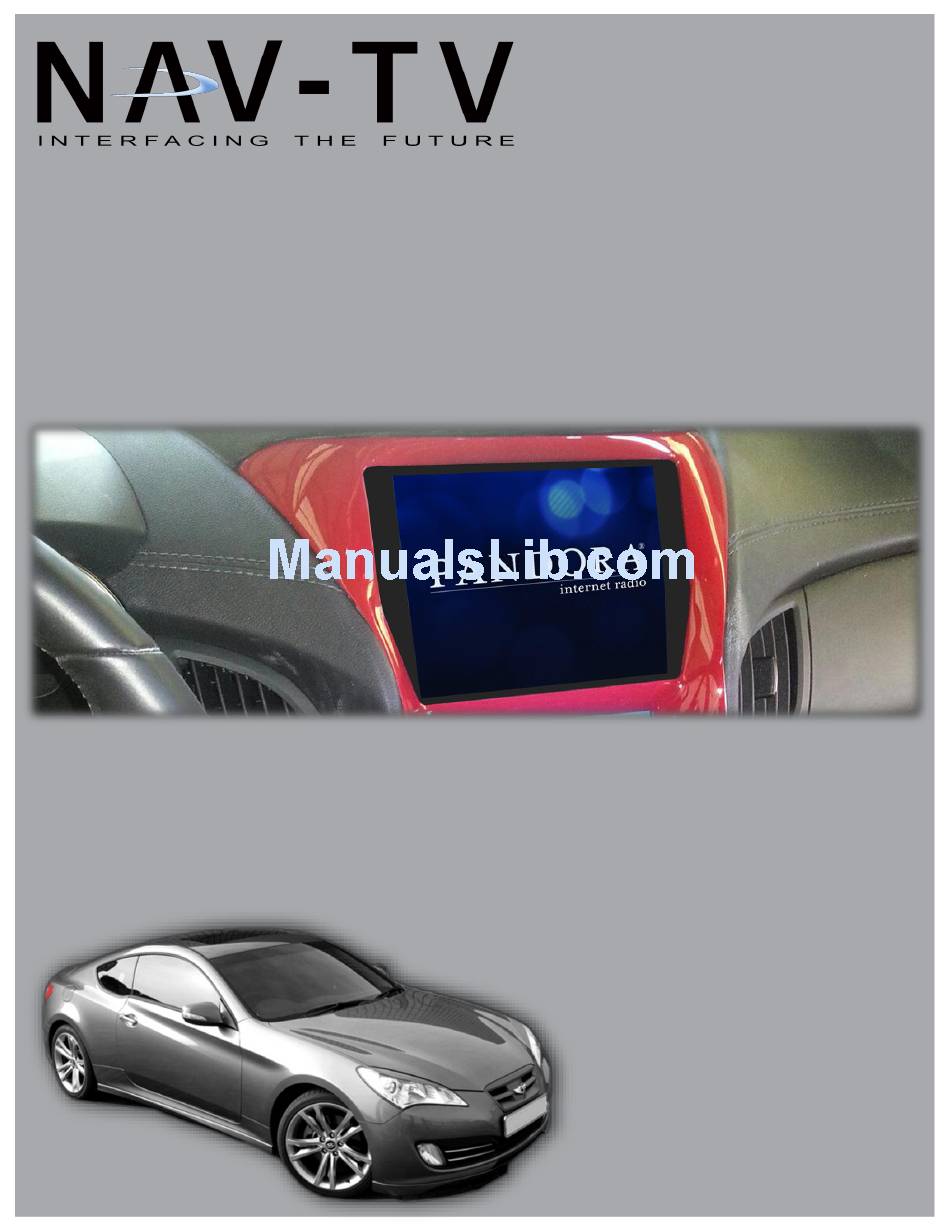

- Page 1 3950 NW 120 Ave, Coral Springs, FL 33065 TEL: 561-955-9770 FAX: 561-955-9760 StreamBlue Steering Wheel to Smart-Device Controller with Audio Streaming NTV-KIT510 Compatible with most Bluetooth enabled tablets and smart phones BM, DS 8/20/14 NTV-DOC190...
- Page 2 10/09/14 NTV-DOC190 Overview StreamBlue is a super high-quality Bluetooth 4.0 audio streaming interface that provides a seamless and secure bi-directional wireless connection between your tablet or smart phone. The included and selectable analog RCA or digital S/PDIF (electrical coaxial) allow the StreamBlue to be used by itself, directly connected to a factory or aftermarket audio input or aftermarket amplifier, or to a third party audio processing unit with either analog RCA or digital S/PDIF input.
- Page 3 10/09/14 NTV-DOC190 Steering Wheel Control Module Installation, Radio Type and Button Configuration 1. Begin by installing the steering wheel control (SWC) device of your choice into the vehicle. Refer to the installation instructions that came with the module of your choice and note any limitations listed in the manufacturer's manual.
- Page 4 10/09/14 NTV-DOC190 4. Unplug power to the SteerBlue module. On the side of the StreamBlue module, select the audio output type being used* After the audio output format has been selected via the dip switch plug power back into the SteerBlue module: Dip Switch RCAs Dip Switch...
- Page 5 10/09/14 NTV-DOC190 Wiring Diagram Scenarios FIG 1 For adding Bluetooth and steering wheel controls (radio replaced with tablet/ controlling smartphone only) FIG 2 For adding Bluetooth streaming with a NAV-TV MOST-AUX (no steering controls) Note: This diagram is for semi- auto audio switching.
- Page 6 10/09/14 NTV-DOC190 StreamBlue Button Functions Controlling your smart device with the StreamBlue works just as you would expect: volume buttons control the volume and track buttons control the track selection. By default, the "source" button will play and pause the music. Pressing ‘play’ after linking Bluetooth will play the default music player on your device (may require a second press on some tablets and smart phones depending on the model, carrier, operating system and firmware version).
- Page 7 10/09/14 NTV-DOC190 StreamBlue Operation The StreamBlue will remember up to 8 different devices. After 8 devices have been connected, it will delete the oldest device on the list automatically. Using the StreamBlue in conjunction with a factory radio is not supported at this time. This is a limitation caused by the third party steering wheel control interface due to the fact that they were engineered to be used ONLY when replacing the factory radio, not in combination with the factory radio.
- Page 8 10/09/14 NTV-DOC190 The behavior of all button assignments are limited by the SWC interface’s ability to read the vehicle steering wheel button presses and deliver them to the paired Smartphone or Tablet. Since the StreamBlue emulates the exact functions of the buttons on the device, the operation will be dependent on the stock functionality of each paired device.
- Page 9 10/09/14 NTV-DOC190 A: The initial pairing of a new device may take up to 30 seconds to pair for the first time. After the unit is paired, the connection usually takes between 3 to 5 seconds after start up as long as the device you are trying to connect was the last device connected to the StreamBlue.
- Page 10 10/09/14 NTV-DOC190 Tested Devices The StreamBlue is compatible with most current tablets and smartphones equipped with current operating systems as of 10/7/14. Other tested devices: Samsung Galaxy S5, S4, S3 Samsung Galaxy Tab 2 & 3 Toshiba Thrive ...
