Summary of Contents for Nav TV DSP12A-A2B

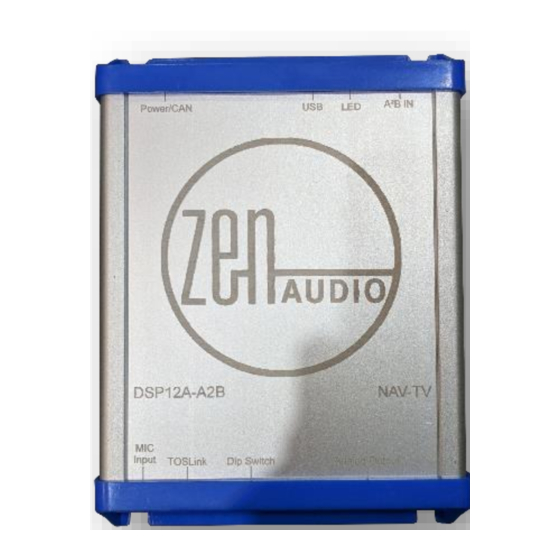

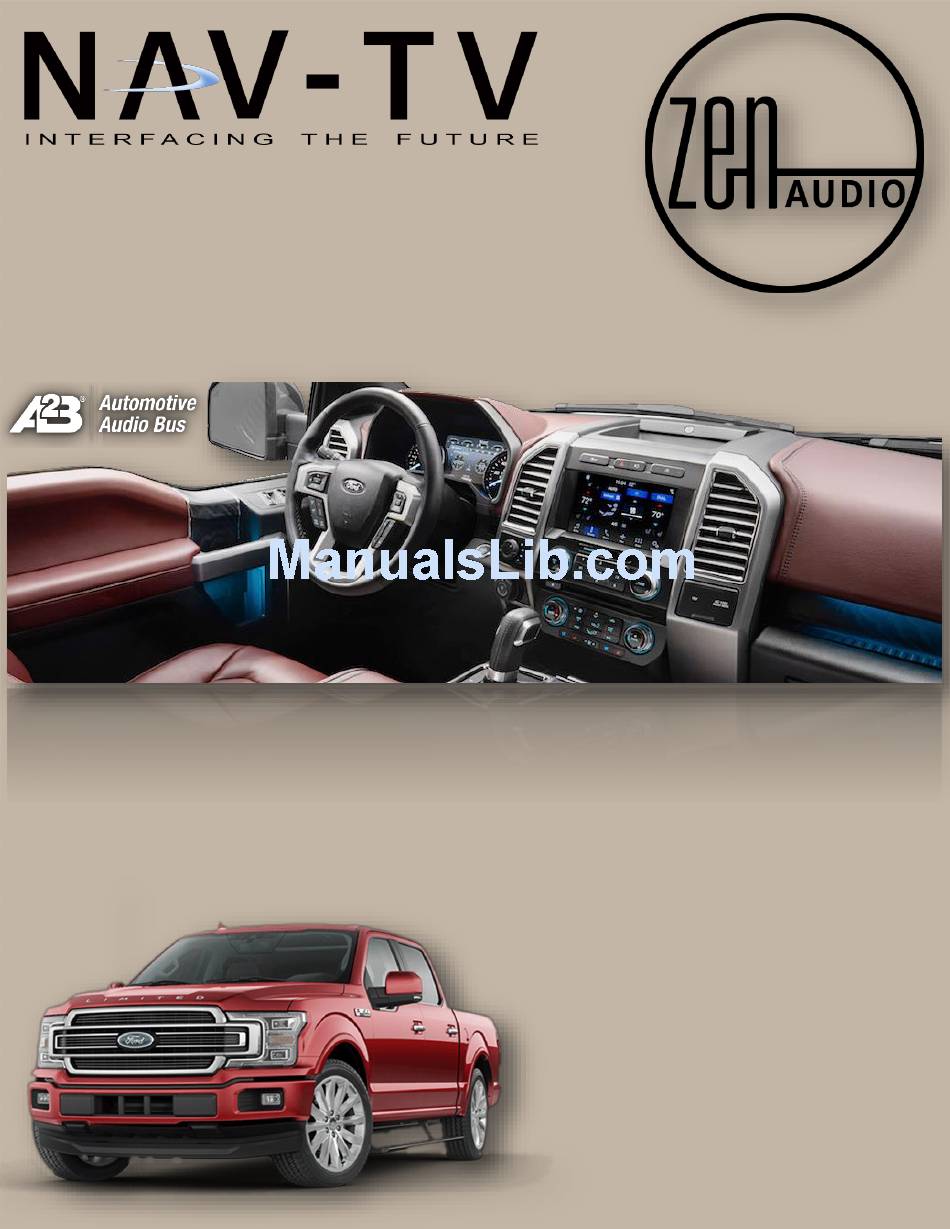

- Page 1 3950 NW 120 Ave, Coral Springs, FL 33065 TEL 561-955-9770 FAX 561-955-9760 DSP12A-A2B Ford A²B® to 12-channel Analog & Digital sound processor NTV-KIT889 ® A²B is a registered trademark of Analog Devices Inc.
- Page 2 WARNING: Due to the complexity and sensitivity of the OEM Ford A²B®, the ZEN- 07/18/18 A2B must be used with amplifiers that are grounded directly to the battery. The NTV-DOC320 resistance to (true battery) ground of the Amplifier(s) must not exceed 1 ohm, otherwise you will likely experience performance issues with the ZEN-A2B.
- Page 3 07/18/18 NTV-DOC320 ZEN-A2B Installation 1. For ZEN-A2B installations, the factory amplifier must be removed and the ZEN-A2B can be installed into its place. If this vehicle is not amplified from factory then this interface is not needed. 2. After locating the factory amplifier, disconnect it entirely as it will no longer be in use. With the vehicle off, connect the provided ZEN-A2B harness to the (previously removed) OEM amplifier connectors (gray &...
- Page 4 07/18/18 NTV-DOC320 ZEN-A2B General Installation Notes • Tuning tips: 1. Before beginning tuning process (especially with external EQ/Processors), set Bass & Treble on the head unit for each source to flat (0). 2. Begin with amplifier/EQ gains all the way down. 3.
- Page 5 07/18/18 NTV-DOC320 ZEN-A2B System Layout (analog) For ZEN-A2B installations, the factory amplifier MUST be removed or disconnected. A²B® is a registered trademark of Analog Devices Inc. P a g e...
- Page 6 07/18/18 NTV-DOC320 ZEN-A2B System Layout (digital TOSLink) For ZEN-A2B installations, the factory amplifier MUST be removed or disconnected. A²B® is a registered trademark of Analog Devices Inc. P a g e...
- Page 7 07/18/18 NTV-DOC320 ZEN-A2B Technical Specifications Hardware & Software Current HW version: --2r0-- Current SW version: ZEN-A2B-2.0.12-6-26-18.enc Compatible SW (update) OS: Windows 7 (64 bit), 8, 10 INPUT Digital Input A²B Twisted Pair OUTPUT Digital Outputs: TOSLink Digital Outputs supported: 24bit/48kHz Frequency Response (digital): 18Hz –...
- Page 8 07/18/18 NTV-DOC320 A²B® is a registered trademark of Analog Devices Inc. P a g e...
