Nav TV PCM3-Media Manual

Porsche cayenne 2009 media kit with backup camera, video-in-motion, ipod, aux, usb-media and bluetooth

Advertisement

Quick Links

Adds Backup Camera, Video-In-Motion, iPod, AUX, USB-media and Bluetooth to 2009 and Up Porsche Cayenne

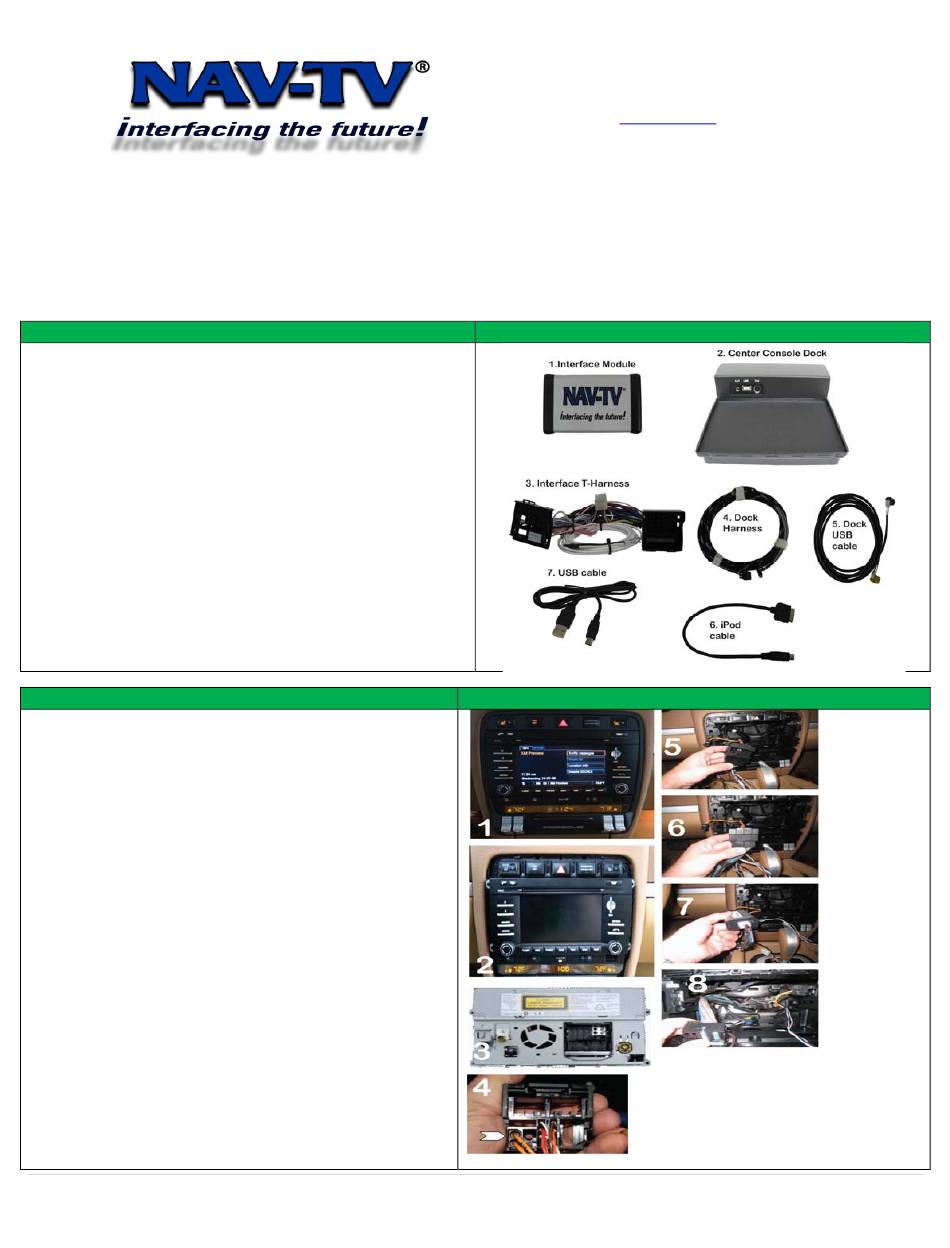

What's in the box
1.
Media Interfa
ce Module
2. Vehicle Center Console replacement Media Dock
3. Interface T-Harness
4. Console Dock Harness
5.
Dock USB ca
ble (connects to back of radio a
Media Dock)
6. iPod cable
7. USB cable (Have the "A" connector side of the
cable acce
ssible to the passenger side of the
vehicle cabin, but hidden from view) NOTE: T
USB cable connects to the interface module
and is not used for media playback.
Radio Removal and Installation
1. Insert a plastic pry tool into the space between
the lower black trim piece and the dash and
gently pry the trim panel towards the rear of the
vehicle to release the mounting clips. Follow the
trim panel around either clockwise or
counterclockwise to release the remainder of the
mounting clips. Set aside the trim panel.
2. Remove (4) T20 Torx bolts from the sides of the
radio and pull the radio gently out of the dash in
order to disconnect all stock cables and antenna
connectors.
3. Rear view of radio
4. Remove the fiber optic connector from the
factory harness by gently prying up on the
locking tab with a pick tool.
5. With the fiber unplugged from the factory
harness.
6.
Plug in the supplied T-harness to the factory
harness.
7. Plug in the Interface module into the 8-Pin
connector on the T-harness.
8.
Secure the Interface module in the dash.
1 |
P a g e
PCM3-Media
vehicles equipped with PCM3 radios
nd
his
PCM3-Media
Rev 1.2
TH
100 NW 11
Street, Boca Raton, FL 33432
Tel. 561-955-9770
Fax. 561-955-9760
www.nav-tv.com
info@nav-tv.com
Package Contents
Radio Dash Images
12-11-2008
Mark Ryan

Advertisement

loading
Need help?

Need help?

Do you have a question about the PCM3-Media and is the answer not in the manual?

Questions and answers

Summary of Contents for Nav TV PCM3-Media

  • Page 1 PCM3-Media 12-11-2008 Rev 1.2 Mark Ryan 100 NW 11 Street, Boca Raton, FL 33432 Tel. 561-955-9770 Fax. 561-955-9760 www.nav-tv.com info@nav-tv.com PCM3-Media Adds Backup Camera, Video-In-Motion, iPod, AUX, USB-media and Bluetooth to 2009 and Up Porsche Cayenne vehicles equipped with PCM3 radios What’s in the box...
  • Page 2 Radio Removal and Installation (Cont.) Radio Dash Images (Cont.) 9. Connect the Media dock USB connector to the USB connector on the back of radio. 10. Connect the Media dock cable into radio side of T-harness. 11. Plug in the fiber connector into the radio side of the T-harness and connect to the radio.
  • Page 3 7 seconds and Hold for 4 seconds to program the PCM3 for media options. Note: If the PCM3-Media is to be removed from the vehicle, you must first enter service mode and press the down arrow for 4 seconds to deprogram the original PCM3 before the filter is removed.
