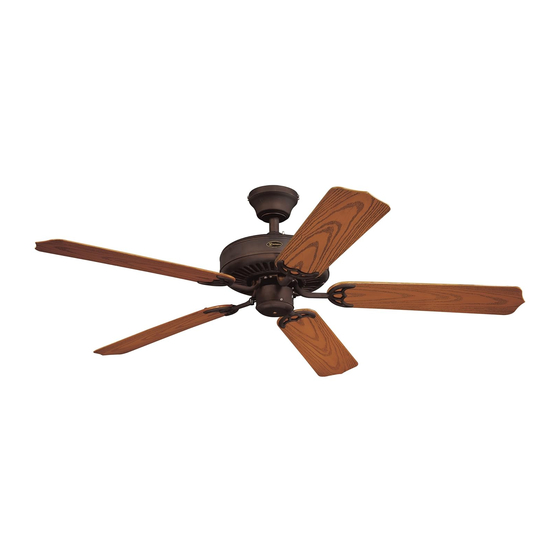

- Page 1 UL-ES-VerandahBreeze-WH09 OWnEr'S ManUaL ManUaL dEL USUariO Verandah Breeze Please write model number here for future reference: / Por favor, incluya el número del modelo aquí para futura referencia: net Weight: 16.53 LBS Peso neto:...
-
Page 2: Safety Tips
UL-ES-VerandahBreeze-WH09 SafEty tiPS OBSERVE THE FOLLOWING: READ AND SAVE THESE INSTRUCTIONS WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR PERSONAL INJURY, MOUNT TO OUTLET BOX MARKED "ACCEPTABLE FOR FAN SUPPORT", AND USE THE OUTLET SCREWS PROVIDED WITH THE OUTLET BOX. MOST OUTLET BOXES COMMONLY USED FOR THE SUPPORT OF LIGHTING FIXTURES ARE NOT ACCEPTABLE FOR FAN SUPPORT AND MAY NEED TO BE REPLACED. -
Page 3: Consejos De Seguridad
UL-ES-VerandahBreeze-WH09 COnSEjOS dE SEGUridad HAGA LO SIGUIENTE: LEA Y GUARDE ESTAS INSTRUCCIONES ADVERTENCIA: PARA REDUCIR EL RIESGO DE INCENDIO, DESCARGA ELÉCTRICA O LESIONES PERSONALES, MONTE EL VENTILADOR EN UNA CAJA DE EMBUTIR ROTULADA “ADECUADA PARA VENTILADORES”, Y UTILICE LOS TORNILLOS DE MONTAJE INCLUIDOS CON LA CAJA DE EMBUTIR. LA MAYORÍA DE LAS CAJAS DE EMBUTIR UTILIZADAS NORMALMENTE PARA ARTEFACTOS DE ILUMINACIÓN NO SON ADECUADAS PARA VENTILADORES Y DEBERÍAN SER REEMPLAZADAS. -
Page 4: Features Características
UL-ES-VerandahBreeze-WH09 fEatUrES CaraCtEríStiCaS VAULTED CEILING DOWNROD INSTALLATION INSTALLATION FLUSH MOUNT INSTALLATION INSTALACIÓN CON INSTALACIÓN PARA INSTALACIÓN AL RAS VARILLA VERTICAL CIELORRASOS ABOVEDADOS For low ceilings For normal ceilings May require a longer downrod Podría requerir una varilla vertical más larga... -
Page 5: Preparing For Installation
UL-ES-VerandahBreeze-WH09 PrEParinG fOr inStaLLatiOn antES dE La inStaLaCión Use metal outlet box suitable for fan support (must support 35 lbs). Before attaching fan to outlet box, ensure the outlet box is securely fastened by at least two points to a structural ceiling member (a loose box will cause the fan to wobble). -
Page 6: Mounting Bracket Installation
UL-ES-VerandahBreeze-WH09 MOUntinG BraCKEt inStaLLatiOn MOUntinG OPtiOnS inStaLaCión COn SOPOrtE dE MOntajE OPCiOnES dE MOntajE Choose a MOUntinG OPtiOn Elija una OPCión dE MOntajE fLUSH MOUnt OPtiOn If flush mount option is selected, proceed to page 7, step 5. OPCión dE inStaLaCión aL raS Si elige la opción de montaje al ras,... -
Page 7: Flush Mount Option
UL-ES-VerandahBreeze-WH09 fLUSH MOUnt OPtiOn OPCión dE inStaLaCión aL raS For flush mount option, you must have one person raise the fan assembly Guide motor wires through the base of the canopy as shown and attach up near outlet box while another person makes the wiring connections canopy directly to top of motor housing with flush mount screws and lock using provided wire connectors. -
Page 8: Normal Downrod Option
UL-ES-VerandahBreeze-WH09 nOrMaL dOWnrOd OPtiOn OPCión COn VariLLa VErtiCaL Para CiELOrraSO nOrMaL Place downrod assembly (1) into canopy (2), canopy cover ring (3) and coupling cover (4). Feed motor wires though the downrod assembly (1). Insert the four wires from the fan through the rubber downrod cover (5). - Page 9 UL-ES-VerandahBreeze-WH09 EXtEndEd dOWnrOd OPtiOn OPCión COn VariLLa VErtiCaL MÁS LarGa Insert downrod into downrod coupling. Make sure to align hole in downrod with the hole in downrod coupling. Install cross pin (1) through coupling and downrod. Insert keeper pin (2) into cross pin until it snaps into place. Tighten set screws (3) in coupling. Slide coupling cover (4) over the downrod coupling.
- Page 10 UL-ES-VerandahBreeze-WH09 EXtEndEd dOWnrOd OPtiOn OPCión COn VariLLa VErtiCaL MÁS LarGa Re-install pin into extended downrod, and slide downrod ball up to the top of the downrod. Re-install set screw to secure ball to downrod. Note: Some extended downrods have a pre-drilled set-screw hole.
- Page 11 UL-ES-VerandahBreeze-WH09 MOUntinG MOntajE Carefully lift fan assembly onto mounting bracket. Rotate fan until notch on downrod ball (1) engages the ridge on the mounting bracket (2). This With bracket holding fan assembly, connect the wires with wire connectors (includ- will allow for hands free wiring.
-
Page 12: Wiring Options
UL-ES-VerandahBreeze-WH09 WirinG OPtiOnS OPCión dE CaBLEadO PULL CHain WirinG OPtiOn WaLL COntrOL WirinG OPtiOn From Fan: From House: From Fan: From House: White (common) Wall Control White (common) White (common) White (common) (connect) (connect) Black (hot) Black (hot) Black (hot) -
Page 13: Secure To Ceiling
UL-ES-VerandahBreeze-WH09 SECUrE tO CEiLinG aSEGUrE EL VEntiLadOr aL CiELOrraSO To install the canopy cover ring, peel the backing off the adhesive tape strips on the inside of the cover ring. Slide the cover ring up the downrod and secure to the canopy by gently pressing the adhesive tape to the bottom of the canopy. -
Page 14: Blade Installation
UL-ES-VerandahBreeze-WH09 BLadE inStaLLatiOn inStaLaCión dE LaS PaLEtaS Check the motor for plastic shipping stabilizer tabs (1), and remove them if they are present. Attach blade assembly to motor using the noise-dampening motor gaskets and motor screws provided. Tighten screws ecurely. NOTE: Some models do not utilize motor gaskets, washers, or stabilizer tabs. -
Page 15: Parts List
UL-ES-VerandahBreeze-WH09 PartS LiSt LiSta dE rEPUEStOS description 1 ....Mounting Bracket 2 ....Blade Bracket 3 . -
Page 16: Operation And Maintenance
UL-ES-VerandahBreeze-WH09 OPEratiOn and MaintEnanCE Operation Turn on the power and check operation of fan. The pull chain controls the fan speeds as follows: 1 pull - high; 2 pulls - medium; 3 pulls - low; 4 pulls - off. Speed settings for warm or cool weather depend on factors such as room size, ceiling height, number of fans and so on. The slide switch controls direction, forward or reverse. -
Page 17: Operación Y Mantenimiento
UL-ES-VerandahBreeze-WH09 OPEraCión y MantEniMiEntO Operación Encienda el ventilador y verifique su funcionamiento. La cadenilla de tiro controla las velocidades del ventilador de la siguiente manera: 1 jalón – rápida; 2 jalones - mediana; 3 jalones - lenta; 4 jalones - apagado. -
Page 18: Troubleshooting Guide
UL-ES-VerandahBreeze-WH09 If you have difficulty operating your new ceiling fan, it may be the result of incorrect assembly, installation, or wiring. In some cases, these trOUBLESHOOtinG GUidE installation errors may be mistaken for defects. If you experience any faults, please check this Trouble Shooting Chart. If a problem cannot be remedied, please consult with your authorized electrician and do not attempt any electrical repairs yourself. -
Page 19: Guía Para Solucionar Problemas
UL-ES-VerandahBreeze-WH09 Si tiene dificultades para hacer funcionar su nuevo ventilador, podría ser a causa del armado, instalación o GUía Para SOLUCiOnar PrOBLEMaS cableado incorrectos. En algunos casos, estos errores de instalación podrían ser confundidos con defectos. Si experimenta alguna falla, consulte esta guía para solucionar problemas. Si no puede solucionar el problema, consulte a un electricista autorizado y no intente reparar conexiones eléctricas. - Page 20 Philadelphia, PA 19154 U.S.A. Philadelphia, PA 19154 U.S.A. Westinghouse Lighting Corporation, Westinghouse Lighting Corporation, a Westinghouse Electric Corporation licensee titular de la licencia de Westinghouse Electric Corporation is a registered trademark of es una marca registrada de Westinghouse Electric Corporation Westinghouse Electric Corporation...
