Owner's Manual
Manual del Propietario
®
ROOM AIR CONDITIONER
ACONDICIONADOR
DE AIRE DE VENTANA
Model, Modelo 580.71121
Sears, Roebuck
and Co., Hoffman Estates,
IL 6qEWIg_et_
www.sears.com

Advertisement

Table of Contents

   Related Manuals for Kenmore 580.71121

   Summary of Contents for Kenmore 580.71121

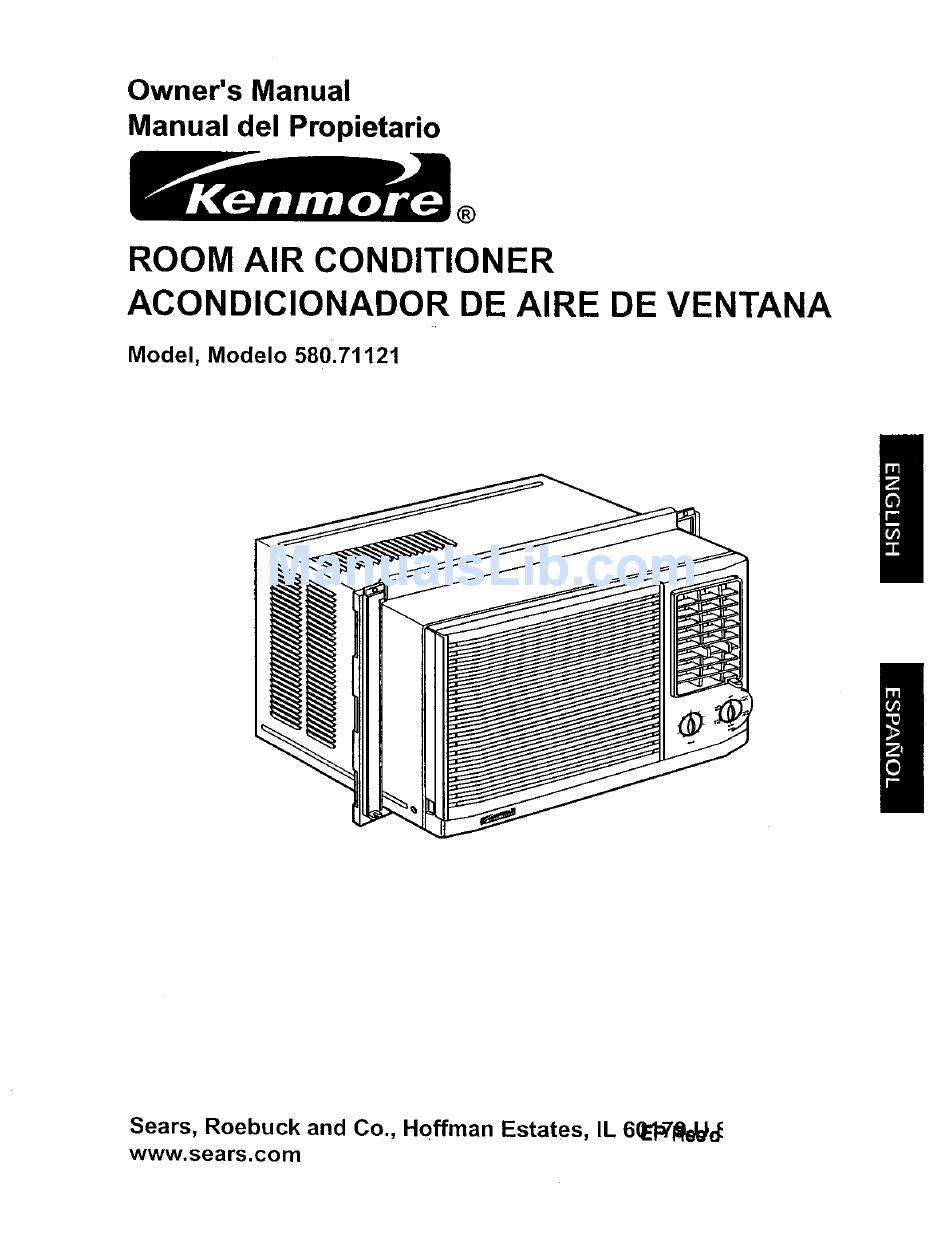

  • Page 1 Owner's Manual Manual del Propietario ROOM AIR CONDITIONER ACONDICIONADOR Model, Modelo 580.71121 Sears, Roebuck and Co., Hoffman Estates, www.sears.com ® DE AIRE DE VENTANA IL 6qEWIg_et_...
  • Page 2: Table Of Contents

    (consisting of refrigerant, connecting tubing, and compressor), if defective in material or workmanship. Features ... Using the Air Conditioner ... 10 Air Conditioner Features ... 11 MAINTENANCE Air Filter Cleaning ..4 Air Conditioner Cleaning ... 12 How to Remove the Front Grille ... 12 How to Replace the Front Grille ...
  • Page 3: Safety

    IMPORTANT SAFETY The safety instructions betow wilt tell you how to use your room air conditioner damage to your ROOM AIR CONDITIONER. FOR YOUR SAFETY Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.
  • Page 4: Electrical Requirements

    OBSERVE ALL LOCAL CODES AND ORDINANCES. DO NOT, UNDER ANY CIRCUMSTANCES, REMOVE THE POWER SUPPLY CORD GROUND PRONG. ELECTRICAL GROUND IS REQUIRED ON THIS APPLIANCE. A 115-volt 60 Hz, AC only, 15A fused and properly grounded electrical supply is required. A time delay fuse or time delay circuit breaker is recommended.
  • Page 5: Installation

    27 to 39 inches (686mm to 990mm) (FIG. 1). Lower sash must open sufficiently to allow a clear vertical opening of 16 inches (406ram). Side louvers and the rear of the air conditioner must have clear air space to allow enough airflow through the condenser for heat removal.
  • Page 6: Installation

    Windows used for installation must be strong enough to support the weight of the air conditioner, Good installation with special attention to the proper position of the unit will lessen the chance that service will be needed.
  • Page 7 The air conditioner water through the drain pipe. (FIG. 15) DRAIN_ BASEPANBoTroM Slide the air conditioner into the cabinet. (FIG. 16) FIG. 11 CAUTION: For security purposes, reinstall side screws tou removed in step 1. Track...
  • Page 8: Removal From Window

    • Remove cabinet from windowopening. • Place air conditionerintocabinet.Reinstallside screws and Front Grille. • Place unit and all assemblyhardware in air conditioner shipping carton, and store in clean, dry place. FIG, 21 • Air conditioners covered in this manual pose an excessive weight hazard.
  • Page 9: Operation

    This is the result of moisture being picked up from the air in the room and thrown against the air conditioner's fan. This is normal and should not be cause for concern.
  • Page 10: Features

    1. Plug in the air conditioner.(To hazards, do not use an extension cord or an adapter plug.) 2. Set the exhaust vent to the CLOSE position. 3. Set the TEMP Control to the coolest setting.
  • Page 11: Air Conditioner Features

    (FIG. 26) VENT CONTROL The Vent Control allows the air conditioner recirculate inside air (CLOSE) or exhaust air to the outside (OPEN). (FIG. 27) • The CLOSE position is used when maximum cooling is desired.
  • Page 12: Maintenance

    • Wash the Air Filter under the faucet with warm water• Be sure to shake off all the water before replacing the filter. (FIG. 30), AIR CONDITIONER CLEANING Clean the front grille and inlet grille by wiping with a cloth dampened Kna mild detergent solution.
  • Page 13: Troubleshooting

    BEFORE CALLING FOR SERVICE Check the following list to be sure a service call is really necessary. A quick reference to this manual may help you avoid an unneeded service call. THE AIR CONDITIONER WILL NOT OPERATE Check if... Wall Pfu9disconnected.
  • Page 14: Repair Parts

    Room Air Conditioner To order Parts call Toll Free Model No. 580.71121100 1-800-4-MY-HOME®(1-800-469-4663) CAUTION: Use the Kenmore part number on all orders, not the illustration number. CABINET & FRONT GRILLE ASS'Y 11/00 - 14 -...
  • Page 15 CAUTION: Use the Kenmore part number on all orders, not the illustration CABINET POS. NO 1 - A 2 - A 3 - A 4 - A 5 - A 6 - A 7 - A 8 - A 9 - A...
  • Page 16 580.71121100 CAUTION: Use the Kenmore part number on all orders, no_tt t he illustration number. CONTROL BOX ASS'Y 10-B 11/00 - 16 -...
  • Page 17 CAUTION: Use the Kenmore part number on all orders, not the illustration number. POS. NO 1- B 7- B 10-B # = Functional Parts * = Non-illustrated Parts 580.71121100 CONTROL BOX ASS'Y PART NO DESCRIPTION 4994AR1494D CONTROLBOX 0CZZA20001M CAPACITOR 4H00442F...
  • Page 18 580.71121100 CAUTION: Use the Kenmore part number on all orders, no__t the illustration number. AIR HANDLING & CYCLE PARTS 12-C 14-C 20-C 10-C 11-C 13-C 10-C 18-C 15-C Y;_c 19-C 16-C 11/00 - 18 -...
  • Page 19 CAUTION: Use the Kenmore part number on all orders, not: the illustration number. AIR HANDLING POS. NO 1 - C 2 - C 3 - C 4 - C 5 - C 6 - C 7 - C 8 - C...
  • Page 20 CAUTION: Use the Kenmore part number on all orders, no.__tt COMPRESSOR 7_° 4-D --_ 3_° 1_o _t 11/00 580,71121100 the illustration number. PARTS 14-D 12-D - 20 - --13-D 11-[...
  • Page 21 CAUTION: Use the Kenmore part number on all orders, no__tt the illustration number. COMPRESSOR POS. NO PART NO 4H00982C 2- D 2520UKPC2CA 3- D 4H01811C 4- D 4986U-L001G 7- D 9- D 10-D 11-D 12-D 13-D 14-D # = Functional Parts...
  • Page 22 580.71121100 CAUTION: Use the Kenmore part number on all orders, not the illustration number, INSTALLATION KIT ASS'Y 11/00...
  • Page 23 CAUTION: Use the Kenmore part number on all orders, not the illustration number. INSTALLATION POS. NO 1 - E 2 - E 3 - E 4 - E 5 - E 6 - E # = Functional Parts * = Non-illustrated Parts 580.71121100...
