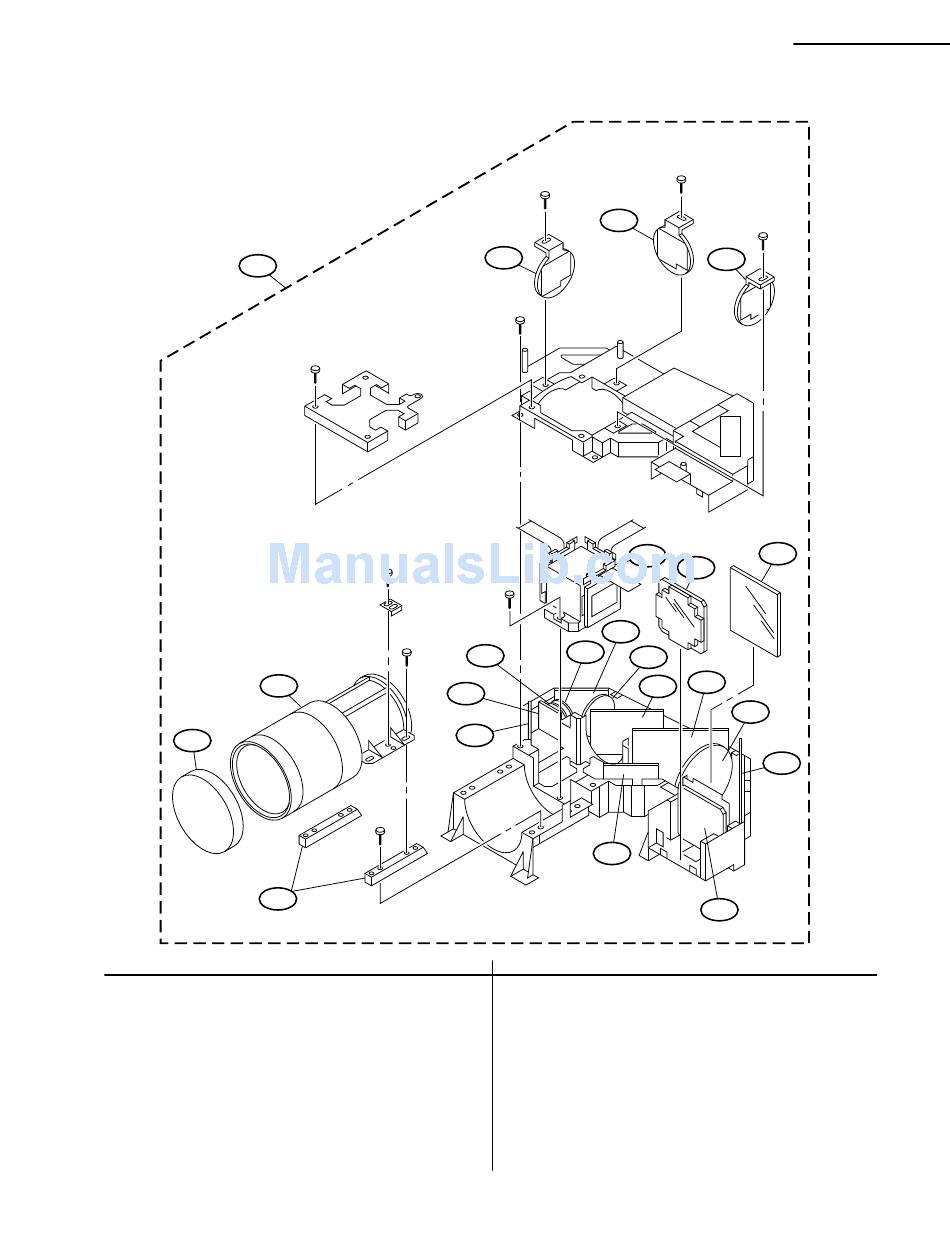

5-4. OPTICAL UNIT BLOCK
151
159
160
158
Rf.NO.
PART NO.
DESCRIPTION
151
1-758-290-11 OPTICAL UNIT
152
9-880-349-01 POLARIZATION PLATE (R)/
CONDENSER LENS
153
9-880-347-01 POLARIZATION PLATE (G)/
CONDENSER LENS
154
9-882-678-01 POLARIZATION PLATE (B)/
CONDENSER LENS
155
9-880-346-01 PS CONVERTER
156
9-880-344-01 FLYEYE LENS A
157
A-1501-465-A PRISM BLOCK ASSY
158
9-880-355-01 SPACER, COMPLETE
159
9-882-677-01 PROJECTION LENS
160
9-880-361-01 LENS CAP
VPL-S900E, VPL-S900M, VPL-S900U
152
164
163
162
161
REMARK
Rf.NO.
PART NO.
152-171
161
* 9-880-353-01 MIRROR B
162
* 9-880-360-01 FILTER, RED
163
* 9-880-359-01 LENS C, RELAY
164
* 9-880-358-01 LENS B, RELAY
165
* 9-880-357-01 LENS A, RELAY
166
* 9-880-351-01 DICHROIC MIRROR (G)
167
* 9-880-350-01 DICHROIC MIRROR (B)
168
* 9-880-356-01 MAIN CONDENSER LENS
169
* 9-880-352-01 MIRROR A
170
* 9-880-345-01 FLYEYE LENS B
171
* 9-880-354-01 MIRROR C
153
154
155
157
156
161
165
167
166
168
169
171
170
DESCRIPTION
OPTICAL UNIT
REMARK
5-5
