Exploded Views - Sony VPL-S900U Service Manual

Lcd data projector.
Hide thumbs

Advertisement

XXX
NOTE :
• Items with no part number and no description are not stocked be-
cause they are seldom required for routine service.
• The construction parts of an assembled part are indicated with a
collation number in the remarks column.
• Items marked " * " are not stocked since they are seldom required
for routine service. Some delay should be anticipated when order-
ing these items.
VPL-S900E, VPL-S900M, VPL-S900U

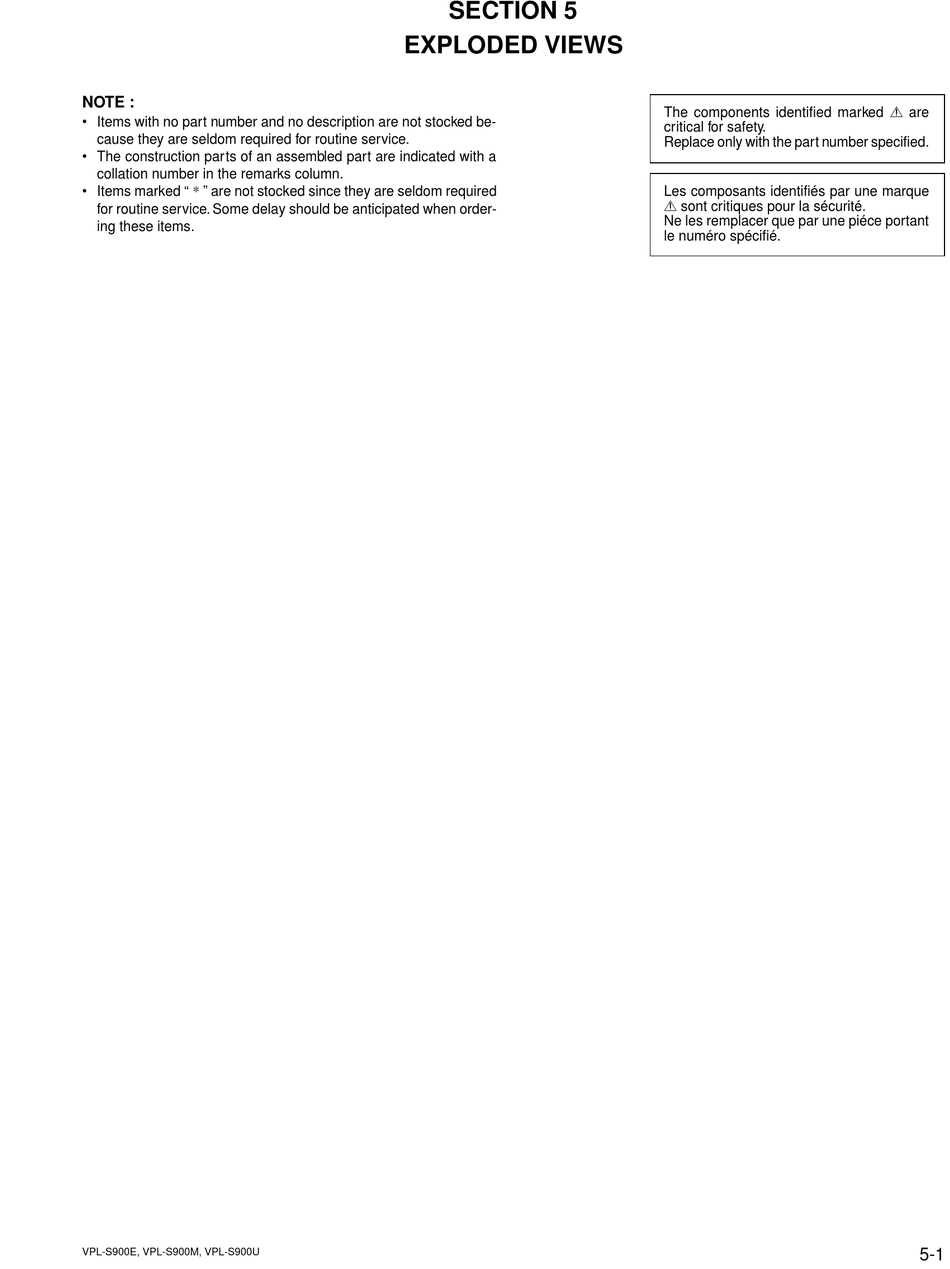

SECTION 5

EXPLODED VIEWS

The components identified marked ! are
critical for safety.
Replace only with the part number specified.
Les composants identifiés par une marque
! sont critiques pour la sécurité.
Ne les remplacer que par une piéce portant
le numéro spécifié.
XXX
5-1
