INSTALLATION
NOTE: Before installation disconnect power from all devices
1.
CONNECT SOURCE Use Vision HDMI cables to ensure quality
2.
CONNECT DISPLAY If specific EDID is required set it now
3.
CONNECT AUDIO OUTPUT If using the audio output connect it now
4.
TURN DISPLAY ON
5.
TURN TC2-HDMIAUD ON
6.
TURN SOURCE ON
After a few moments the link LED will light. If there is no light check connection and try
different cables.
EDID
This product has a library of 16 built-in EDID options. The EDID
handshake tells the source device what the native resolution of the
display is so it can output the correct resolution.
EDID settings can help negotiate the HDMI handshake in certain
situations and may speed up switching when connected to a TV receiver.
To change EDID settings
1.

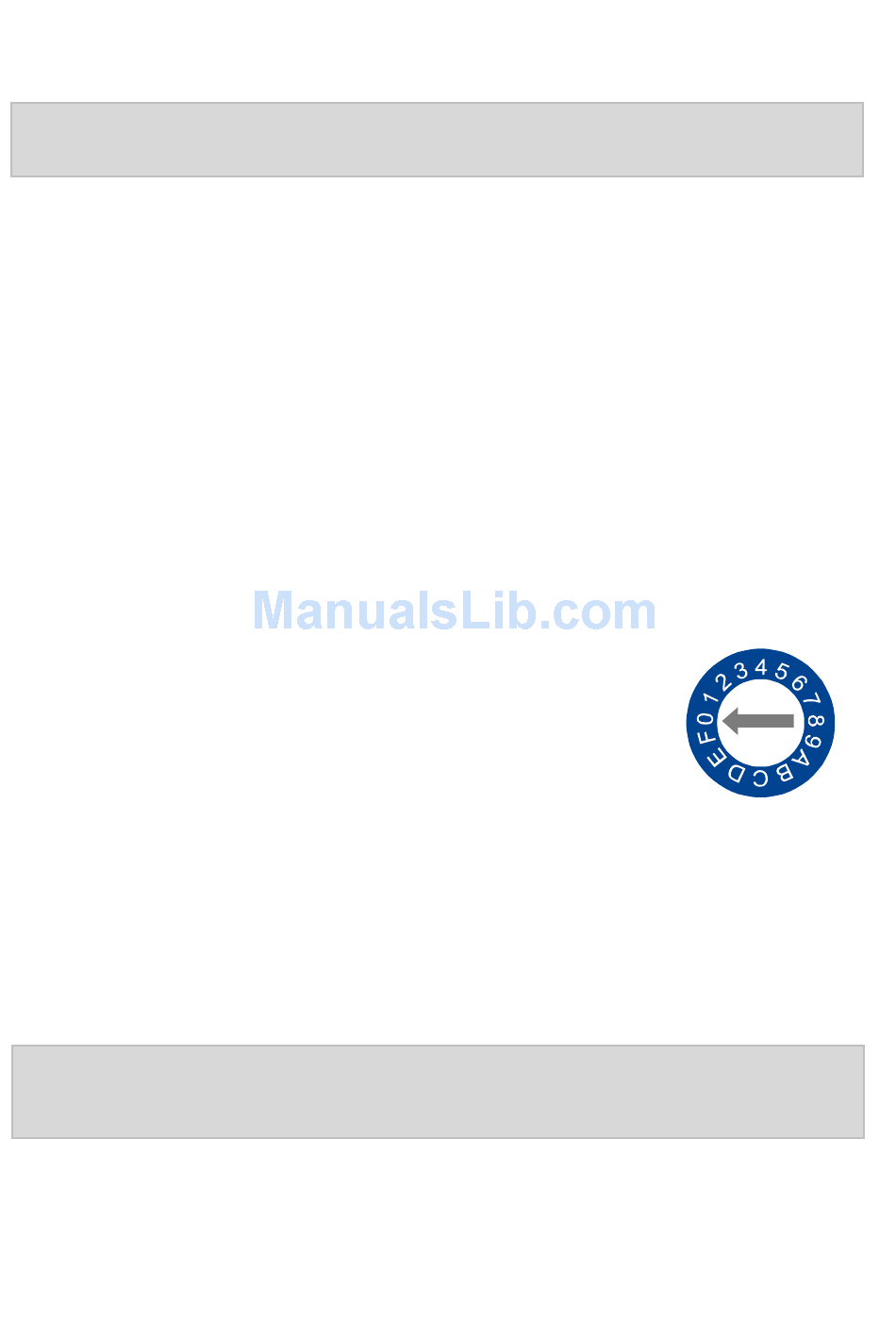

Use screwdriver to turn rotary dial
2.
The device will renegotiate the new handshake within a few seconds
3.
If selecting an EDID from the library the source device will see the TC2-HDMIAUD EDID
instead of the display's EDID.
Note: If your display is not capable of accepting the video resolution or audio type selected you
may not see an image or hear sound. Choose a compatible EDID or use the default setting.
