OVERVIEW
This product has two functions:
ACTIVE EXTENDER
Joins HDMI cables together.
•
Maximum HDMI cable length: 15m (50 feet)
•
Daisy-chain up to three, total overall length with 15m cables: 60m (200 feet)
•
Auto-adjustment of equalization, buffering and amplification
•
Internal library can be used to solve HDCP and EDID compatibility issues
•
AUDIO EXTRACTOR
Modifies EDID signal so that the source sends a stereo signal
•
De-embeds audio as 2 channel (stereo) analogue signal
•
Does not down-mix multi-channel PCM, Dolby, DTS, or HD audio signals.
•

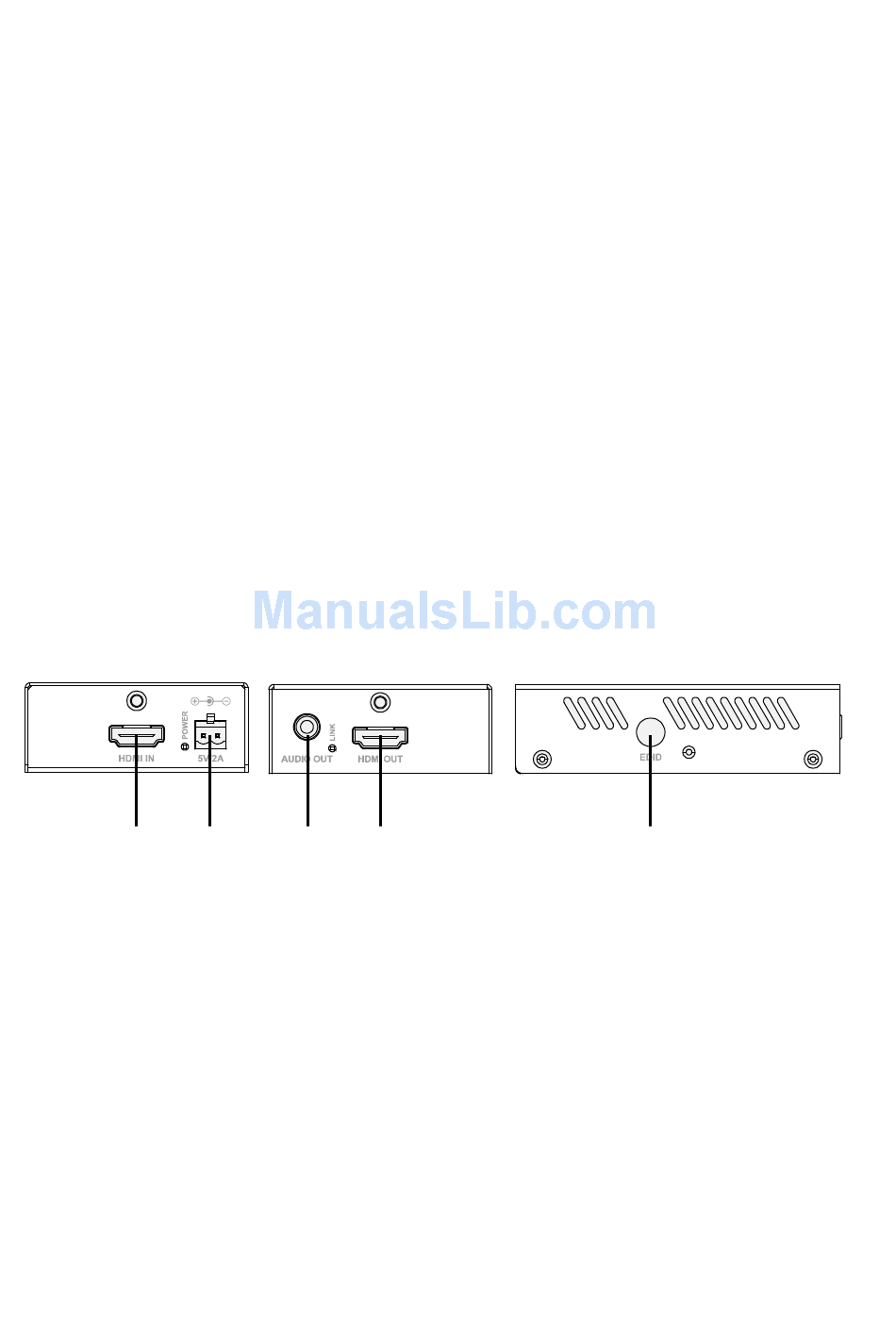

FRONT AND REAR PANELS

Front Panel
1
1. HDMI IN
2. POWER INPUT Phoenix connector connects to 5V/2A DC power supply
3. AUDIO OUT
4. HDMI OUT
5. EDID DIAL
Back Panel
2 3
Full-sized HDMI connector connects to source device
3.5mm Minijack connects to an amplifier line-level input
Full-sized HDMI connector connects to display device
Adjusts EDID settings
Side Panel
4 5
