4.6.1. IP settings

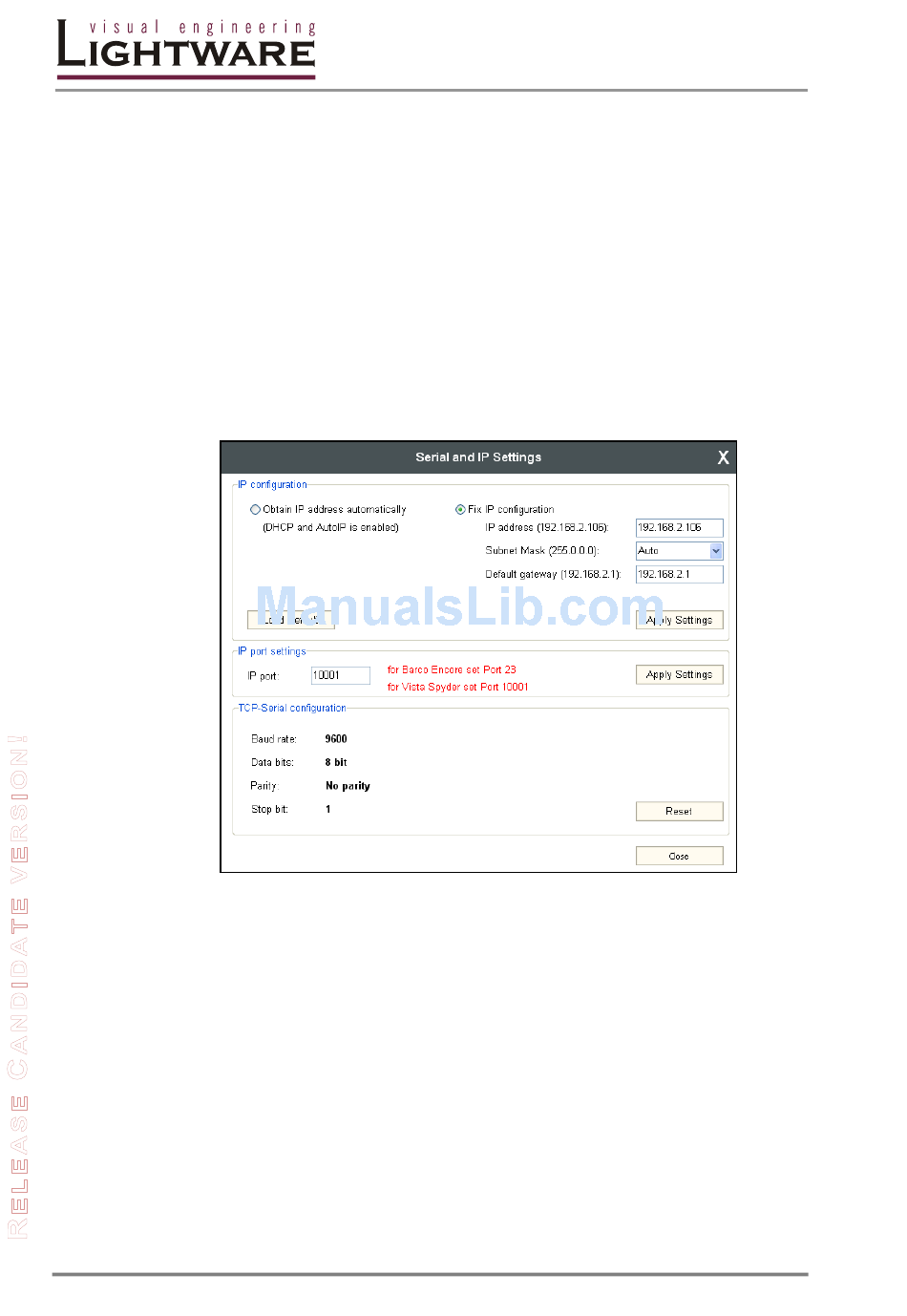

Obtain IP address automatically
By selecting the "Obtain IP address automatically" option, the matrix gets the IP
address from the DHCP server on the LAN, or if DHCP server is not present, it gets
an AutoIP address from the 169.254.xxx.xxx domain.
Fix IP configuration
In this case, the matrix has an IP address configuration set up by the
user/administrator. The earlier saved configuration is shown in brackets.
Step 1. Select the "Fix IP configuration" option.
Step 2. Type in the IP address, select the desired subnet mask and type in the
Step 3. Click on "Apply Settings" button. Depending on the modified settings, you
The "Load Default" button loads the factory default IP settings to the fields, which
Info:
contain a fix configuration:
IP Address:
Subnet Mask:
Default Gateway: 0.0.0.0
IP port settings
The router can be accessed via this TCP/IP port number with TCP connection. This
number can be modified to any number between 1025 - 65535 except the
followings: 9999, 14000 - 14009, 30704, and 30718.
The port 23 is accepted for Barco Encore. To use the matrix with the Vista Spyder
set port to 10001.
Info: The IP port number is 10001 by default.
Page 38 / 78
gateway IP address.
might need to restart the router and the Matrix Controller Software.
192.168.254.254
255.255.0.0
Section 4. Software control – Using Lightware Matrix Controller
