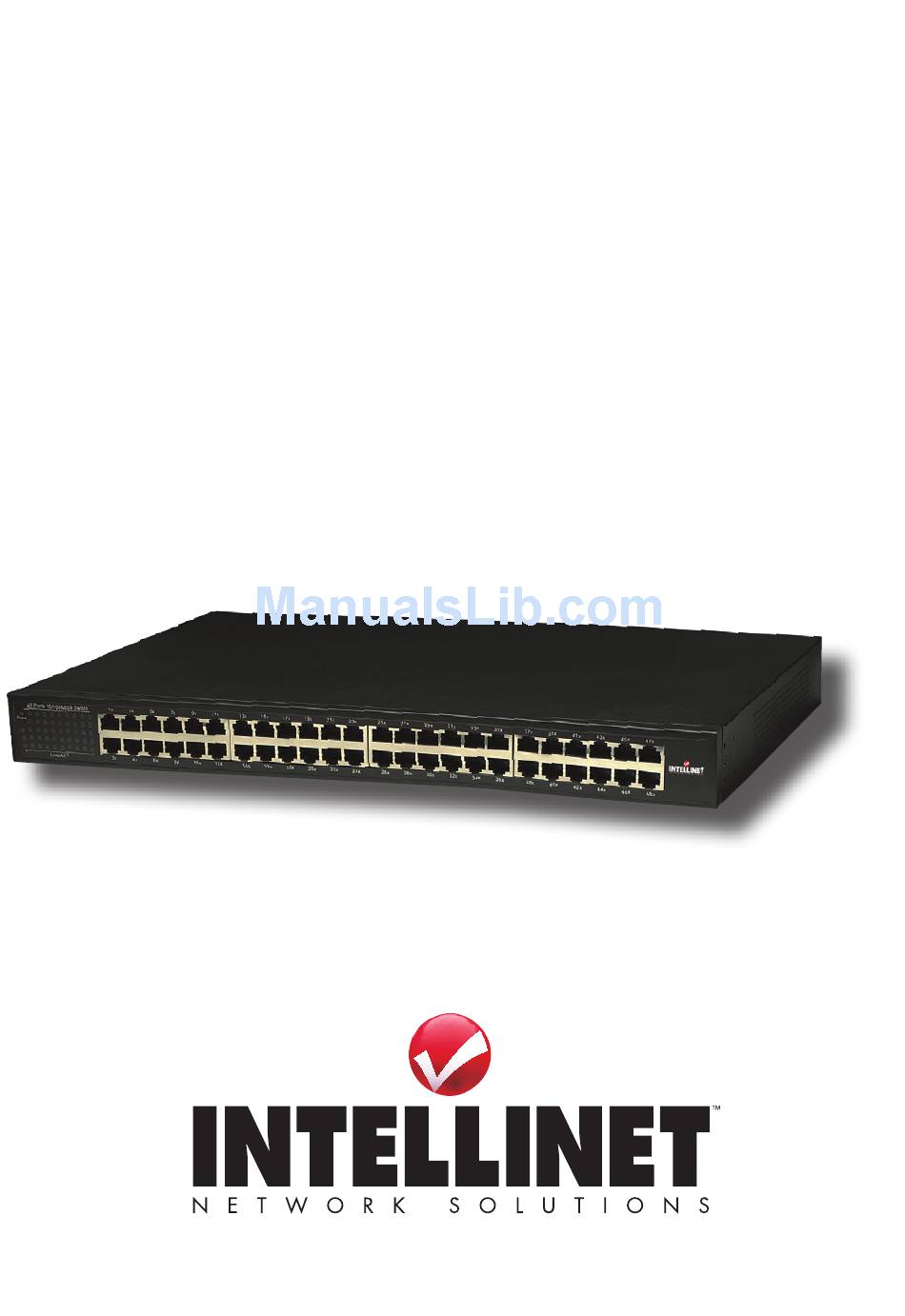

- Page 1 Fast EthErnEt rackmount switch usEr manual Model 522618 INT-522618-UM-0909-01...
- Page 3 Thank you for purchasing the INTellINeT NeTWoRK SolUTIoNS ™ Fast ethernet Rackmount Switch, Model 522618 (48-Port). This high-performance 10/100 Mbps lAN switch — with auto-sensing and auto-negotiation on every port — provides you with a space-saving, cost-effective design that allows you to connect multiple devices to your local area network while only taking up one slot in your network rack or cabinet.
- Page 4 ports & indicators Ports The RJ45 connections on the front panel (partially shown in the image below) match workstations, servers or other network devices to 10/100 Mbps switching ports that sense 10/100Mbps speed and automatically negotiate full/half duplex mode, allowing you to connect the switch to 10Base-T and 100Base-TX devices.
- Page 5 PCs, Servers, Hubs and Other Switches, and Other Devices All of the RJ45 ports on the switch support Auto-MDI/MDI-X, which allows you to use straight-through or crossover cable to connect it to workstations, hubs and such. Connect one end of the network cable to an RJ45 port on the switch and connect the other end to an RJ45 port on the network device.
-
Page 6: Specifications
spEciFications Standards • IEEE 802.3 (10Base-T Ethernet) • IEEE 802.3u (100Base-TX Fast Ethernet) • IEEE 802.3x (Flow Control and Backpressure) General • Media support: 10Base-T Cat3, 4, 5 UTP/STP RJ45; 100Base-TX Cat5 UTP/STP RJ45 • Ports: 48 10/100Base-TX RJ45 ports •... - Page 8 INTELLINET NETWORK SOLUTIONS offers a complete line ™ of active and passive networking products. Ask your local computer dealer for more information or visit www.intellinet-network.com Copyright © INTELLINET NETWORK SOLUTIONS All products mentioned are trademarks or registered trademarks of their respective owners.
