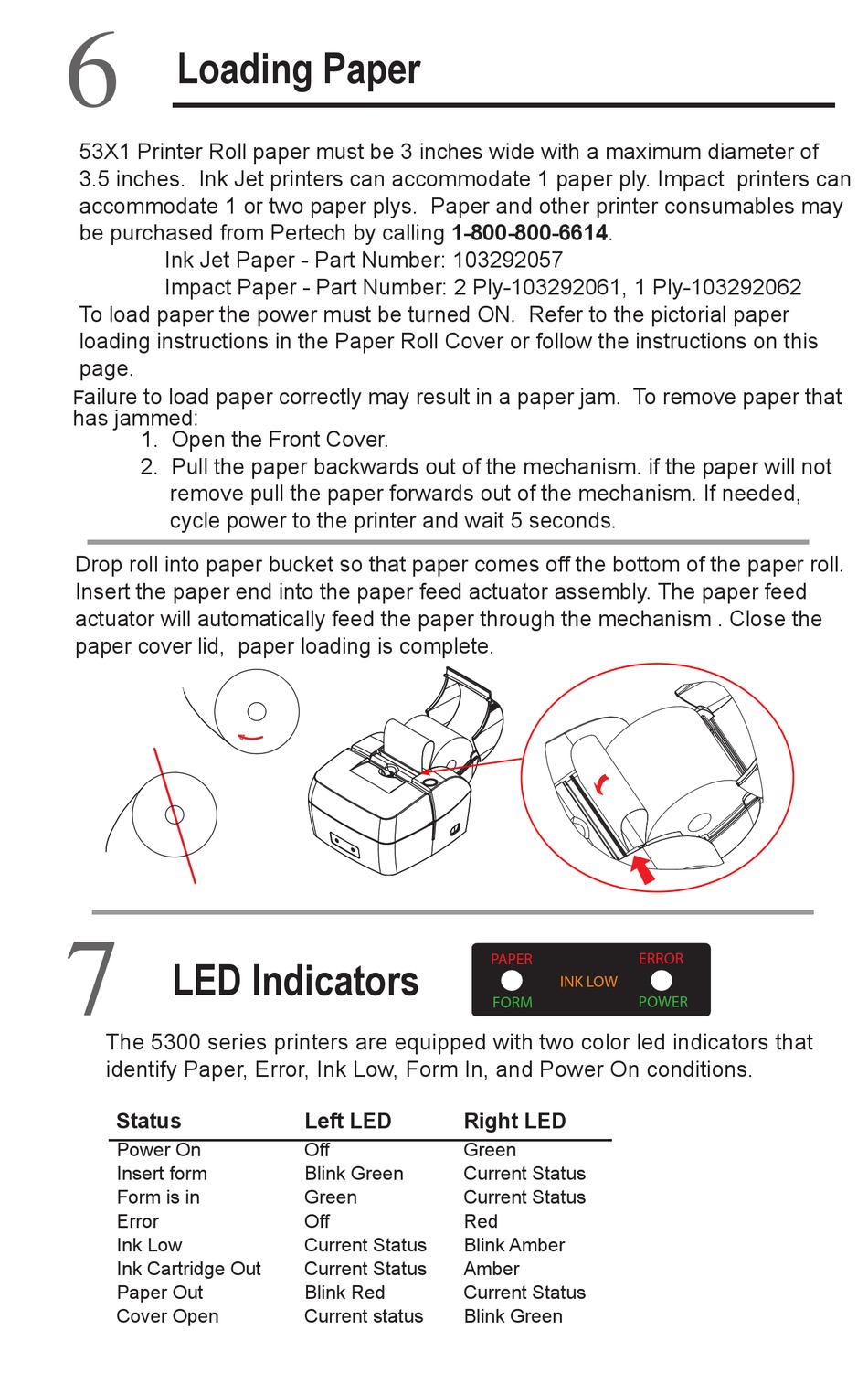

Loading Paper

53X1 Printer Roll paper must be 3 inches wide with a maximum diameter of
3.5 inches. Ink Jet printers can accommodate 1 paper ply. Impact printers can
accommodate 1 or two paper plys. Paper and other printer consumables may
be purchased from Pertech by calling 1-800-800-6614.
Ink Jet Paper - Part Number: 103292057
Impact Paper - Part Number: 2 Ply-103292061, 1 Ply-103292062
To load paper the power must be turned ON. Refer to the pictorial paper
loading instructions in the Paper Roll Cover or follow the instructions on this
page.
ailure to load paper correctly may result in a paper jam. To remove paper that
F
has jammed:
1. Open the Front Cover.
2. Pull the paper backwards out of the mechanism. if the paper will not
remove pull the paper forwards out of the mechanism. If needed,
cycle power to the printer and wait 5 seconds.
Drop roll into paper bucket so that paper comes off the bottom of the paper roll.
Insert the paper end into the paper feed actuator assembly. The paper feed
actuator will automatically feed the paper through the mechanism . Close the
paper cover lid, paper loading is complete.
7

LED Indicators

The 5300 series printers are equipped with two color led indicators that
identify Paper, Error, Ink Low, Form In, and Power On conditions.
Status
Power On
Insert form
Form is in
Error
Ink Low
Ink Cartridge Out
Paper Out
Cover Open
Left LED Right LED
Off Green
Blink Green Current Status
Green Current Status
Off Red
Current Status Blink Amber
Current Status Amber
Blink Red Current Status
Current status Blink Green
�����
�����
��� ���
�����
����
