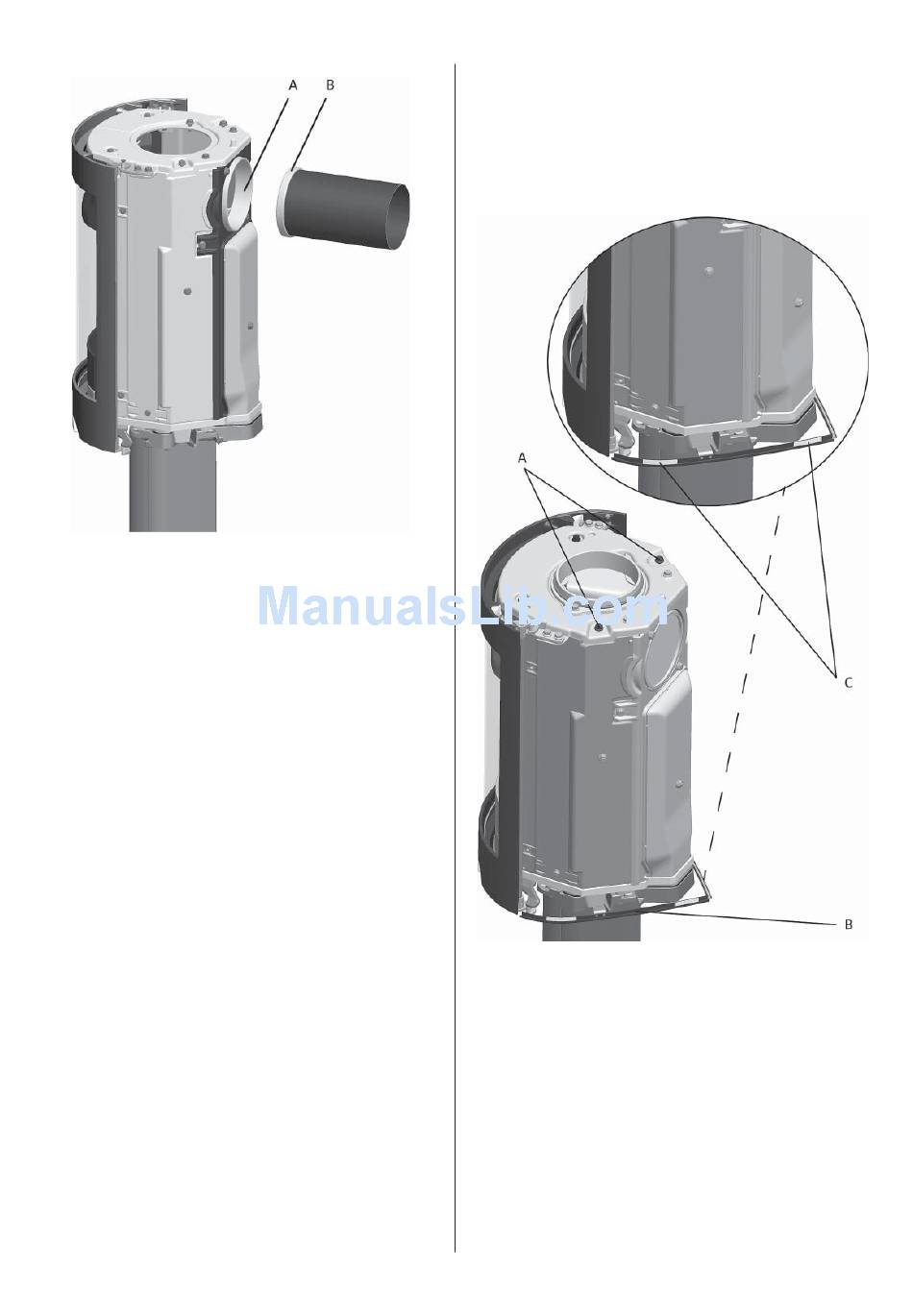

Fig. 14
7. Unscrew the cover for the rear outlet on the inside of the burn
chamber and take it out through the door opening.
8. Attach the smoke outlet (Fig. 14 A) to the inside of the burn
chamber where the cover was. Note that it must be turned so
that the flue pipe can be pushed into place from the outside.
9. Place the gasket (Fig. 14 B) from the bag of screws around
the edge of the flue pipe and push it into the smoke outlet.
10. Install the smoke outlet cover where the outlet was.
11. Refit the exhaust deflector and baffle.
NB: It is important for the joints/flue pipes to be sealed
completely. Air leaks may prevent them from operating properly.
12
4.4 Assembling the sides
Aluminium or glass sides
If you are installing aluminium sides and the flue pipe is rear-
mounted, you will need to saw holes for this using a hacksaw
blade.
Fig. 15
1. Loosen the screws on the top (Fig. 15 A).
2. Attach the lower bracket (Fig. 15 B) with the screw (Fig. 6 A)
from the bag of screws.
3. If you are installing aluminium sides, glue the gaskets (Fig. 15 C)
onto all the brackets.
4. Move the aluminium/glass side into position in the section.
NB! If there is a crack between the aluminium panels and
the brackets, an extra gasket (Fig. 15 C) should be glued to
the bracket at the place where the crack is.
5. Move the upper section into position and secure loosely
with screws.
6. Do the same on the opposite side.
7. Adjust the sides at the back edge.
8. Refit any parts that have been removed from the product.
9. Finally, tighten all the screws.
