JAI AM-200CL User Manual

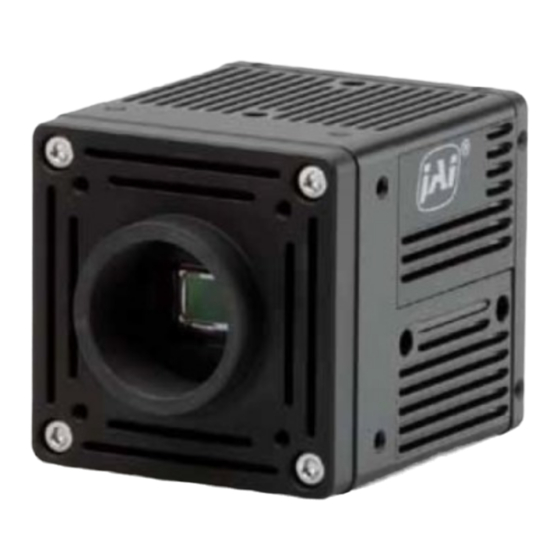

2mp digital progressive scan monochrome and color camera
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
User Manual
AM-200CL
AB-200CL
2MP Digital Progressive Scan
Monochrome and Color Camera
Document Version: 1.3
AMAB-200CL_Ver.1.3_Mar2012
1027E-1102
