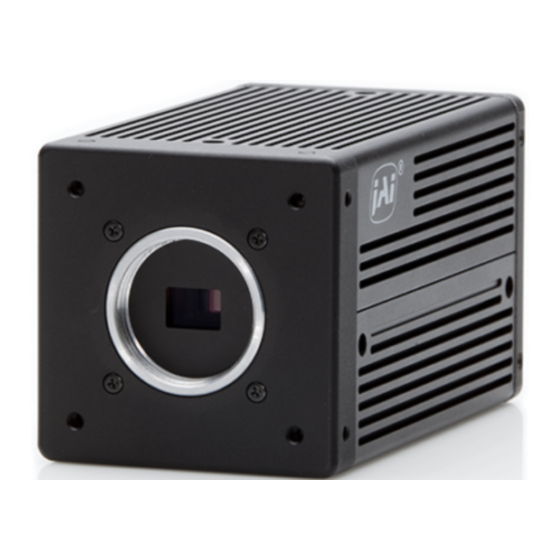

Digital 2ccd progressive scan hdr / high frame rate camera
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
User's Manual
AD-081GE
Digital 2CCD Progressive Scan
HDR / High Frame Rate Camera
Document Version: Ver.1.1
AD-081GE_Ver.1.1_Dec09
1002E-0912

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AD-081GE and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for JAI AD-081GE

Summary of Contents for JAI AD-081GE

  • Page 1 User's Manual AD-081GE Digital 2CCD Progressive Scan HDR / High Frame Rate Camera Document Version: Ver.1.1 AD-081GE_Ver.1.1_Dec09 1002E-0912...

  • Page 2: Warranty

    JAI Ltd., Japan and may only be used by the purchasers of the product. JAI Ltd., Japan makes no warranty for the use of its product and assumes no responsibility for any errors which may appear or for damages resulting from the use of the information contained herein.
  • Page 3 Supplement The following statement is related to the regulation on “ Measures for the Administration of the control of Pollution by Electronic Information Products “ , known as “ China RoHS “. The table shows contained Hazardous Substances in this camera. mark shows that the environment-friendly use period of contained Hazardous Substances is 15 years.

  • Page 4: Table Of Contents

    1. General ... 6 2. Camera nomenclature ... 6 Main Features ... 7 Locations and functions ... 8 Pin configuration ... 9 5.1. 12-pin Multi-connector (DC-in/GPIO/Iris Video) ... 9 5.2. Digital Output Connector for Gigabit Ethernet ... 9 5.3. 6-pin Multi-connector (LVDS IN and TTL IN/OUT) ... 9 5.4.
  • Page 5 10.2.3 Disable Firewalls ...27 10.2.4 Enabling Jumbo Frame ...27 10.2.5 Setting Receive Descriptors ...29 10.2.6 Interrupt Moderation rate ...30 10.2.7 Calculating and setting Inter-Packet Delay ...30 10.2.8 Confirm the Filter Driver is used...31 10.2.9 Others ...32 10.2.10 Note for 100BASE-TX connection ...32 10.3.
  • Page 6 Specifications ...64 12.1. Spectral response ...64 12.2. Specifications Table ...65 Register Map ...67 Appendix ...77 Precautions ...77 Typical Sensor Characteristics ...77 Caution when mounting a lens on the camera ...77 Caution when mounting the camera ...78 Exportation ...78 References ...78 Change History ...80 User's Record ...81...

  • Page 7: General

    The AD-081GE provides a frame rate of 30 frames/second at full resolution at normal mode. Using partial scan, the camera can achieve faster frame rates up to 86 fps (1/8 partial scan).

  • Page 8: Main Features

    LVAL synchronous/asynchronous operation (auto-detect)  Auto-iris lens video output for lens control  Programmable GPIO with opto-isolated inputs and outputs  Comprehensive software tools and SDK for Windows XP/Vista (32 bit “x86” and 64 bit “x64” JAI SDK Ver. 1.2.1 and after )

  • Page 9: Locations And Functions

    Mounting holes  *1) : AD-081GE is based on a beam-splitting prism. For optimal performance, lenses designed for 3CCD cameras should be used with this camera. Rear protrusion of the C-mount lens must be less than 4mm to avoid damage to the prism.

  • Page 10: Pin Configuration

    Pin configuration 5.1. 12-pin Multi-connector (DC-in/GPIO/Iris Video) Type: HR10A-10R-12PB (Hirose) male. (Seen from the rear of camera) Fig. 2. 12-pin connector. 5.2. Digital Output Connector for Gigabit Ethernet Type: RJ-45 : HFJ11-1G02E-L21RL or equivalent The digital output signals follow the Gigabit Ethernet interface using an RJ-45 conforming connector.

  • Page 11: Dip Switches

    5.4. DIP switches DIP switches are located inside the camera. When the top cover is removed, please pay careful attention so that the boards inside may not be damaged. SW100 for selecting EEN output 5.4.1 Trigger input 75 ohms termination Trigger input can be terminated with 75 ohms if DIP switch SW600 is selected as described below.

  • Page 12: Input And Output Circuits

    Input and output circuits In the following schematic diagrams the input and output circuits for video and timing signals are shown. 6.1. Iris Video output This signal can be used for lens iris control in Continuous mode. The signal is taken from the CCD sensor output through the process circuit but as the reverse compensation is applied, the signal is not influenced by the gain settings.

  • Page 13: System Configuration

    Fig.8 System configuration It should be noted that the hub being used should comply with Gigabit Ethernet. When JAI SDK control tool is executed, AD-081GE is recognized as like two cameras. #0 represents one of the imagers and #1 represents the other.

  • Page 14: Gpio (Inputs And Outputs)

    GPIO (Inputs and outputs) 8.1. Overview All input and output signals pass through the GPIO (General Purpose Input and Output) module. The GPIO module consists of a Look-Up Table (LUT – Cross-Point Switch), 2 Pulse Generators and a 12-bit counter. In the LUT, the relationship between inputs, counters and outputs is governed by internal register set-up.

  • Page 15: Lut (Cross Point Switch)

    GPIO settings for LINE SELECTOR in the JAI Camera Control tool and inputs to the LUT on the left side show GPIO settings for LINE SOURCE in the JAI Camera Control tool. Refer to Chapter 8.2 GPIO inputs/Outputs table.

  • Page 16: Recommended External Input Circuit Diagram For Customer

    8.1.5 Recommended External Input circuit diagram for customer Fig.11 8.1.6 Recommended External Output circuit diagram for customer Fig.12 External Input Circuit、OPT IN 1 and 2 External Output Circuit, OPT OUT 1 and 2 +3.3V...

  • Page 17: Optical Interface Specifications

    8.1.7 Optical Interface Specifications The relation of the input signal and the output signal through the optical interface is as follows. Input Line Voltage Range Input Current Minimum Input Pulse Width to Turn Output Load(Maximum Current) Minimum Output Pulse Width Time Delay Rise Rise Time Time Delay Fall...

  • Page 18: Inputs And Outputs Table

    8.2. Inputs and outputs table Trig. Trig. Trig. LVAL IN × × DVAL IN × × FVAL IN × × × × EEN IN 1 LVAL IN × DVAL IN × FVAL IN × × EEN IN 2 OPT IN ○...

  • Page 19: Configuring The Gpio Module (Register Settings)

    8.3. Configuring the GPIO module (register settings) 8.3.1 Input /Output Signal Selector GPIO is used to determine which signal is assigned which terminal. For the details, please refer to Register Map, Digital I/O, Acquisition and Trigger Control, and Pulse Generator. Line Selector Line Source Line Polarity...

  • Page 20: Pulse Generators (20 Bit X 4)

    Clock Source=Pixel Clock ( 60MHz) Clock Pre-scaler = 2400 ⇒　25KHz Start Point = 0 Pulse Generator 0 (GPIO Port 1 ) The following shows JAI SDK Camera Control Tool for setting Pulse Generators. End Point End Point Length Length Pulse Generator Clear = 4: Rising Edge 99 100 101 102 103 1/25KHz = 40µs...

  • Page 21: Gpio Programming Examples

    8.4. GPIO programming examples 8.4.1 GPIO Plus PWC shutter Example: 20µs unit pulse width exposure control (PWC). Pixel clock is 33.75MHz. 675 clocks (775-100) equal 20µs. These are the settings for Imager 1. For Imager 2, trigger 2-0 should be set in the same manner. Address Register 0xA040...

  • Page 22: Internal Trigger Generator

    8.4.2 Internal Trigger Generator Example: Create a trigger signal and trigger the camera. These are the settings for Imager 1. For Imager 2, trigger 2-0 should be set in the same manner. Address Register 0xA040 Trigger Mode 0xB000 Clock Choice ...

  • Page 23: Gige Vision Streaming Protocol (Gvsp)

    Streaming Protocol (GVSP) 9.1. Digital Video Output (Bit Allocation) Although the AD-081GE is a digital camera, the image is generated by an analog component, the CCD sensor. The table and diagram below show the relationship between the analog CCD output level and the digital output.

  • Page 24: Gvsp_Pix_Mono10_Packed (10 Bit)

    4 5 6 7 8 9 10 11 0 1 2 3 0 1 2 3 4 5 6 7 8 9 10 11 4 5 6 7 8 9 10 11 0 1 2 3 0 1 2 3 4 5 6 7 8 9 10 11 Address Internal Name 0xA410 Pixel Format type AD-081GE 3 Byte 3 Byte 3 Byte Access...

  • Page 25: Functions And Operations

    Functions and Operations 10.1. GigE Vision Standard Interface The AD-081GE is designed in accordance with the GigE Vision standard. Digital images are transmitted over Cat5e or Cat6 Ethernet cables. All camera functions are also controlled via the GigE Vision interface.

  • Page 26: Video Data Rate (Network Bandwidth)

     In the case of using Jumbo Frames (16K), the packet data will be improved by 2 %.  For AD-081GE, the jumbo frame size can be a maximum 16020 Bytes (factory setting is 1476 Bytes). The NIC must also be set to support Jumbo Frames (refer to section 10.2.4).
  • Page 27 Regarding data transfer rate, a larger packet size produces a slightly lower data transfer rate. AD-081GE can support a maximum of 16020 byte packets provided the NIC being used has a Jumbo Frames function with a setting of a 16020 bytes or larger.

  • Page 28: 10.2.3 Disable Firewalls

    AD-081GE 10.2.3 Disable Firewalls To ensure proper functions of the JAI SDK & Control Tool, all firewalls must be disabled. This also includes the Windows firewall. Click [Start], [Control Panel] for accessing the Windows firewall configuration. 10.2.4 Enabling Jumbo Frames (1) Click [Start] and click [Control Panel].
  • Page 29 AD-081GE (6) Expand [Network adapters]. (7) Select target NIC, right-click, and click [Properties]. Note: Intel 1000 is used in this example. If different NICs are used, the following setup tabs will likely be different. Follow the tabs associated with the specific NIC used.

  • Page 30: Setting Receive Descriptors

    AD-081GE (9) Select Jumbo Frames property, and select 16128 under Value. (10)Click [OK]. (11)Close [Device Manager]. (12)Close [System Properties] by clicking [OK]. 10.2.5 Setting Receive Descriptors If the Network Connection Properties list contains a property called Receive Descriptors, then change its property to the maximum value supported by the NIC installed in the computer.

  • Page 31: Interrupt Moderation Rate

    Packet Fig.17 Duration of the entire packet, with delay JAI Control Tool has a built in wizard for calculating Inter-Packet Delay. When the Inter-Packet Delay function is activated, a button appears on the right hand side of the bar.

  • Page 32: Confirm The Filter Driver Is Used

    Confirm the Filter Driver is used  The filter driver is installed as an optional function when JAI SDK is installed. If the filter driver is not installed at that time, it can be installed from, All Programs ⇒ JAI SDK ⇒...

  • Page 33: Others

    Depending on the performance of the computer used, the frame rate may be decreased. Confirm the packet size is increased. It can be set in the Camera Control Tool provided in JAI SDK. 10.2.10 Note for 100BASE-TX connection ...

  • Page 34: Basic Functions

    10.3.1 RJ-45 outputs The AD-081GE has two RJ-45 connectors, GigE-1 for BW1 and GigE-2 for BW2. These two signals can be set as synchronous or asynchronous, as well as high frame rate, high dynamic range, or high s/n mode, which are AD-081GE features. In high frame rate, high dynamic range, and high s/n modes, the synchronization of two sensors is automatically set at synchronous.

  • Page 35: High Frame Rate Mode (Double Speed)

    10.3.3 High frame rate mode (Double speed) In this mode, double speed readout (60fps) can be achieved by shifting the exposure timing for each sensor by 1/2 frame. Each signal with 1/2 frame offset is read out from each RJ-45 connector respectively.
  • Page 36 100% Incoming light 100% Incoming light  High dynamic range ( Sync Mode 5) In this mode, 50% of each video level is added to make an output. The formula for the composition process is; where, 1/m: shutter value of BW1 1/n: shutter value of BW2 100% Incoming light...
  • Page 37  High dynamic range ( Sync Mode 6) In this mode, a roughly proportional approach is used which places an emphasis on the image from the slower shutter speed sensor, while confining the highlights from the sensor with the faster shutter to the highest (brightest) bits in the composite output. The formula for the composition process is;...

  • Page 38: High S/N Mode

    10.3.6 PIV ( Particle Image Velocimetry ) mode The AD-081GE has a PIV (Particle Image Velocimetry) mode. This mode provides three (3) consecutive images by one trigger pulse. When the trigger is input, the first exposure on BW1 can be captured, followed quickly by an exposure on BW2. After the exposure on BW2 is completed, a second exposure on BW1 is made.

  • Page 39: Iris Video Output

    In order to activate this function, Fast Dump register should be ON. Full scan Fig.27 Conceptual drawing for partial scan The partial scan mode for AD-081GE is variable. The first line and the last line to be read out can be set. Fig.25 Iris Video output Fast-dump period...
  • Page 40 The variable scan readout is connected with the ROI settings. 1. If ROI is set, these settings are applied to the partial scan settings. 2. If the multi ROI is used, the smallest number of the line and the largest number of the line define the partial scan area.

  • Page 41: Vertical Binning

    Off (no binning) 2:1 binning 10.3.11 Electronic shutter The AD-081GE has programmable exposure and the GenICam standard Exposure Time Abs. Programmable Exposure ◆ Exposure time can be controlled in 1 L unit (42.07µs) from 0L to 792L. As the overhead of 0.5L is added, the actual shutter time is from 0.5L to 791.5L in the range from 0L to 791L.

  • Page 42: Shading Correction

    1/30 10.3.12 Shading correction The AD-081GE features a shading correction circuit that can be used for reducing shading resulting from illumination, lens or prism shading caused by lenses with a wide output aperture. The shading correction circuit divides the image into horizontal and vertical fields, and adjusts these regions in relationship to the image center.

  • Page 43: 10.3.13 Knee Compensation

    Accordingly, the intensity level of BW1 and BW2 should be identical. AD-081GE has a digital gain function for this purpose. Please note that if sync mode is set as Async, the settings of digital gain for BW1 are applied to BW2 settings.

  • Page 44: 10.3.16 Rear Panel Indicator

    Amber : GigE Network:Act ■ Note: When the camera is connected to 10BASE-T, the system is not available. 10.3.17 Test signal generator AD-081GE has a built-in test signal generator. The following options are available: Address Function Read/Write 0xA13C Test stream...

  • Page 45: Sensor Layout And Timing

    10.4. Sensor Layout and Timing 10.4.1 Sensor Layout The CCD sensor layout, with respect to vertical and horizontal pixels used in full frame readout, is shown below. Fig.34 Sensor layout and video output image 1077 Optical Black Lines Reserved Lines Active Pixels 1024(H) x 768(V) Reserved Lines...

  • Page 46: Horizontal Timing

    10.4.2 Horizontal Timing The horizontal timing for Continuous mode, full frame and partial scan is shown below. 1 4 8 L V A L FVAL rising edge F V A L S U B ( 2 0 u s ) 5 9 0 c k 6 7 6 c k E x p o s u r e...

  • Page 47: Vertical Timing

    10.4.3 Vertical Timing The vertical timing for Continuous mode and full frame scan is shown below. F V A L L V A L S U B E x p o s u r e P e r i o d E E N D A T A O U T D V A L...

  • Page 48: Partial Scan (When The Start Line Is Set At 193Rd)

    10.4.4 Partial Scan (when the start line is set at 193rd) The following chart shows the vertical timing for 1/2 height partial scanning which starts at the 193rd line (384 lines). The horizontal timing for partial scan is the same as full scan. Vertical F V A L L V A L...

  • Page 49: Vertical Binning

    10.4.5 Vertical binning Vertical binning combines charge from two adjacent lines, reducing the vertical resolution to half and at the same time increasing frame rate and sensitivity. By activating this function, the frame rate is increased to 50 fps. Vertical timing F VAL L VAL S UB...

  • Page 50: 10.5. Operation Mode

    10.5. Operation Mode AD-081GE has the following 8 operation modes and OB transfer and ROI modes. Continuous Edge Pre-Select Trigger Pulse Width Control Trigger Reset Continuous Trigger PIV (Particle Image Velocimetry) Sequence EPS Delayed readout EPS Delayed readout PWC Smearless...

  • Page 51: Edge Pre-Select (Eps) Trigger Mode

    10.5.2 Edge Pre-Select (EPS) trigger mode An external trigger pulse initiates the capture, and the exposure time (accumulation time) is the fixed shutter speed set by registers. The accumulation can be LVAL synchronous or LVAL asynchronous. The resulting video signal will start to be read out after the selected shutter time.
  • Page 52 Ext. Tri g FVAL LVAL Exposure Pri od ( Exposure) Expos ur e Del ay DATA out 14. 2us Fig.42 Edge Pre-select LVAL asynchronous details Fig.43 Edge Pre-select LVAL synchronous Ext. Tri g FVAL LVAL Exposure Pri od ( Exposure) Exposure Del ay W hen the LVAL Sync Accum .

  • Page 53: Pulse Width Control (Pwc) Trigger Mode

    10.5.3 Pulse Width Control (PWC) trigger mode In this mode the accumulation time is equal to the trigger pulse width. Here it is possible to have a long time exposure. The maximum recommended time is <60 frames. The accumulation is only LVAL async. For timing details, refer to fig.
  • Page 54 Ext. Tri g FVAL LVAL Exposure Pri od ( Exposure) Del ay of Expos ur e St ar t 14. 2us DATA out Fig.46 Pulse Width Control LVAL synchronous details On PWC mode, when “Smearless ON ” is selected, the actual accumulation time is “the trigger pulse width”...

  • Page 55: Reset Continuous Trigger (Rct) Mode

    After the trigger pulse is input, a fast dump readout is performed. In the AD-081GE, this period is 8.32ms which is 198L. The exposure time is determined by the pre-set shutter speed. If no further trigger pulses are applied, the camera will continue in normal mode and the video signal is not output.

  • Page 56: Particle Image Velocimetry

    10.5.5 Particle Image Velocimetry PIV mode is an independent function and is not to be combined with the High Frame Rate function, the High Dynamic Range function, or the normal output mode (Sync or Separate). In this mode, one trigger input provides three consecutive outputs. A strobe light is used for illumination.

  • Page 57: Sequential Trigger Mode (Eps)

    10.5.6 Sequential Trigger Mode (EPS) This mode allows the user to define a preset sequence of up to 10 images, each with its own ROI, Shutter and Gain values. As each trigger input is received, the image data with the preset sequence is output as described below.

  • Page 58: Delayed Readout Eps And Pwc Modes (Eps And Pwc)

    Important Notes:  When this mode is used, at first set the video sending flag to OFF (Acquisition end). Then set the trigger mode to “Continuous”. Then, set the shutter mode to “Sequential Trigger” mode. After setting those functions, set the video sending flag to ON (Acquisition start). ...

  • Page 59: Smearless Mode

    10.5.8 Smearless mode This function can be used to reduce the smear coming from bright parts of the object. This is effective for both EPS and PWC trigger modes. Before the accumulation starts, any charge that is stored in the pixel is dumped by a high-speed transfer. This can reduce the smear at the upper part of the object but the lower part is unaffected.

  • Page 60: Optical Black Transfer Mode

    (Partial Scan) V Binning Note: The menu for ON or OFF of OB transfer mode is found on the Image Format Control of the JAI SDK Camera Control Tool. 10.5.10 Multi ROI mode (Multi Region of Interest) In this trigger mode, up to 5 ROIs located on one image can be output by one trigger input.

  • Page 61: Operation Mode And Functions Matrix

    10.6. Operation Mode and Functions matrix 10.6.1 Readout Mode (0xA098) 0:SYNC Sensor Trigger Inoput Mode Shutter Value Continuous Edge Pre-select (EPS) Pulse Width Control applicable (PWC) PIV 1 PIV 2 PIV 3 Sequential Delayed Readout Delayed Readout applicable ←” Note 1: “ means that the setting depends on BW-1.

  • Page 62: Readout Mode (0Xa098) 1:Async

    10.6.2 Readout mode (0xA098) 1:ASYNC Sensor Trigger Input Value Mode Shutter Continuous Edge Pre-select (EPS) Pulse Width Control applicable (PW) PIV1 PIV2 PIV3 Sequential Delayed Readout Delayed Readout applicable ←” Note 1: “ means that the setting depends on BW-1. Note 2: Video signal for auto iris uses the signal from BW-1.

  • Page 63: Special Note For Settings

    Otherwise, the trigger frequency will also be divided according to the frame rate setting. (Note: The above figure shows an example from a camera other than the AD-081GE.)

  • Page 64: 11. External Appearance And Dimensions

    11. External Appearance and Dimensions C M ount 4- M 3 Depth5 4- M 3 Depth5 5. 3 5. 3 98. 3 0. 3 5. 3 Fig. 52 Dimensions 4- M 3 Depth5 G PIO D C I N / T RIG PO W E R TRIGG E R Gig E-1...

  • Page 65: 12. Specifications

    AD-081GE 12. Specifications 12.1. Spectral response Fig. 53 Spectral response of monochrome sensor Fig. 54 Total spectral response including prism and sensor...

  • Page 66: Specifications Table

    Indicators on rear panel Lens Mount Flange back Operating temperature Operating humidity AD-081GE Progressive scan 30.0 frames / sec. Progressive (768 lines/frame) 23.768 KHz (1420 pixel clocks / line) 1/3 inch Monochrome IR IT CCD 4.76 (H) x 3.57 (V) mm 4.65 (H) x 4.65 (V) µm...
  • Page 67 Storage temperature/humidity Vibration Shock Regulatory Power Dimensions Weight Note: Above specifications are subject to change without notice. Note: Approximately 30 minute pre-heat required to meet specifications. -25C to +60C / 20% to 80% (non-condensing) 3G (15Hz to 200Hz XYZ ) CE (EN61000-6-2, EN61000-6-3), FCC Part15 Class B, RoHS DC (+12V to 24V) ±10％, 7.6W (Typical, normal operation,+12V) 55 (H) x55 (W) x 98.3 (D) mm...

  • Page 68: Register Map

    The content of this register map is also found in the XML file, as stipulated by the GenICam standard. Device Information Display Name Address (JAI Control Tool) 0x0048 Device Vendor Name DeviceVendoeName 0x0068...
  • Page 69 Sync Mode SyncMode 0xA13C Test Image Selector TestImageSeleector 0xA41C OB Transfer Enable OBTransferEnable Acquisition and Trigger Control Display Name Address (JAI Control Tool) 0xA604 Acquisition Mode AcquisitionMode 0xA414 Acquisition frame rate AcquisitionFrameRate 0xA000 Shutter mode ShutterMode AD-081GE 0 – 760 8 - 1024 8 –...

  • Page 70: Video Control

    TimeStamp Rest Trigger TimeStampReset Sequence Table Reset 0xB0A4 SequenceTableRest Trigger 0xA04C Smearless Enable SmearlessEnable Video Control Display Name Address (JAI Control Tool) 0xA0B0 Gain Auto GainAuto 0xA0B4 AGC Reference AGCReference 0xA0C4 Analog All AnalogAll AD-081GE 0 to 792 (OFF) 20 to 33333 ( OFF)

  • Page 71: Digital Processing

    Digital Sensor 2 DigitalSensor2 BlackLevelRaw[DigitalALL 0xA150 Black Level Selector(ALL) 0xA718 Iris Signal Output Mode IrisSignalOutputMode Digital Processing Display Name Address (JAI Control Tool) 0xA0EC Gamma Set(Mono/Bayer) GammaSet[Mono_Bayer] 0xA11C Shading Correction Enable ShadingCorrectionEnable 0xA120 Shading Correction Mode ShadingCorrectionMode 0xA128 Blemish Reduction Enable...

  • Page 72: Pulse Generator

    Line8 Line8-LVDS In Line Mode LineMode Line Format LineFormat 0xB0B0 Line status Pulse Generator Display Name Address (JAI Control Tool) 0xB004 Clock Pre-scaler ClockPreScaler 0xB008 Pulse Generator Length 0 PulseGeneratorLength0 Pulse Generator Start PulseGeneratorStartPoint 0xB00C Point 0 Pulse Generator Repeat...
  • Page 73 Pulse Generator 1 Pulse Generator Selector 0xB098 PulseGenerator2 Pulse Generator 2 Pulse Generator Selector 0xB09C PulseGenerator3 Pulse Generator 2 AD-081GE 0 :Free Run 1:High Level 2: Low Level 4: Rising Edge 8: Falling Edge 1～1048575 0～1048574 0 - 255 1～1048575...
  • Page 74 Sequence Acquisition Mode Display Name Address (JAI Control Tool) Sequence Selector SequenceSelector Sequence Exposure Time SequenceExposureTimeRa 0xC000 Sequence Master Gain 0xC078 SequenceMasterGain 0xC0FC Sequence ROI Size X SequenceROISizeX 0xC124 Sequence ROI Size Y SequenceROISizeY 0xC14C Sequence ROI Offset X SequenceROIOffsetX...
  • Page 75 Commands Concatenation mmandsConcatenation 0x0938 Heartbeat Timeout GevHeartbeatTimeout GevTimestampTickFreque 0x093C Timestamp Tick Frequency GevTimestampTickFreque 0x0940 AD-081GE Bit 29: LLA Bit 31: persistent Bit 30: DHCP Bit 29: LLA Bit 31:multiple read Bit 30:WRITEMEM Bit29: PACKETRESEND Bit 28:EVENT Bit 27:EVENTDATA Bit 1:Serial No.
  • Page 76 Packet Size GevSCPSPacketSize 0x0D04 Do Not Fragment GevSCPSDoNotFragment 0x0D08 Packet Delay GevSCPD Strem Channel 0x0D18 GevSCDA Destination Address AD-081GE Command 2 Command 1 High 0:Open Access 1:Exclusive 2:Control 3:Exclusive Control 1476 ～16020 0=False 1=True 0 ～ 125000 This register holds the least significant bytes.

  • Page 77: Event Generation

    LUT Controls Display Name Address (JAI Control Tool) 0xA200 LUT Enable LUTEnable 0xD800 LUT Value LUTValue 0xDFFC Event Generation Display Name Address (JAI Control Tool) Event Selector Acquisition Trigger GevEventtreigger Exposure Start GevEventStartOfExposure Exposure End GevEventEndOfExposure Frame Transfer Start GevEventStartOfTransfer...

  • Page 78: Appendix

    Appendix Precautions Personnel not trained in dealing with similar electronic devices should not service this camera. The camera contains components sensitive to electrostatic discharge. The handling of these devices should follow the requirements of electrostatic sensitive components. Do not attempt to disassemble this camera. Do not expose this camera to rain or moisture.

  • Page 79: Caution When Mounting The Camera

    When exporting this product, please follow the export regulation of your own country. References 1. This manual for AD-081GE can be downloaded from www.jai.com 2. Datasheet for AD-081GE can be downloaded from www.jai.com 3. JAI SDK software can be downloaded from www.jai.com 5.0mm　±　0.2mm...
  • Page 80 asynchronous ... 7, 36, 49 Auto-detect LVAL ... 36 Bit Allocation... 25 Blemishes ... 78 Camera Link ... 8 CAMERA TRIGGER ... 19 Cat6 Ethernet ... 27, 28 CCD sensor ... 44, 79 continuous ... 27 Continuous operation ... 49 Delayed Readout Mode ...

  • Page 81: Change History

    Change History Month/Year Revision Oct 2009 Dec 2009 Changes New release Add functions, high dynamic range mode 5 and 6. Modify the register map exclusively for AD-081GE...

  • Page 82: User's Record

    Company and product names mentioned in this manual are trademarks or registered trademarks of their respective owners. JAI A-S cannot be held responsible for any technical or typographical errors and reserves the right to make changes to products and documentation without prior notification.
