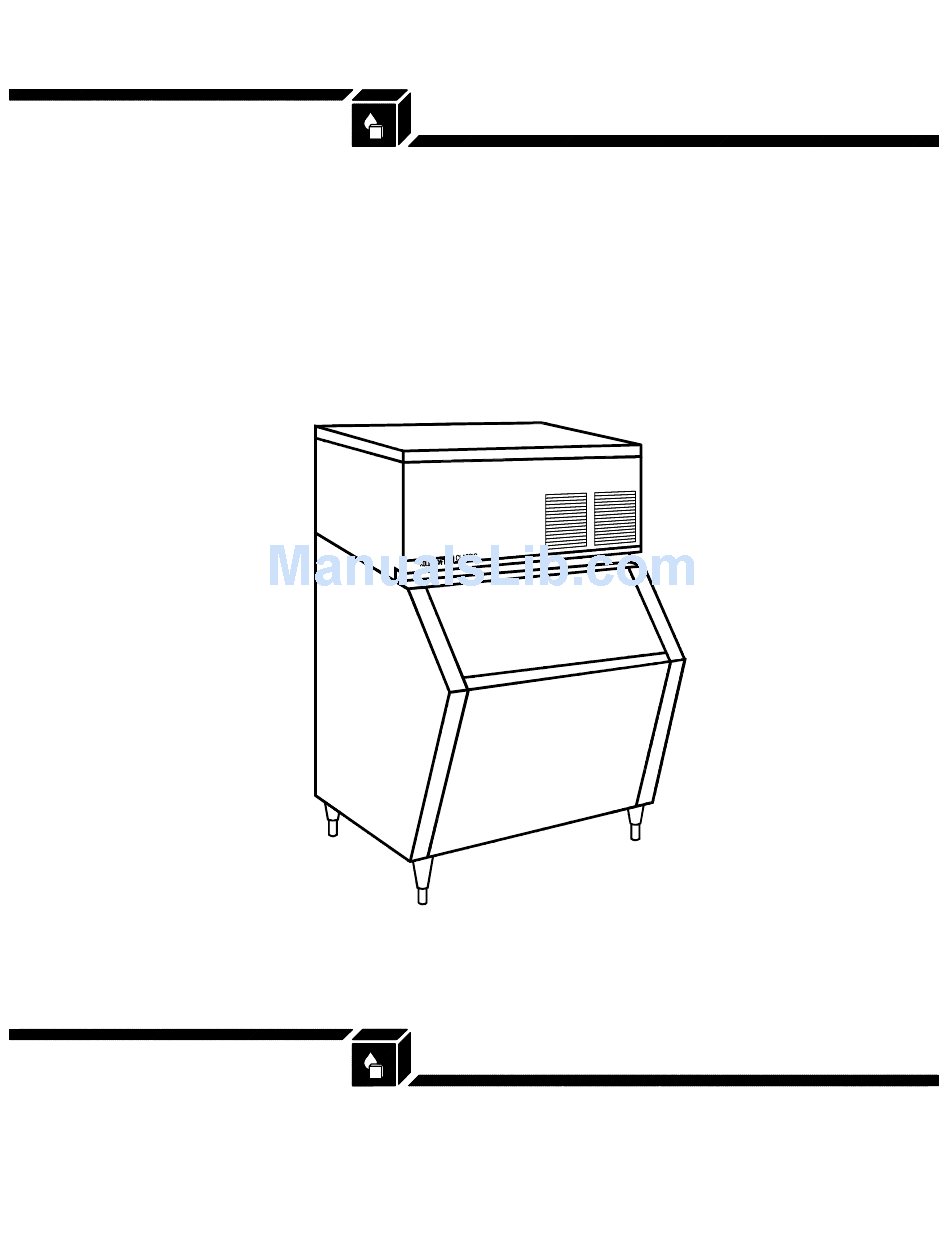

KOLD-DRAFT
Installation & Operation Instructions
®
KOLD-DRAFT
Ice Machine Products
1525 East Lake Road, Erie, PA 16511-1088, U.S.A.
Phone: 814-453-6761
FAX: 814-455-6336
©2004 KDIndustries, Inc., Erie, PA, U.S.A.
Printed in U.S.A.
508 1013 02 English with SI Units
3/04
CLASSIC
®
A Tradition of Excellence In Ice Equipment.
GB457
GB657
Advertisement
Related Manuals for Kold-Draft CLASSIC GB457
Summary of Contents for Kold-Draft CLASSIC GB457
- Page 1 GB457 GB657 CLASSIC KOLD-DRAFT ® Installation & Operation Instructions ® KOLD-DRAFT Ice Machine Products 1525 East Lake Road, Erie, PA 16511-1088, U.S.A. Phone: 814-453-6761 FAX: 814-455-6336 A Tradition of Excellence In Ice Equipment. ©2004 KDIndustries, Inc., Erie, PA, U.S.A. Printed in U.S.A.
-
Page 2: Installation
INSTALLATION AND OPERATION INSTRUCTIONS FOR KOLD-DRAFT GB SERIES ICE CUBERS ® CLASSIC ® CHECK FOR FREIGHT DAMAGE BE PROCEEDING: Even though damage to the carton may not have been evident, check for hidden damage and contact freight carrier immediately if necessary to file a claim. - Page 3 CAUTION: RISK OF PERSONAL INJURY OR EQUIPMENT DAMAGE. Use a suitable lifting means and be careful of sharp edges. 1. Remove the cabinet panels. NOTE: When re-installing the panels, be sure that the screws engage the TOP panel. 2. Remove the ice deflector, ice chute, and drain pan. Drain tube assembly is packed with the drain pan as shown below.
- Page 4 7. Purge the potable water supply line. 8. Remove the water plate shipping strap. 9. Route the bin thermostat capillary tube through the grommet in the compressor compartment wall and under the ice chute. See the diagram below. 10CM 508101302 Rev: 10-5-98 - 4 -...
-
Page 5: Installation Specifications
THE INSTALLER MUST PROVIDE REQUIRED BRANCH CIRCUIT OVERCURRENT PROTECTION (FUSES) AND DISCONNECTION MEANS. 230 V +/- 10% 50 Hz GB457: 7,2 A; 1 400 W GB657: 10,5 A; 2 050 W Water supply: Minimum 200 kPa supply pressure while the ice maker is filling is required. - Page 6 START-UP INSTRUCTIONS WATER LEVELS, CYCLE TIMES, AND REFRIGERANT CHARGES MODEL NUMBER GB457 GB657 C/HK C/HK Water fill level (Top of tank to level in control tube,cm) Approximate cycle time, min. Approximate harvest weight, kg. Refrigerant Charge, grams (R-404a) Air cooled: Liq.
-
Page 7: Preventative Maintenance
(2) screws along the bottom edge, replace the TOP panel, and finally secure all the panels with (2) screws in the TOP-SIDES of the machine. 8. Discard ice from start-up cycles, then clean and sanitize the bin following the instructions provided with the bin. 9. - Page 8 Use rubber gloves, eye protection, and an apron. Clean up splashes or spillage immediately. Follow these instructions exactly. 1. Mix one bag of KOLD-DRAFT ice machine cleaner (55R-01000) in two (2) liters of clean, warm water (82 C MAX.). 2. If the cuber is operating, wait until a harvest cycle occurs then trip the "ICE-OFF-WASH"...
- Page 9 ICE BIN CLEANING INSTRUCTIONS The bin should be cleaned periodically. If bin drain has any horizontal run, remove ice around the drain fitting and flush with two liters of hot water monthly. (Long drain lines should be flushed weekly.) CAUTION: RISK PERSONAL INJURY,...
- Page 10 508101302 Rev: 10-5-98 - 10 -...
- Page 11 508101302 Rev: 10-5-98 - 11 -...
