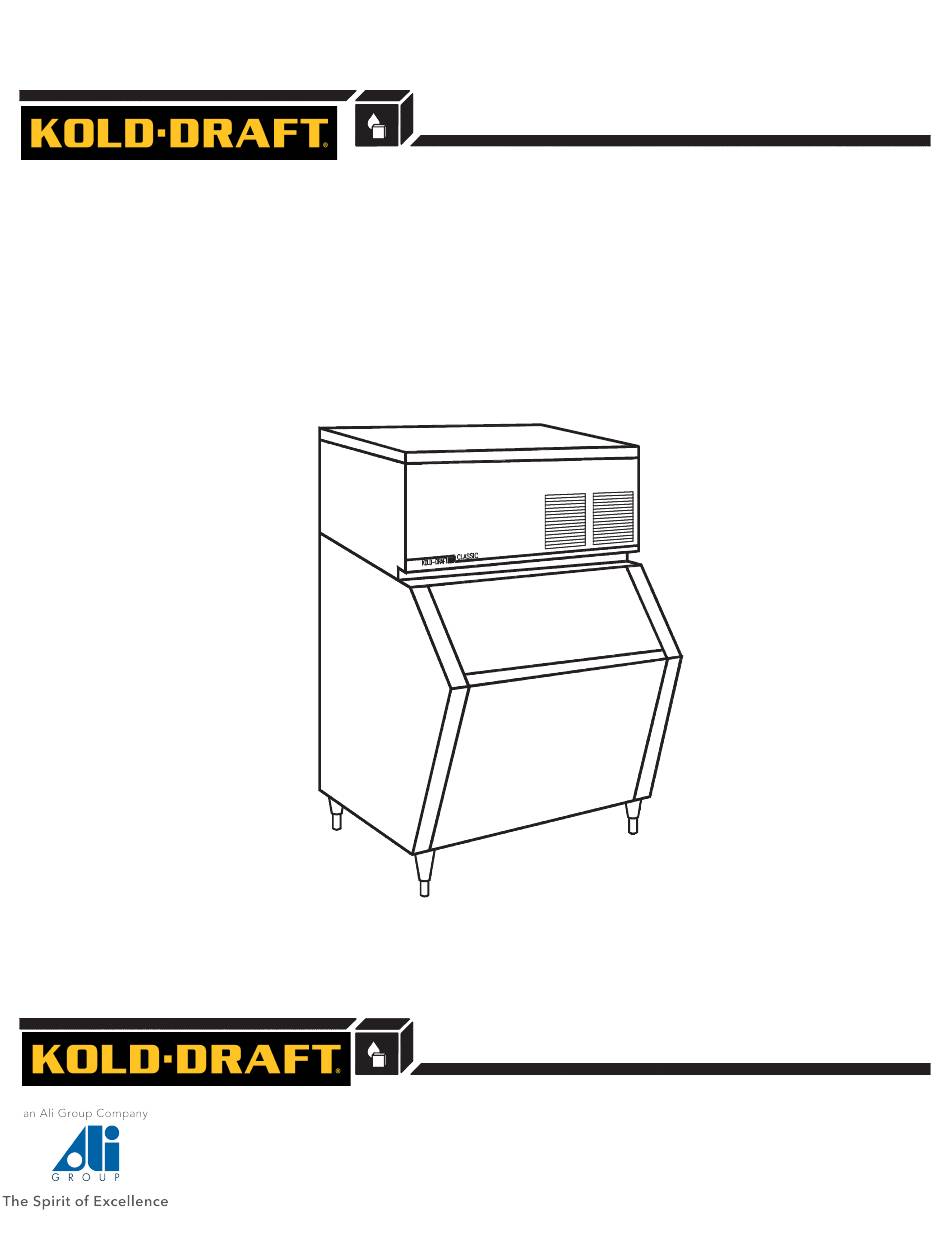

- Page 1 GB1258W CLASSIC KOLD-DRAFT ® Installation & Operation Instructions KOLD-DRAFT ® Ice Machine Products A Tradition of Excellence In Ice Equipment.
-
Page 2: Installation
INSTALLATION AND OPERATION INSTRUCTIONS CLASSIC FOR KOLD-DRAFT GB1258W SERIES ICE CUBERS ® ® CHECK FOR FREIGHT DAMAGE BEFORE PROCEEDING: Even though damage to the carton may not have been evident, check for hidden damage and contact freight carrier immediately if necessary to file a claim. - Page 3 2. Level the bin with adjusters on legs, or by shimming if the bin is to be sealed to the floor. If gaps due to shims are greater than 1/8 inch, install a cove molding around the bin bottom. Seal the bin or molding to the floor with NSF Certified RTV sealant (Dow-Corning RTV 732 or equal).
- Page 4 9. Install the drain pans, ice chutes and ice deflectors. Route the Lower Evaporator Drain tube through the rear of the bin, the Upper Evaporator drain tube through the Upper Evaporator Drain opening, and clamp the tubing to the drain pan nipples. 10.
- Page 6 All models are intended FOR INDOOR USE ONLY with PERMANENT CONNECTION TO THE FIELD ELECTRICAL SUPPLY. The remotely-installed condensers supplied by KOLD-DRAFT may be installed outdoors, and they require a separate electrical supply. CAUTION: RISK OF PROPERTY DAMAGE, EQUIPMENT FAILURE, OR FIRE.
- Page 7 START-UP INSTRUCTIONS WATER LEVELS, CYCLE TIMES, AND REFRIGERANT CHARGES PARAMETER MODEL GB1258W C/HK Water fill level (Top of tank to level in control tube) 3 5/8" 2 3/4" Approximate cycle time, min.** 22.5/18 Approximate harvest weight, lb. 15.4/14.2 Refrigerant Charge, Oz. (R-404a) Liq.
-
Page 8: Preventative Maintenance
5. Pull the right end of either water plate down, stretching the springs until the pump stops, and hold until the pump does not re-start when released. The water plates will both open fully to dump the batch of water previously taken in, then close immediately. - Page 9 ICE CUBER CLEANING INSTRUCTIONS 1. Mix one bag of KOLD-DRAFT ice machine cleaner (55R-01000) in two (2) quarts of clean, warm water (180°F. MAX.) for each evaporator/water plate assembly to be cleaned. 2. If the cuber is operating, wait until a harvest cycle occurs then trip the "ICE-OFF-WASH"...
- Page 10 CAUTION: RISK OF PERSONAL INJURY, EQUIPMENT DAMAGE OR CONTAMINATION OF THE ICE BIN. Do not use ammonia solutions or strong detergents in cleaning any part of the ice maker or bin. Never use appliance polishers or other finish preservatives or cleaners in ice storage areas.
- Page 11 508 1069 01 New 5/19/03 - 11 -...
- Page 12 KOLD-DRAFT 101 Corporate Woods Parkway Vernon Hills, IL 60061 847-215-4500 800-726-8762 FAX: 8 47-541-1759 www.kold-draft.com...
