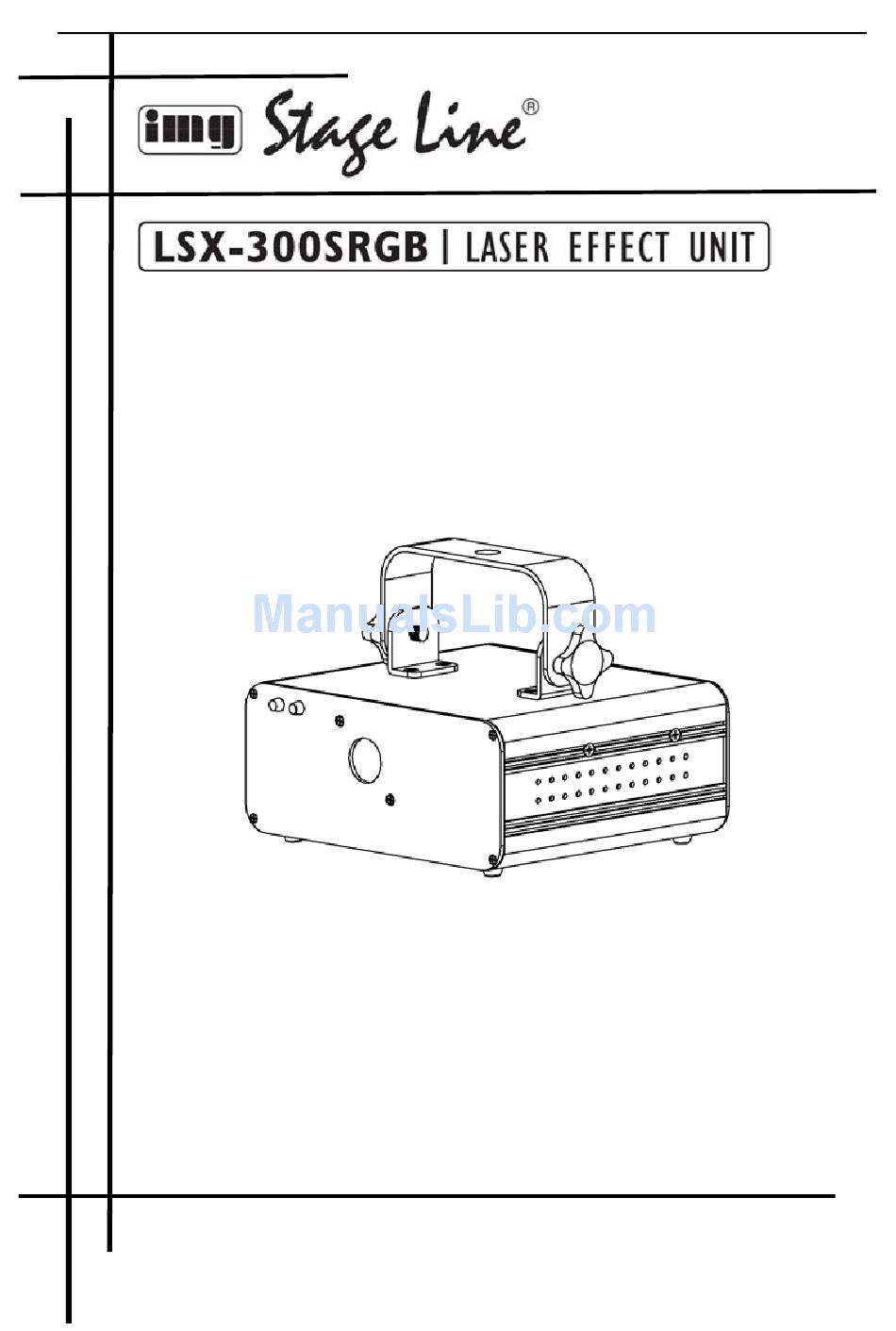

IMG STAGE LINE LSX-300SRGB User Manual

IMG STAGE LINE LSX-300SRGB User Manual

Laser effect unit

Advertisement

VERSION: V 3.0
This manual contains important laser system safety and operation
information. Read and understand all instructions prior to powering on
laser unit the first time, to avoid laser eye injury and to avoid breaking
the law. Keep this manual in a safe place for future reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LSX-300SRGB and is the answer not in the manual?

Questions and answers

Summary of Contents for IMG STAGE LINE LSX-300SRGB

  • Page 1 VERSION: V 3.0 This manual contains important laser system safety and operation information. Read and understand all instructions prior to powering on laser unit the first time, to avoid laser eye injury and to avoid breaking the law. Keep this manual in a safe place for future reference.
  • Page 2 USER MANUAL WARNING DATA Lasers can be hazardous and have unique safety considerations. Permanent eye injury and blindness is possible if lasers are used incorrectly. Pay close attention to each safety REMARK and WARNING statement in the user manual. Read all instructions carefully BEFORE operating this device.
  • Page 3: Laser Safety Warnings

    USER MANUAL LASER SAFETY WARNINGS Potential laser injury hazard exists with this product! Read these Instructions carefully, which include important information about installation, safe use and service! Caution Avoid direct eye contact with laser 了 light. Never intentionally expose your eyes or others to direct laser radiation.
  • Page 4: Stop And Read All Laser Safety Data

    USER MANUAL LASER SAFETY AND OPERATING INSTRUCTIONS STOP AND READ ALL LASER SAFETY DATA Laser light is different from any other light source witch you may be familiar. The light from this product can potentially cause eyes injury if not set up and used properly.
  • Page 5: Laser Exposure Warning

    USER MANUAL use if any defect is detected. Do not use if laser emits only one or two laser beams rather than dozens/hundreds, as this could indicate damage to the diffraction grating optic, and could allow emission of higher laser levels. Do not point lasers at people or animals.
  • Page 6: Laser Safety Label Reproductions

    USER MANUAL LASER SAFETY LABEL REPRODUCTIONS Caution – Class 3B LASER RADIATION, WHEN OPEN, AVOID EXPOSURE TO BEAM LASER RADIOATION AVOID EXPOSURE TO BEAM CLASS 3B LASER PRODUCT. The label indicates the laser beam output aperture. LASER EMISSION DATA Laser Classification Class 3B Beam Diameter <5mm at aperture...
  • Page 7: Laser Compliance Statement

    USER MANUAL LASER COMPLIANCE STATEMENT This laser product complies with EN/IEC 60825-1 Ed 2, 2007-03. GENERAL SAFETY INSTRUCTIONS Every person involved with installation and maintenance of this device has to Be qualified. Follow the instructions of this manual. CAUTION! Be careful with your operations. With a high voltage you can suffer a dangerous electric shock when touching the wires! This device has left out premises in absolutely perfect condition.
  • Page 8 USER MANUAL cleaning it. Only handle the power-cord by the plug. Never pull out the plug by tugging the power-cord. It is essential to connect the yellow/green conductor to earth. The electric connection, repairs and servicing must be carried out by a qualified employee.
  • Page 9: Before Operation

    USER MANUAL BEFORE OPERATION Unpacking Instructions CAUTION! Immediately upon receiving a fixture, carefully unpack the carton, check the contents to ensure that all parts are present and have been received in good condition. Notify the shipper immediately and retain packing material for inspection if any parts appear damage from shipping or the package itself shows signs of mishandling.
  • Page 10: Dmx-512 Connection Between Fixtures

    USER MANUAL The unit is supplied with a power plug appropriate to its voltage and destination. Should any other connections be required they must be carried out with the following configuration. Cable(EU) Cable(US) International Brown Black Live Light blue White Neutral Yellow/Green Green...
  • Page 11 USER MANUAL Building a serial DMX-chain If you are using the standard DMX-controllers, you can connect the DMX-output of the controller directly with the DMX-input of the first fixture in the DMX-chain. If you wish to connect DMX-controllers with other XLR-outputs, you need to use adapter cables.
  • Page 12: Rigging The Fixture

    USER MANUAL safety cable. Items appropriate for safe and effective mounting are easily sourced from your lighting vendor. International laser safety regulations require that lasers must be operated in the fashion illustrated below, with a minimum of 3 meters (9.8 ft) of vertical separation between the floor and the lowest laser light vertically.
  • Page 13: Product Overview

    USER MANUAL Make sure the area below the installation place is free from unwanted persons during rigging, de-rigging and servicing. The operator has to make sure that safety-relating and machine-technical installations are approved by an expert before taking into operation for the first time and after changes before taking into operation another time.
  • Page 14 USER MANUAL Front Panel NAME FUNCTION Laser output Laser output aperture. Main power indicated LED. Red is ON. POWER Synchronize to detected music signal / IR MUSIC/IR indicator (flashing for each signal received) Infrared Remote Receiver HANGING with 2 knobs on both sides to fasten the unit and a mounting hole to fix a mounting hook.
  • Page 15: Rear Panel

    USER MANUAL Rear Panel NAME FUNCTION Switch Switch on and off the power With socket and integrated fuse holder Mains input Key switch Make sure the professional person use Interlock For emergency laser stop Intelligent LED control panel of the system LED control Panel Safety eye Attach the safety cable...
  • Page 16: Operating Mode

    USER MANUAL Operating Mode Attention Once after every power on laser, the VERSION and MANUFACTURE INFORMATION will be shown in LCD monitor of rear panel. When laser is powered on, LCD monitor on rear panel shows the current operating standalone mode or DMX address of DMX mode. With help of LCD control panel, is very easy to set and change the operating mode of laser.
  • Page 17 USER MANUAL Attention In preprogrammed standalone MUSIC SHOW mode, the laser beam will be blank-out in 3 seconds without AUDIO/MIC activated signal. DMX MODE Press FUNC to enter MODE selection Till to LED panel shows 001 Press ENTER to confirm setting The laser is working in DMX MODE.
  • Page 18 USER MANUAL PATTERN MIRROR REVERSE SETTING Press FUNC to enter MODE selection Till to below LED display is shown in LED panel and the laser will show pattern right side. Press ENTER to confirm the setting. With help of UP button, the laser scanned world in x direction could be reversed, as the graphic as below.
  • Page 19: Dmx Channels Chart

    USER MANUAL Button Function Description In REM mode, to turn ON / OFF laser. In any ON/OFF standalone mode, excepted SLA mode, pressing 2 seconds for activate REM mode. AUTO AUTO running show SOUND activated show. The blue music LED MUSIC indicator is flashing when sound signal is detected.
  • Page 20 USER MANUAL 1 Group 000-051 Patterns. 2 Group 052-103 Patterns CH 2 3 Group 104-055 Patterns GROUP 4 Group 156-207 Patterns 5 Group 208-255 Patterns CH 3 000-255 Every 16 for 1 group, total 80 patterns. PATTERN 000-007 Original 008-015 016-023 Green 024-031...
  • Page 21 USER MANUAL 000-127 100%-5% fixed pattern zoomed 128-169 Zooming IN CH 6 ZOOMING 170-209 Zooming OUT 210-255 Alternately Zooming CH 7 000-255 Fast to Slow ZOOM 000-127 0 -359 degree fixed Y axis rolled CH 8 Y AXIS 128-191 Clockwise rolling ROLLING 192-255 Anticlockwise rolling...
  • Page 22: Pattern List

    USER MANUAL PATTERN LIST...
  • Page 23 USER MANUAL SPECIFICTAIONS Mains Input: AC100~240V, 50/60Hz Fuse: 250V /1A Slow Blow (20mm Glass) Total Power: X/Y Axis Beam Angle: ±20° Music Control: Audio / Sound Activated Laser Power: 150mW 650nm red 50mW 532nm green 80mW 450nm blue Laser Classification: Class 3B Laser Safety Standard: EN60825-1 2007...
