Operation Data
Operation Manual
Jandy
WaterColors LED,
®

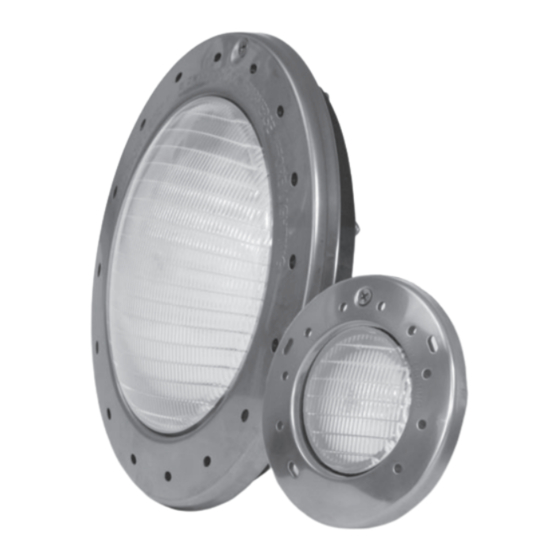

Underwater Large and Small Light
FOR YOUR SAFETY - This product must be installed and serviced by a pro fes sion al pool/spa
builder or service technician. The procedures in this manual must be followed ex act ly. Fail-
ure to follow warning notices and instructions may result in property damage, serious injury,
or death. Improper in stal la tion and/or operation will void the war ran ty. Before installing this
product, read and follow all warning notices and instructions that accompany this lter.
WARNING
Advertisement
Table of Contents
Related Manuals for Jandy R0474000
Summary of Contents for Jandy R0474000
- Page 1 Operation Data Operation Manual Jandy WaterColors LED, ® Underwater Large and Small Light WARNING FOR YOUR SAFETY - This product must be installed and serviced by a pro fes sion al pool/spa builder or service technician. The procedures in this manual must be followed ex act ly. Fail- ure to follow warning notices and instructions may result in property damage, serious injury, or death.
-
Page 3: Table Of Contents
Table of Contents Section 3. Replacing Light Engine (PCB) ... 5 Section 1. Safety Information ...... 4 Section 4. Exploded View and Replacement Section 2. Jandy WaterColors LED Light Parts..........9 Operating Instructions ....5 Jandy Large WaterColors LED Light ...9 To Operate the Light and Change Colors ..5... -
Page 4: Section 1. Safety Information
CAUTION Except when the Jandy WaterColors LED Lights are installed in an area of the swimming pool that is not used for swimming and the lens is adequately guarded to keep any person from contacting it, the light shall be... -
Page 5: Section 2. Jandy Watercolors Led Light Operating Instructions
R0473900 Small Light the color set can be selected using the indoor controller. NOTE To synchronize colors on multiple Jandy WaterColors Light systems wired to separate switches, perform the above actions on all of their switches simultaneously. All Jandy WaterColors Lights will synchronize automatically if activated by the same switch. -
Page 6: Assembly For Light Engine Replacement
Unscrew pilot screw Power Niche and pull top of light Cord assembly away from pool wall Bonding Bonding cable PILOT SCREW cable Push up on bottom of light assembly Figure 1. Removing the Jandy WaterColors Light Assembly for Light Engine Replacement... -
Page 7: Figure 2. Small Light Engine (Pcb) Replacement And Wiring
R0400501 for the small for the large light and R0400501 for the small the light (Jandy Color Light Gasket P/N R0451101 for light, on the lens. On the small light, remove the light, on the lens. On the small light, remove the large light and P/N R0400501 for small light). -
Page 8: Figure 4. Cross Section Of Jandy Watercolors Led
Discard the old gasket. g. Discard the old gasket. Reinstall the Jandy Light into niche xture. WARNING Never operate this underwater light for more than a. Coil the extra four (4) feet of cord around the a. -
Page 9: Figure 6. Jandy Large Watercolors Led Light Exploded View
Page 9 Section 4. Exploded View and Replacement Parts Jandy Large WaterColors LED Light Figure 6. Jandy Large WaterColors LED Light Exploded View DWG # Part # Description Field Replaceable WaterColors Light Housing NO - Purchase New Light R0474000 Light Engine PCB, 12V Large LED Light w/ Light Shaping Diverger... -
Page 10: Figure 7. Jandy Small Watercolors Led Light Exploded View
Page 10 Jandy Small WaterColors LED Light Figure 7. Jandy Small WaterColors LED Light Exploded View DWG # Part # Description Field Replaceable WaterColors Light Housing NO - Purchase New Light R0473900 Light Engine, 12V/120V Small LED Light R0474200 Diverger, Light Shaping, Small LED Light... - Page 11 Page 11 Notes...
-
Page 12: Limited Warranty
DE grids, or cartridge elements; or damage caused by running the pump with insufficient quantities of water. LIMITATION OF LIABILITY: This is the only warranty given by Jandy Pool Products, Inc. No one is authorized to make any other warranties on behalf of Jandy Pool Products, Inc. THIS WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESSED OR IMPLIED, INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTIES OF FITNESS FOR A PARTICULAR PURPOSE AND MERCHANTABILITY.
