Installation Data
Installation Manual
Jandy

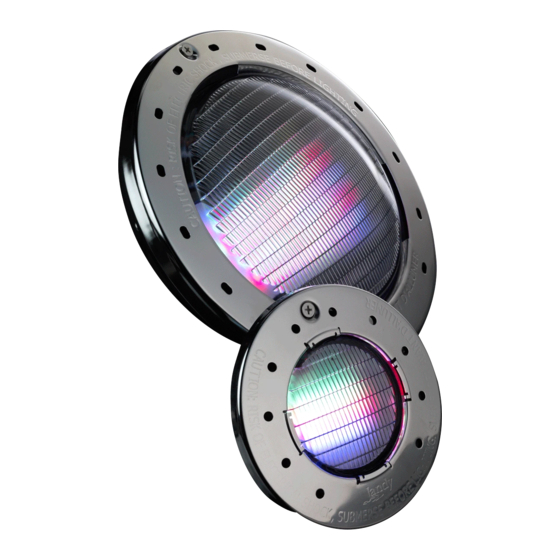

WaterColors LED,
®
Underwater Large and Small Light
FOR YOUR SAFETY - This product must be installed and serviced by a pro fes sion al pool/spa
builder or service technician. The procedures in this manual must be followed ex act ly. Fail-
ure to follow warning notices and instructions may result in property damage, serious injury,
or death. Improper in stal la tion and/or operation will void the war ran ty. Before installing this
product, read and follow all warning notices and instructions that accompany this light.
WARNING
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Jandy WaterColors LED
Summary of Contents for Jandy WaterColors LED
- Page 1 Installation Data Installation Manual Jandy WaterColors LED, ® Underwater Large and Small Light WARNING FOR YOUR SAFETY - This product must be installed and serviced by a pro fes sion al pool/spa builder or service technician. The procedures in this manual must be followed ex act ly. Fail- ure to follow warning notices and instructions may result in property damage, serious injury, or death.
-
Page 3: Table Of Contents
Alignment of the Lens, Face Ring, Housing and Clamps for WaterColors Lights ..14 Figure 10. Cross Section of Jandy WaterColors LED Light ..........14 Figure 11. Jandy Large WaterColors LED Light Exploded View .........15 Figure 12. Jandy Small WaterColors LED Light Exploded View .........16... -
Page 4: Section 1. Safety Information
CAUTION Except when the Jandy WaterColors LED Lights are installed in an area of the swimming pool that is not used for swimming and the lens is adequately guarded to keep any person from contacting it, the light shall be... -
Page 5: Section 2. Product Description And Model Numbers
Page 5 Section 2. Product Description and Model Numbers Jandy Model # Jandy WaterColors Voltage Amps Cord Face Ring ® ® Light Size Length Material CPLVLEDS30 Large 12 Volt AC 30 feet Stainless Steel CPLVLEDS50 Large 12 Volt AC 50 feet... -
Page 6: Numbers
NOTE Jandy lights are ETL listed (ETL report/file and may also cause damage to property. 3141154CHI) for installation with only the following manufacturer’s wet niche fixtures:... -
Page 7: Installing The Light Fixture
Page 7 Installing the Light Fixture Section 4. Replacing Jandy Light Fixture in an Existing NOTE Perform these steps only after the electrical Pool or Spa system requirements are met. Feed cord through conduit to junction box, leaving WARNING at least four (4) feet of cord at the light fi xture to Risk of Electrical Shock or Electrocution. -
Page 8: Replacing The Light Fixture
Page 8 The wet niche must be properly electrically Cut the cord at the Junction Box, leaving at least bonded and grounded via the No. 8 AWG ground six (6) inches of cord to make connections. connector located at the rear of the niche. See Strip six (6) inches of the outer cord jacket from Figure 1. -
Page 9: Section 6. Jandy Watercolors Led Light Operating Instructions
Emerald Green in the Power Center. Emerald Rose Magenta Refer to Figures 2 and 3 to connect the Jandy Color Violet Lights to the Power Center. Slow Color Splash CAUTION Fast Color Splash... -
Page 10: Diagram
Page 10 120V Light Clock Motor Neutral Black White JUNCTION Line GFCI Green Ground Ground Figure 4. Wiring the Jandy WaterColors Light to a Time Clock 120 VAC Power Supply 120V 120V Light Light Black Black White GFCI Neutral JUNCTION... -
Page 11: To Reset To The Beginning Of The Color
Jandy WaterColors 120 Volt AC R0473900 Small Light NOTE To synchronize colors on multiple Jandy WaterColors Light systems wired to separate switches, perform the above actions on WARNING all of their switches simultaneously. All Be sure to keep the special pilot screw from this Jandy WaterColors Lights will synchronize underwater light. -
Page 12: Figure 6. Removing The Jandy Watercolors Light Assembly For Light Engine Replacement
Push up on bottom of light assembly Figure 6. Removing the Jandy WaterColors Light Assembly for Light Engine Replacement 7. Plug in the quick disconnect wire (white for the 7. Plug in the quick disconnect wire (white for the 8a. For 12V models, place a nylon washer on the 8a. -
Page 13: Figure 7. Small Light Engine (Pcb) Replacement And Wiring
Therefore, it must be installed correctly so that Therefore, it must be installed correctly so that the light (Jandy Color Light Gasket P/N R0451101 for the lens can seal to the fixture housing. Place the the lens can seal to the fixture housing. Place the large light and P/N R0400501 for small light). -
Page 14: Section 8. Twelve (12) Volt Installation
WARNING Figure 10. Cross Section of Jandy WaterColors LED Use only the special pilot screw provided with this Light underwater light. This screw mounts and electrically grounds the housing securely to the mounting ring and wet niche. -
Page 15: Replacement Parts
Page 15 Section 9. Exploded View and Replacement Parts Jandy Large WaterColors LED Light Figure 11. Jandy Large WaterColors LED Light Exploded View DWG # Part # Description Field Replaceable WaterColors Light Housing NO - Purchase New Light R0474000 Light Engine PCB, 12V Large LED Light w/ Light Shaping Diverger... -
Page 16: Jandy Small Watercolors Led Light
Page 16 Jandy Small WaterColors LED Light Figure 12. Jandy Small WaterColors LED Light Exploded View DWG # Part # Description Field Replaceable WaterColors Light Housing NO - Purchase New Light R0473900 Light Engine, 12V/120V Small LED Light R0474200 Diverger, Light Shaping, Small LED Light... - Page 17 Page 17 Notes...
- Page 18 Page 18 Notes...
- Page 19 Page 19 Notes...
-
Page 20: Limited Warranty
DE grids, or cartridge elements; or damage caused by running the pump with insufficient quantities of water. LIMITATION OF LIABILITY: This is the only warranty given by Jandy Pool Products, Inc. No one is authorized to make any other warranties on behalf of Jandy Pool Products, Inc. THIS WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESSED OR IMPLIED, INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTIES OF FITNESS FOR A PARTICULAR PURPOSE AND MERCHANTABILITY.
