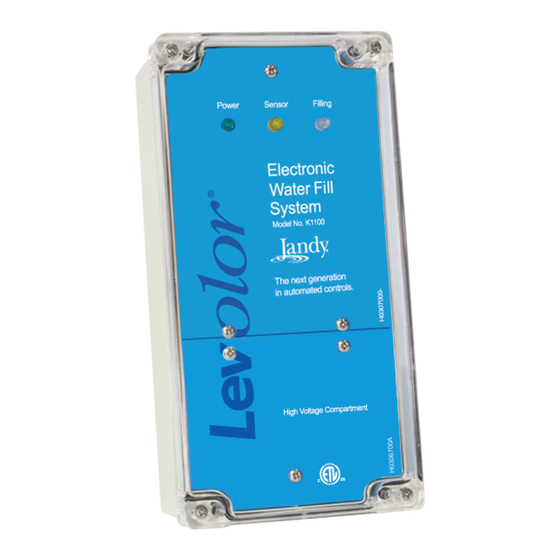

Electronic Water Leveler
Model K-1100
Levolor is the alternative choice of contractors over mechanical floats;
because it's trouble-free, easy to install and there are no moving parts.
LEVOLOR is a computer-controlled device that detects
a low water condition and automatically replaces the
water to a pre-set level. LEVELOR works well on new and existing
pools and spas. LEVOLOR can be used in any situation
where a consistent liquid level is desired (i.e., pools, spas,
aquariums, ponds, reservoirs, storage tanks,
water cooling towers, etc.).
IMPORTANT SAFETY INSTRUCTIONS
1. READ AND FOLLOW ALL INSTRUCTIONS.
2. WARNING: To reduce the risk of injury, do not permit children to
use this product unless they are closely supervised at all times.
3. SAVE THESE INSTRUCTIONS.
4. Sensor wires must be continuous and not spliced.
Call factory with any questions: 1-800- 844-8514
5. Solder all low voltage wire connections when possible and always
use grease-filled wire nuts on low voltage connections.
LEVOLOR IS A REGISTERED TRADEMARK OF SYSTEM DYNAMICS
INSTALLATION INSTRUCTIONS
Page 1
Rev E © SDI 2006

Advertisement

loading
Need help?

Need help?

Do you have a question about the Levolor K-1100 and is the answer not in the manual?

Questions and answers

Summary of Contents for Jandy Levolor K-1100

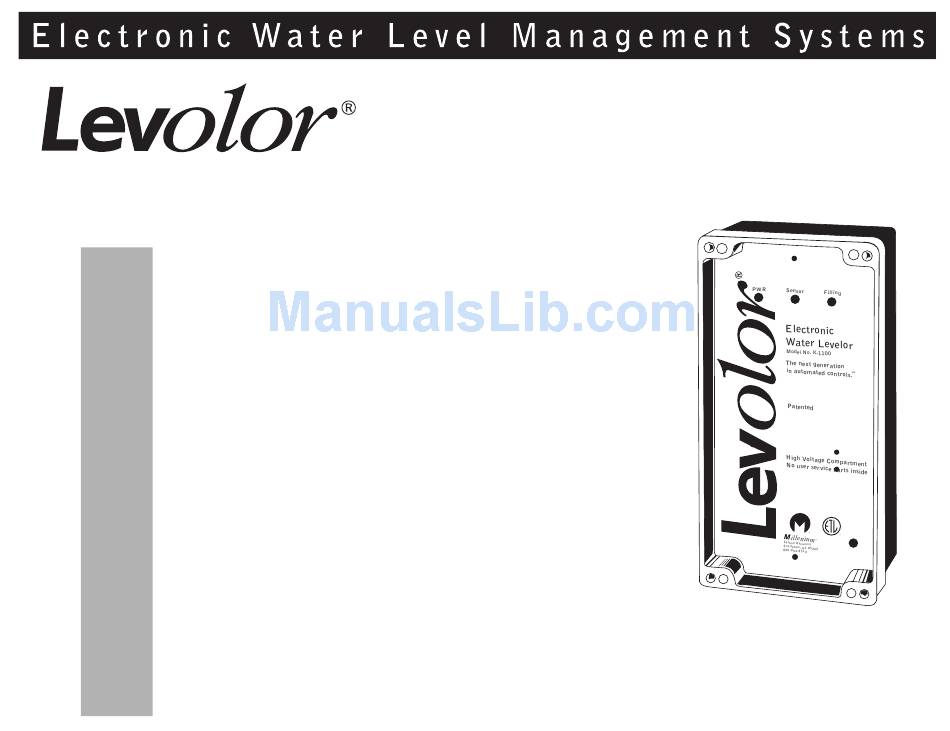

  • Page 1 INSTALLATION INSTRUCTIONS Electronic Water Leveler Model K-1100 Levolor is the alternative choice of contractors over mechanical floats; because it's trouble-free, easy to install and there are no moving parts. LEVOLOR is a computer-controlled device that detects a low water condition and automatically replaces the water to a pre-set level.
  • Page 4 EXISTING INSTALLATION DIAGRAM Expansion Joint Low Voltage Wire Sensing Probe A 24VAC solenoid valve will provide water HOUSE Monitoring Water Solenoid from a supply line to the pool or spa. Installing Computer Supply IRRIGATION Valve Skimmer SYSTEM Throat the supply line either before or after the filter 1"...
