American Dynamics Illustra 1MP User Manual

Indoor dome illustra flex series
Hide thumbs Also See for Illustra 1MP:
Table of Contents

Advertisement

Quick Links

Illustra Flex Series
1MP & 3MP Indoor Dome

User Guide

8200-1027-07 B0

Advertisement

Table of Contents
loading

Related Manuals for American Dynamics Illustra 1MP

Summary of Contents for American Dynamics Illustra 1MP

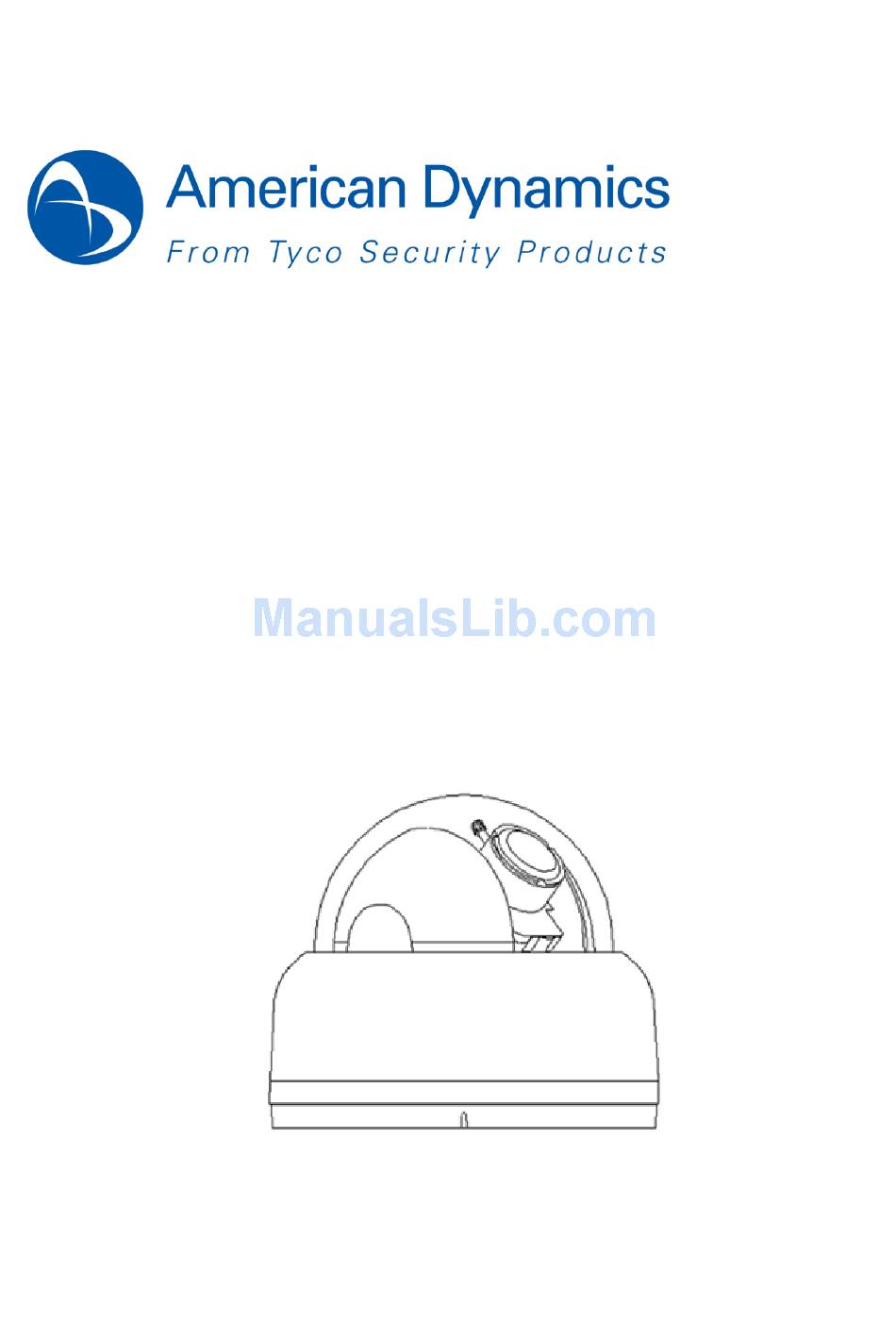

  • Page 1: User Guide

    Illustra Flex Series 1MP & 3MP Indoor Dome User Guide 8200-1027-07 B0...
  • Page 2 The dealer through whom you originally purchased this product is your point of contact if you need service or support. Our dealers are empowered to provide the very best in customer service and support. Dealers should contact American Dynamics at (800) 507-6268 or (561) 912-6259 or on the Web at www.americandynamics.net.

  • Page 3: Table Of Contents

    Illustra Flex 1MP & 3MP Indoor Dome Table of Contents WARNING ............................... 4 Preface ................................5 1. Product Overview ........................... 6 1.1 Physical Characteristics ........................6 2. Installation and Connection ......................10 2.1 Unpack Everything ..........................10 2.2 Installation ............................10 2.2.1 Checking Appearance ......................

  • Page 4: Warning

    Illustra Flex 1MP & 3MP Indoor Dome WARNING  This unit operates at DC 12V/ AC 24V/ PoE.  Installation and service should be performed only by qualified and experienced technicians and comply with all local codes and rules to maintain your warranty. ...

  • Page 5: Preface

    Illustra Flex 1MP & 3MP Indoor Dome Preface This user manual is designed as a reference for the installation and manipulations of the unit including the camera’s features, functions, and detailed explanation of the menu tree. The reader is supposed to be able to get following information in the manual.

  • Page 6: Product Overview

    Illustra Flex 1MP & 3MP Indoor Dome 1. Product Overview 1.1 Physical Characteristics 1-1: P IGURE HYSICAL DIMENSION...
  • Page 7 Illustra Flex 1MP & 3MP Indoor Dome 1-2: P IGURE ICTORIAL NDEX 1-1: P ABLE ICTORIAL NDEX EFINITION Index # Description Camera bottom case Tilt adjustment bracket and thumbnuts, notches(X2) Notches (x2) Inner liner Loosen the screw to take off camera housing Camera housing Dome cover...
  • Page 8 Illustra Flex 1MP & 3MP Indoor Dome 1-3: I & I IGURE NTERIOR UTTONS NLETS 1-2: I ABLE NTERIOR UTTONS EFINITIONS To reset to factory default by pressing and holding the DEFAULT button for 5 seconds RESET To reboot the unit 1-4: E IGURE XTERIOR...
  • Page 9 Illustra Flex 1MP & 3MP Indoor Dome 1-3: E ABLE XTERIOR EFINITION Au/I Audio in Au/O Audio out Alarm in Alarm out 1-4: E ABLE XTERIOR EFINITION DC 12V Network indoor dome camera can operate on DC 12V / AC 24V AC 24V...

  • Page 10: Installation And Connection

    Illustra Flex 1MP & 3MP Indoor Dome 2. Installation and Connection 2.1 Unpack Everything Check everything in the packing box matches to the order form and the packing slip. In addition to this manual, items below are included in the packing box. ...

  • Page 11: Disassembling The Camera

    Illustra Flex 1MP & 3MP Indoor Dome 2.2.2 Disassembling the Camera Please refer to the figure 2-1 for pictorial index. Gently press the button to take off camera off camera housing (4). Remove the inner liner (3) by gently pulling it free of the two notches (2) in the housing. Set the camera a housing (5) and inner liner (3) aside.

  • Page 12: Mounting The Camera

    Illustra Flex 1MP & 3MP Indoor Dome 2.2.4 Mounting the camera Please place the mounting template as supplied on the mounting surface and mark the holes. Drill two holes, and then insert the screw anchors into the holes. Next, take off the camera housing. Connect the Safety Wire (fall prevention wire, not supplied) with one end to the ceiling and the other to the safety-cord screw of the unit.
  • Page 13 Illustra Flex 1MP & 3MP Indoor Dome 2-3: M IGURE OUNTING THE AMERA Warning Depending on the material of your mounting surface, you may require different screws and anchors than those as supplied. To prevent the unit from falling off, ensure that it is secured to a firm place (ceiling slab or channel) with a safety wire (not supplied) strong enough to sustain the total weight of the unit.

  • Page 14: Adjusting The Position

    Illustra Flex 1MP & 3MP Indoor Dome 2.2.5 Adjusting the Position The unit has three axes for positioning. While monitoring, adjust the position as below.  Pan Adjustment (A): For Wall Mount and Tilted Ceilings Rotate the lens base (maximum 350°) until you are satisfied with the field of view.

  • Page 15: Adjusting Zoom And Focus

    Illustra Flex 1MP & 3MP Indoor Dome 2.2.6 Adjusting Zoom and Focus Loosen the zoom lever (D) / locking screw by turning it counter-clockwise. Rotate the zoom ring to achieve the desired picture. Loosen the focus lever (E) / locking screw by turning it counter-clockwise. Rotate the focus ring to adjust the focus.

  • Page 16: System Requirements

    Illustra Flex 1MP & 3MP Indoor Dome 2.2.9 System Requirements Below table lists the minimum requirement to implement and operate a unit. No hardware/software component underestimated is recommended. 2-1: S ABLE YSTEM EQUIREMENTS System Hardware Intel Pentium 4 2.4GHz or equivalent 1 GB or above Display NVIDIA GeForce 6 Series or ATI Mobility Radeon 9500...

  • Page 17: Connection

    Illustra Flex 1MP & 3MP Indoor Dome 2.3 Connection 2.3.1 Default IP address Since this is a network-based unit, an IP address must be assigned at the very first. The unit’s default IP address is 192.168.1.168 and sub mask is 255.255.255.0. However, if you have a DHCP server in your network, the unit would obtain an IP address automatically from the DHCP server so that you don’t need to change the camera’s IP address.
  • Page 18 Illustra Flex 1MP & 3MP Indoor Dome 2.3.2.2 Viewing Preparation Images of the unit can be viewed through Microsoft Internet Explorer 8 or above. Before viewing, follow these steps to enable the display. Enable Cookies as instructions below  In Internet Explorer, click Internet Options on the Tools menu. ...
  • Page 19 Illustra Flex 1MP & 3MP Indoor Dome  Scroll down to the ActiveX controls and plug-ins radio buttons and set as follows: 【Download signed ActiveX controls】 Prompt (recommended) 【Download unsigned ActiveX controls】 Prompt 【Initialize and script ActiveX not marked as safe for scripting】 Prompt 2-9: S IGURE ECURITY...

  • Page 20: Using The Illustra Connect Tool To Manage Cameras

    Illustra Flex 1MP & 3MP Indoor Dome 【Run ActiveX controls and plug-ins】 Enable 【Script ActiveX controls marked safe for scripting*】 Enable 2-11: S IGURE ECURITY ETTINGS  Press OK to save the settings.  Close all Microsoft Internet Explorer Windows and restart a new window. This will allow the new settings taking effect.

  • Page 21: Administration And Configuration

    Illustra Flex 1MP & 3MP Indoor Dome 3. Administration and Configuration 3.1 Live View Simply click on Live View on the top left side of the browser window while accessing the IP address of the unit, and a live video is displayed directly in the browser window. When clicked on Configuration, a window will be pop out for configuring “Image Parameters”, “Network Settings”, “System Settings”, “Event Settings”, and “Record Settings”.

  • Page 22: Configuration

    Illustra Flex 1MP & 3MP Indoor Dome 3.2 Configuration When clicked on Configuration, a window will be pop out for configuring “Image Parameters”, “Network Settings”, “System Settings”, “Event Settings”, and “Record Settings”. 3-2: C IGURE ONFIGURATION 3.2.1 Image Parameters 3-3: I IGURE MAGE ARAMETER...
  • Page 23 Illustra Flex 1MP & 3MP Indoor Dome 3.2.1.1 Codec 3-4: B IGURE ASIC ETTINGS ODEC...
  • Page 24 Illustra Flex 1MP & 3MP Indoor Dome Edit Profile This unit offers two choices of video codecs for real-time viewing: H.264 or M-JPEG. Click codec to change desired setting as below. By default, there are 6 compression profiles can be chose for respective resolution, frame rate, and picture quality as required.
  • Page 25 Illustra Flex 1MP & 3MP Indoor Dome (ADC 600F-D111) Item Option Description M-JPEG/H.264 Set a default codec Video Codec 720P(1280×720) SVGA(800×600) D1(720×480 / 720x576) Resolution 4CIF(704×480 / 704x576) VGA(640×480) CIF(352×240 / 352x288) Frame rate is based on second. Frame Rate NTSC: 1~30 NTSC: H.264 or M-JPEG single stream:1280×720@30fps.
  • Page 26 Illustra Flex 1MP & 3MP Indoor Dome 3-2: C /FPS/C ABLE ORRELATIONS OF ESOLUTION TREAMS ODECS (ADC 800F-D111) Resolution Single stream Double stream Triple stream 2048×1536 @ 15fps 2048×1536 (H.264/M-JPEG) 1920 x1 080, 72 0 x480 @ 30f p s* 1920×1080 @ 30fps 1920x1080, 640x480 @ 30fps* 1 9 2 0 x 1 0 8 0 , 3 5 2 x 2 4 0 , 3 5 2 x 2 4 0 @ 3 0 f p s...
  • Page 27 Illustra Flex 1MP & 3MP Indoor Dome 3-3: C /FPS/C ABLE ORRELATIONS OF ESOLUTION TREAMS ODECS Resolution Single stream Double stream Triple stream 800x600, 800x600, 800x600 @ 30fps 800x600, 800x600, 720x480 @ 30fps 800x600, 800x600, 704x480 @ 30fps 800x600, 800x600, 640x480 @ 30fps 800x600, 800x600, 352x240 @ 30fps 800x600, 800x600 @ 30fps 800x600, 720x480, 720x480 @ 30fps...
  • Page 28 Illustra Flex 1MP & 3MP Indoor Dome (ADC 600F-D111) Resolution Single Stream Dual Stream Triple Stream 1280x720, 1280x720, 352x240 @ 30fps 1280x720, 800x600, 800x600 @ 30fps 1280x720, 800x600, 720x480 @ 30fps 1280x720, 800x600, 704x480 @ 30fps 1280x720, 800x600, 640x480 @ 30fps 1280x720, 1280x720 @ 30fps 1280x720, 800x600, 352x240 @ 30fps...
  • Page 29 Illustra Flex 1MP & 3MP Indoor Dome 3.2.1.2 Exposure 3-5: B – E IGURE ASIC ETTINGS XPOSURE Automatic Exposure 3-6: A IGURE UTOMATIC XPOSURE ETTING Automatic Exposure controls the light intensity of picture. There are three options, AES (Automatic Electronic Shutter), ALC, and Flickerless, to adjust for adjustment depending on conditions.
  • Page 30 Illustra Flex 1MP & 3MP Indoor Dome Slow Shutter Slow Shutter can be enabled if the sensitivity is still not good enough under “High” gain condition at dark. Optimal image level can be maintained by appropriate gain and shutter combination that determined automatically inside the unit system.
  • Page 31 Illustra Flex 1MP & 3MP Indoor Dome Manual Gain Set Manual Gain value from 0 to 36dB. This function applies to manual lens only. 36dB brightens the image and 0dB darkens the image. 3-11: M IGURE ANUAL ETTING EV Adjustment EV Adjustment can be set between 2.0 to -2.0.
  • Page 32 Illustra Flex 1MP & 3MP Indoor Dome BLC (Backlight Compensation) 3-15: B IGURE ACKLIGHT OMPENSATION ETTING Set an area for Backlight Compensation. Backlight Compensation is a function that achieves the brightness of a selected area to optimal image level. This function is necessary when an auto iris lens tends to close due to an intense light coming from back of object in the area wished to view so that the area is too dark and difficult to see.
  • Page 33 Illustra Flex 1MP & 3MP Indoor Dome 3.2.1.3 White Balance 3-18: W IGURE HITE ALANCE ETTING  White Balance controls color on the screen. Mode can be set to Auto (default) or Manual mode. The color temperature range is 2800°K ~ 8500°K. ...
  • Page 34 Illustra Flex 1MP & 3MP Indoor Dome Brightness adjustment Set picture brightness from level -255 to 255. Selecting 255 provides brightest the image. Contrast Set picture contrast from level 0 to 255. Selecting 255 provides highest contrast. Set picture hue from level -15~15. Selecting 15 provides the deep hue. Saturation Saturation describes the difference of a color from the gray of the same lightness.
  • Page 35 Illustra Flex 1MP & 3MP Indoor Dome Caution The privacy zone area is a factor increased by 16. That implies we have to round the length and width of the privacy zone to meet this rule. After rounding the algorithm, the result of privacy zone will be plus or minus 16% of the user selected area.

  • Page 36: Network Settings

    Illustra Flex 1MP & 3MP Indoor Dome 3.2.2 Network Settings Below explains how to configure a wired network connection for the unit. 3-23: N IGURE ETWORK ETTINGS  Camera Name: Enter a desired camera name or use the default name. ...
  • Page 37 Illustra Flex 1MP & 3MP Indoor Dome 3.2.2.1 FTP In this page, users can activate a FTP Server to reach SD card for recordings.  Simply click “OFF” to disable the FTP function.  Simply click “ON” to activate the FTP function, and follow the following procedures to set up related settings.
  • Page 38 Illustra Flex 1MP & 3MP Indoor Dome 3-26: RTSP Stream1 / Stream2 / Stream 3 IGURE ETTINGS  Multicast Address The IP address for multicasting ought to be from 224.0.1.1 to 239.255.255.254. After desired options and values are chosen, please be remembered to click “save” button to save all settings. Note: RTSP URLs for RTSP Stream 1, RTSP Stream 2, and RTSP Stream3 are: rtsp://(ip address)/(stream 1), rtsp://(ip address)/(stream 2), rtsp://(ip address)/(stream 3) respectively.
  • Page 39 Illustra Flex 1MP & 3MP Indoor Dome 3.2.2.3 SNMP SNMP (Simple Network Management Protocol) is an Internet standard protocol on top of application layer that restructures the exchange of management information among network-attached nodes, which helps administrators to remotely manage network devices and master network problems with ease. 3-27: SNMP S IGURE ETTINGS...

  • Page 40: System Settings

    Illustra Flex 1MP & 3MP Indoor Dome 3-28: SNMP S IGURE ETTINGS  Download: Click “Download” to get specifics of MIB (Management Information Base). MIBs describe the structure of the management data of a device subsystem; they use a hierarchical namespace containing object identifiers (OID).
  • Page 41 Illustra Flex 1MP & 3MP Indoor Dome Synchronize with NTP Server: Select NTP in the Synchronization Mode to synchronize the date and time with the dedicated  NTP Server: Input IP address or URL of the dedicated NTP server. Note: Please make sure disable SD recording function before you enable NTP synchronization mode.
  • Page 42 Illustra Flex 1MP & 3MP Indoor Dome Besides administrator, guests can access the unit under authorization from system administrator by privilege controller. User1~5 are allowed to review the live picture only. No operation will be enforced without any ”; authorization. The default login name and password of guests are “user 1” (user+ 1~5) and “0000 however, desired login name and password of guests may be altered like those of administrator’s.
  • Page 43 Illustra Flex 1MP & 3MP Indoor Dome 3.2.3.4 Firmware System Information about Firmware Version, Mac Address, MCU Version, and Model Name are revealed here as below figure. Users can update system firmware if available. All camera motions will shut down during firmware update.
  • Page 44 Illustra Flex 1MP & 3MP Indoor Dome Import Configuration Settings This function is designed to upload configuration setting from the client computer to the unit. 3-40: I IGURE MPORT ONFIGURATION ETTING Export Configuration Settings This function is designed to export configuration settings to the client computer. 3-41: E IGURE XPORT...

  • Page 45: Event Settings

    Illustra Flex 1MP & 3MP Indoor Dome 3.2.4 Event Settings 3.2.4.1 Motion Detection This function is designed to record video once the unit detects a motion. 3-43: M IGURE OTION ETECTION ETTING Enable: Select “ON” or “OFF” to use this function. Sensitivity: Choose different levels of sensitivity from high, medium, and low.
  • Page 46 Illustra Flex 1MP & 3MP Indoor Dome 3.2.4.2 Alarm When an alarm is connected, the unit triggers an alarm only once the status (open or closed) changed. When an alarm event is detected, an alarm message would be displayed on the Web-Client screen for notification. Alarm Input Alarm Input: Set the Alarm Input as “ON”...

  • Page 47: Record Settings

    Illustra Flex 1MP & 3MP Indoor Dome 3.2.5 Record Settings 3.2.5.1 FTP Record Recording Condition Users can save image files via FTP by setting FTP recording condition beforehand. 3-47: R IGURE ECORDING ONDITION ETTING Recording Condition: You can store your image files base on your scheduled recording, recording by alarm or recording by motion.
  • Page 48 Illustra Flex 1MP & 3MP Indoor Dome Scheduled Recording Table Determine the recording condition: OFF, All Day, Scheduled 1, or Scheduled 2 from scheduled recording table during 24/7. 3-49: S IGURE CHEDULED ECORDING ABLE  Recording cycle: Set a time interval for recording images. 3-50: R IGURE ECORDING...
  • Page 49 Illustra Flex 1MP & 3MP Indoor Dome Alarm Settings & Motion Settings These functions are to define the way to record video once a motion/alarm event is detected by the unit. 3-52: A & M IGURE LARM ETTINGS OTION ETTINGS ...
  • Page 50 Illustra Flex 1MP & 3MP Indoor Dome 3.2.5.3 SD Record Image files can be saved onto the SD card; nevertheless, this menu will not show up unless the SD card inserted. Recording Condition  Choose the condition of the SD recording on Alarm, Motion, Network Loss, or OFF. Confined SD recording priority: Alarm →...

  • Page 51: Appendix: Specification Of Illustra Flex Indoor Dome

    Illustra Flex 1MP & 3MP Indoor Dome Appendix: Specification of Illustra Flex Indoor Dome Model Type Vari-focal Day/Night Indoor Dome Camera Model No. ADCi800F-D111 ADCi600F-D111 Signal System NTSC NTSC Warranty 1 year Image System Image Sensor 1/3" AR0330 Sensor Type CMOS Optical System Lens Mount...
  • Page 52 Illustra Flex 1MP & 3MP Indoor Dome Applications SDK 2.0 ONVIF PASS ONVIF Compliance tool V12.06 Web Browsing Requirements Microsoft Internet Explorer 8.0 or above Mechanism Dimensions Ø125mm x 106mm(H) Weight 500g Network: RJ-45 connector Power Input: removable terminal block Connectors Audio In/Out: removable terminal block Alarm in/out: removable terminal block...
