Media5 Mediatrix 4104 Installation Manual

Warning: In the following installation procedures, do not disconnect the
Mediatrix 4104 while the LEDs are flashing.
Thank you for choosing the Mediatrix 4104. This Quick Start will help you to properly connect all of the cables to the Mediatrix 4104 and access its web
interface.
Please read the Mediatrix 4104 Hardware Installation Guide for detailed installation information and the Mediatrix 4104 Software
Configuration Guide for in-depth configuration information.
Step 1
Connecting Cables

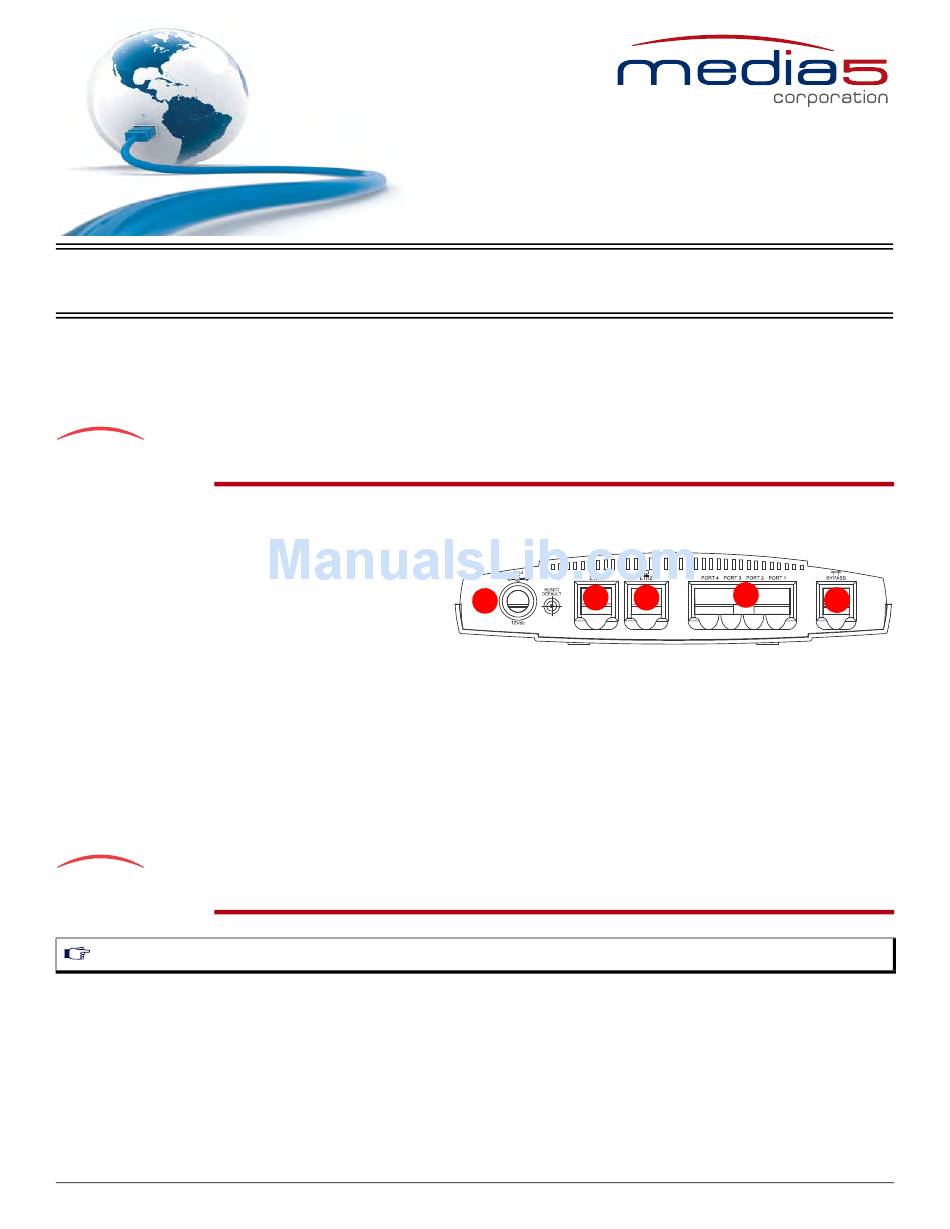

The following describes how to connect the various cables to the Mediatrix 4104.
Before you begin, make sure that you have a working network connection. Then follow these steps to install the Mediatrix 4104.
1.
Before you begin, be sure that the Mediatrix 4104 is
powered off.
2.
Connect the power cord to its connector on the Mediatrix
4104. Do not connect the other end of the power cord to an
electrical outlet.
3.
Connect analog telephones or fax machines into the
connectors.
Use a standard telecommunication cord with a minimum of 26 AWG wire size.
4.
Connect a 10/100 BaseT Ethernet RJ-45 cable into the
interface that supplies TCP/IP network access (e.g., router, switch, hub or computer).
Use a standard telecommunication cord with a minimum of 26 AWG wire size.
5.
Connect a 10/100 BaseT Ethernet RJ-45 cable into the
a computer.
You can either use a crossover or straight Ethernet cable because it performs automatic MDI / MDIX detection. Use a standard
telecommunication cord with a minimum of 26 AWG wire size.
6.
Connect a SCN line into the
Use a standard telecommunication cord with a minimum of 26 AWG wire size.
Step 2
IP Address Discovery or Configuration
Note:
This section applies to the IP configuration of the
The purpose of this section is to be able to contact the Mediatrix 4104's web interface to start with unit configuration.
Once the physical connection is complete, you will need to power on the Mediatrix 4104 and find out the IP address it is using. The Mediatrix 4104's IP
address can be set either dynamically or statically. The default behaviour of the Mediatrix 4104 is to try to obtain a dynamic IP address through a DHCP
server.
© 2012, Media5 Corporation
Port
ETH1
ETH2
Bypass connector of the Mediatrix 4104 (optional).
ETH1
Installation – SIP
4
2
connector of the Mediatrix 4104; connect the other end to a compatible Ethernet
connector of the Mediatrix 4104 and connect the other end to the network card of
port.
Discover the Power of
Mediatrix 4104
3
5
Document Revision 17
5
6
