Warning:
In the following installation procedures, do not disconnect the
Mediatrix C7 Series while the LEDs are flashing.

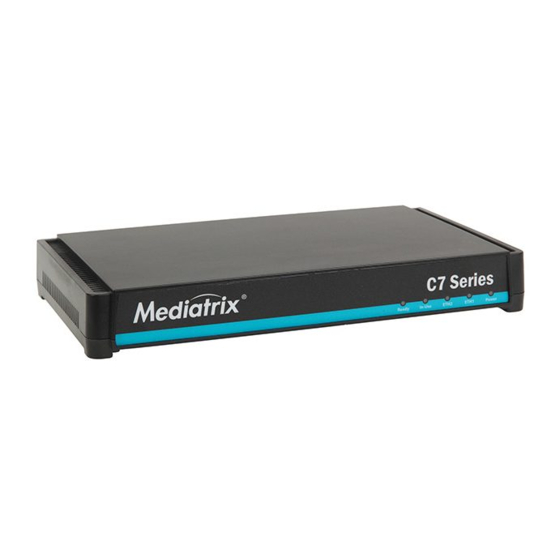

Thank you for choosing the Mediatrix C7 Series. This Quick Start will help you to properly connect all of the cables to the Mediatrix C7 Series and access
its web interface.
Please read the Mediatrix C7 Series Hardware Installation Guide for detailed installation information and the Mediatrix C7 Series
Software Configuration Guide for in-depth configuration information.

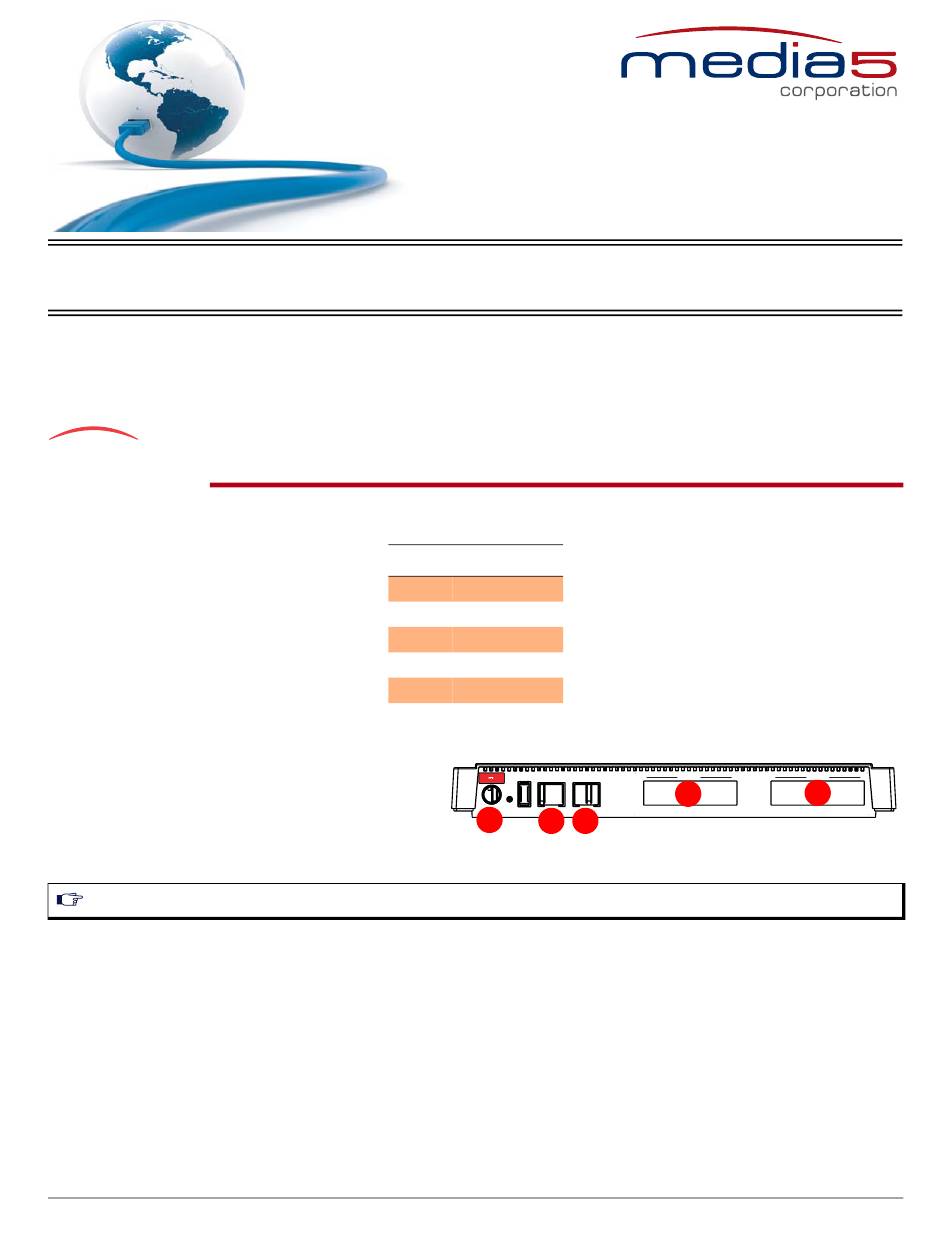

Step 1
Connecting Cables
The following describes how to connect the various cables to the Mediatrix C7 Series. Since there are many flavours of the Mediatrix C7 Series unit, some
of the information provided may not apply to your particular Mediatrix C7 Series unit model.
Before you begin, make sure that you have a working network connection. Then follow these steps to install the Mediatrix C7
Series.
1.
Before you begin, be sure that the Mediatrix C7 Series is
powered off.
2.
Connect the power adaptor to the Mediatrix C7 Series.
3.
Models with FXS ports: Connect analog telephones or fax
machines into the
FXS
Use a standard telecommunication cord with a minimum of
26 AWG wire size.
Note:
The FXS and FXO ports may differ location depending on the model you have.
4.
Models with FXO ports: Connect a SCN line into the
Use a standard telecommunication cord with a minimum of 26 AWG wire size.
5.
Connect a 10/100 BaseT Ethernet RJ-45 cable into the
Ethernet interface that supplies TCP/IP network access (e.g., router, switch, hub or computer).
You can either use a crossover or straight Ethernet cable because it performs automatic MDI / MDIX detection.
© 2013, Media5 Corporation
Model
C710
C711
C730
C733
C731
connectors.
FXO
Interfaces
4 FXS
8 FXS
4 FXO
8 FXO
4 FXS + 8 FXO
USB
ETH1
ETH2
12V
2.5A
Reset /
Power
Default
2
5
6
Ports.
ETH1
connector of the Mediatrix C7 Series; connect the other end to a compatible
Discover the Power of
Mediatrix C7 Series
Installation – SIP
FXO
4
1
2
3
4
1
5
FXS
3
2
3
4
Document Revision 14
Advertisement
Table of Contents
Related Manuals for Media5 Mediatrix C7 Series
Summary of Contents for Media5 Mediatrix C7 Series
- Page 1 In the following installation procedures, do not disconnect the Mediatrix C7 Series while the LEDs are flashing. Thank you for choosing the Mediatrix C7 Series. This Quick Start will help you to properly connect all of the cables to the Mediatrix C7 Series and access its web interface.
- Page 2 The electrical outlet must be installed near the Mediatrix C7 Series so that it is easily accessible. Find out the IP address it is using. The Mediatrix C7 Series's IP address can be set either dynamically or statically. The default behaviour of the Mediatrix C7 Series is to try to obtain a dynamic IP address through a DHCP server.
- Page 3 The other cable links the computer to the Hub. The Mediatrix C7 Series should be already running. If not, power it on by connecting the other end of the power adaptor to an electrical earthed socket-outlet. The electrical outlet must be installed near the Mediatrix C7 Series so that it is easily accessible.
- Page 4 End User Technical Support SIP Version Step 4 End User Technical Support Media5 works through its partners to resolve technical support issues. All end users requiring technical support are encouraged to contact their vendor directly. Page 4 Installation Quick Start...
