Owner's Manual
Model
SET - SETU

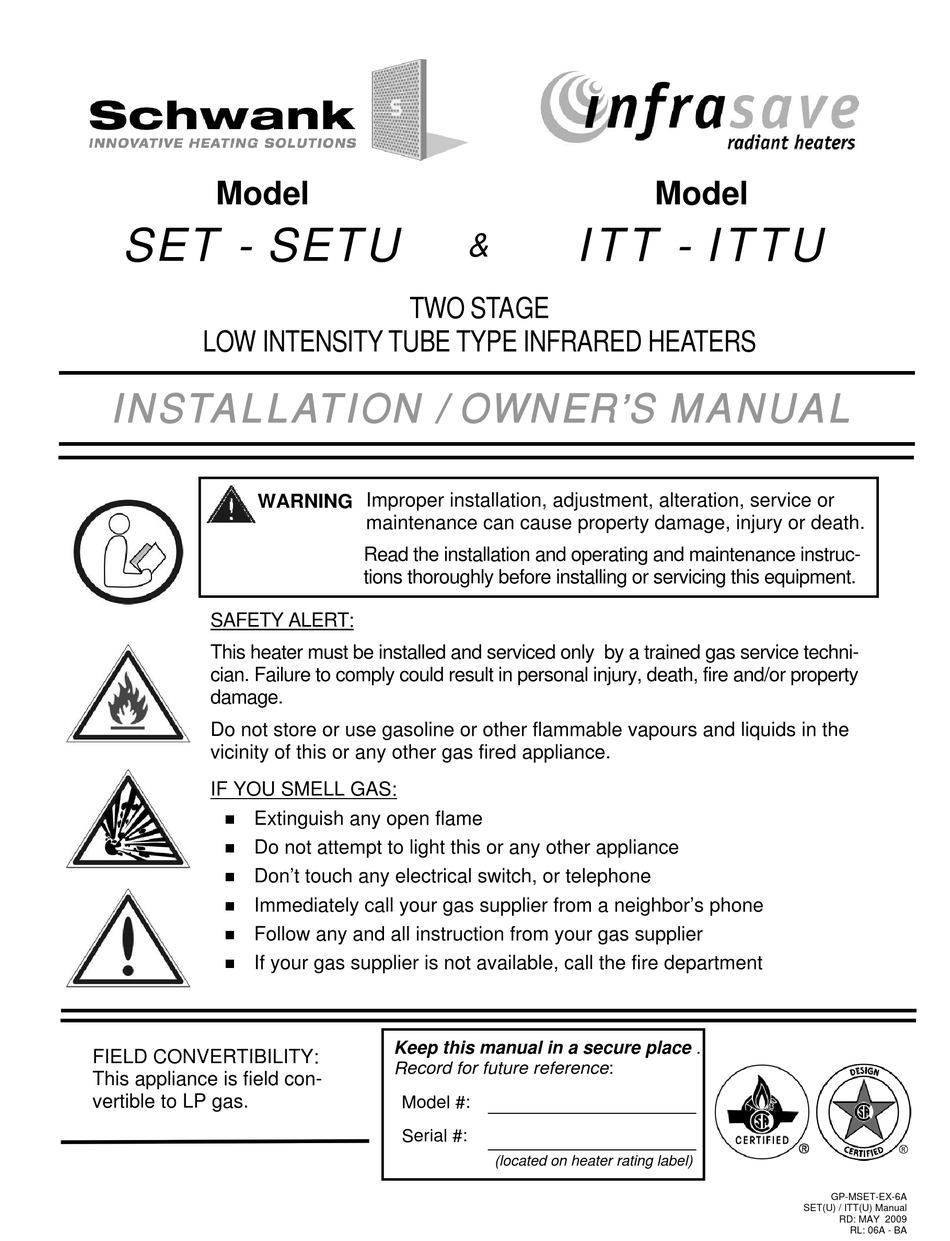

LOW INTENSITY TUBE TYPE INFRARED HEATERS
INSTALLATION / OWNER'S MANUAL
WARNING
SAFETY ALERT:
This heater must be installed and serviced only by a trained gas service techni-
cian. Failure to comply could result in personal injury, death, fire and/or property
damage.
Do not store or use gasoline or other flammable vapours and liquids in the
vicinity of this or any other gas fired appliance.
IF YOU SMELL GAS:
Extinguish any open flame
Do not attempt to light this or any other appliance
Don't touch any electrical switch, or telephone
Immediately call your gas supplier from a neighbor's phone
Follow any and all instruction from your gas supplier
If your gas supplier is not available, call the fire department
FIELD CONVERTIBILITY:
This appliance is field con-
vertible to LP gas.
&
TWO STAGE
Improper installation, adjustment, alteration, service or
maintenance can cause property damage, injury or death.
Read the installation and operating and maintenance instruc-
tions thoroughly before installing or servicing this equipment.
Keep this manual in a secure place .
Record for future reference:
Model #:
Serial #:
(located on heater rating label)
Model
ITT - ITTU
GP-MSET-EX-6A
SET(U) / ITT(U) Manual
RD: MAY 2009
RL: 06A - BA
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Schwank SET - SETU
Summary of Contents for Schwank SET - SETU
- Page 1 Model Model SET - SETU ITT - ITTU & TWO STAGE LOW INTENSITY TUBE TYPE INFRARED HEATERS INSTALLATION / OWNER’S MANUAL Improper installation, adjustment, alteration, service or WARNING maintenance can cause property damage, injury or death. Read the installation and operating and maintenance instruc- tions thoroughly before installing or servicing this equipment.
- Page 2 The Manufacturer. Unauthorized use or distribution of this publication is strictly prohibited. Schwank Group Schwank and InfraSave brands 5285 Bradco Boulevard Mississauga, Ontario,L4W 2A6 PO Box 988, 2 Schwank Way Waynesboro, Georgia 30830 Customer & Technical Services Phone: 877-446-3727 Fax: 866-361-0523 e-mail: csr@schwankgroup.com www.schwankgroup.com...
-
Page 3: Table Of Contents
SET / SETU and ITT / ITTU SERIES GAS FIRED INFRARED LOW INTENSITY TUBE TYPE TABLE OF CONTENTS TOPIC ..PAGE TOPIC ……...PAGE 13. GAS SUPPLY ..........27 INSTALLATION HEATER EXPANSION........28 IMPORTANT INFORMATION - READ FIRST FLEXIBLE GAS CONNECTION.......28 APPLICATION ..........4 14. ELECTRICAL AND THERMOSTAT....30 HEATER EXPANSION ......5, 31 15. -
Page 4: Application
WARNING Improper installation, adjustment, alteration, service or maintenance can cause property damage, injury or death. Read and understand this installation and op- eration manual thoroughly prior to assembly, installation, operation or service to this appliance. This heater must be installed and serviced only by a trained gas service techni- cian. -
Page 5: Heater Expansion
WARNING Heater Expansion It is a normal condition that during heat-up and cool-down a tube heater will expand and contract. Allowances for heater expansion must be made in the gas connection, venting and combustion air ducting. Improper installation, alteration, or adjustment can result in WARNING Gas Connection Improper installation, connection, or adjustment can result in property... -
Page 6: Clearance To Combustibles
WARNING Clearance to combustibles Location of flammable or explosive objects, liquids or vapors close to the heater may cause fire or explosion and result in property damage, injury or death. Do not use, store or locate flamma- ble or explosive objects, liquids or vapors in proximity of the heater. The clearance to combustible material represents the minimum dis- tance that must be maintained between the outer heater surface and a nearby surface. -
Page 7: Clearances Figure & Table
FIGURE 1 MINIMUM CLEARANCES TO COMBUSTIBLES* - refer to Table 1 for values NOTE: A ‘PEEL & STICK’ SIGN IS SUPPLIED: USE AN INDELIBLE MARKER TO ENTER VALUES ‘H’, ‘S’, ‘F’, & ‘B’ ON . POST THE SIGN ADJACENT TO THE HEATER THERMOSTAT OR IN A See next page for details. -
Page 8: Stacking Height Sign New
tolerance which may degrade at lower temperatures are protected to prevent degrada- tion. VENT END CLEARANCE: Clearances from the vent pipe are determined by local or national installation codes, but must not be less than 6 inches (15 cm). For ‘unvented’ installation, a minimum distance of 24 inches (61 cm) is required from the end of heater to a combustible surface. -
Page 9: Labor Requirements
1. LABOR REQUIRMENTS Two persons are required to safely install this equipment. Wear gloves and other required safety protection. INSTALLATION IN COMMERCIAL AIRCRAFT HANGARS Low intensity radiant tube heaters are suitable for use in aircraft hangars when installed in ac- cordance with the latest edition of the Standard for Aircraft Hangars, ANSI/NFPA No 409 in the USA, or the Canadian Natural Gas and Propane Installation Code, B149.1. -
Page 10: Pre-Installation Survey
WARNING Improper installation, adjustment, alteration, service or maintenance can cause property damage, injury or death. Read and understand this installation and operation manual thoroughly prior to assembly, installation, operation or service to this appliance. This heater must be installed and serviced only by a trained gas service technician. Do not store or use gasoline or other flammable vapours and liquids in the vicinity of this or any other gas fired appliance. -
Page 11: Mounting Clearances
6. MOUNTING CLEARANCES This heater must be mounted with at least the minimum clearances between the heater and combustibles as shown in FIG-1, TABLE 1, Page 7. It is the installer’s responsibility to ensure that building materials with a low heat tolerance which may degrade at lower temperatures are protected to prevent degradation. -
Page 12: Heater Placement Guidelines
TABLE 2: GUIDELINES FOR HEATER PLACEMENT DISTANCE – OUTSIDE WALL MAXIMUM TO HEATER LONG AXIS MODEL DISTANCE (PARALLEL TO WALL) IN “FEET” MOUNTING BETWEEN “Straight” or HORIZONTAL HEIGHT HEATERS ANGLE “U-Tube” ft (m) ft (m) ft (m) SET / ITT 200/140 18 –... -
Page 13: Elbow Kit Dimensions
90° elbows (JS-0528-SM) are shipped as a kit with one coupler, and two reflector end caps. The SET / ITT is available in a “U-Tube” model - SETU / ITTU - using a 180° turn box. A double wide reflector covers the double tube run. Alternately, for a 180° elbow, order 2 x 90° kits that connect to create a 180°. -
Page 14: Suspending The System
8. SUSPENDING THE SYSTEM - GENERAL Inadequate or improper suspension of the tube heater can result in collapse of the system, property damage, and personal injury or death. It is the installer’s responsibility to ensure that the hardware and structural sup- ports from which the heater is suspended are sound and of adequate strength to support the weight and expansion forces of the heater. -
Page 15: Straight Tube System
9 INSTALLATION OF HANGERS, TUBES AND BURNER SET / ITT STRAIGHT TUBE SYSTEM ~ BURNER AND TUBE INSTALLATION Note: Turbulators are ALWAYS installed at the vent end of the heater . 1) Install Hangers: i: No closer than 3” (5 CM) and no further than 5” (10 cm) from the burner/tube flange ii: No closer than 6”... - Page 16 FIGURE 8 BOLTING BURNER TO FLANGED TUBE 1 Eye Bolt 2 Fifth Nut (Holds Inner Burner to Housing - Do Not Remove or Loosen) 3 Lock Washers (4) Four 4 Nuts (4) Four Note: Nuts may be shipped c/w lock-washers as one piece ...
-
Page 17: U' Tube System
SETU / ITTU ‘U’-TUBE SYSTEM ~ BURNER AND TUBE INSTALLATION Note: Turbulators are ALWAYS installed at the vent end of the heater . 1) Install Hangers using chain or other suitable suspension hardware at each side of the hanger: See Figure 11 next page i: Two hangers for first section (from burner), and one hanger for each additional section ii: No closer than 12”... - Page 18 FIGURE 11 ‘U’-TUBE TYPICAL HANGER & SUPPORT SPACING SUSPEND FIRST TUBES BY TWO (2) HANGERS, THEN SUBSEQUENT SECTIONS BY ONE HANGER LOCATE HANGERTS BETWEEN 6” to 18” FROM EACH TUBE COUPLER. INSTALL FIRST AND SECOND TUBES (FROM BURNER END) WITH WELDED SEAM FACING DOWNWARD. 1 - END CAP 4B - JS-0532-VC 4”...
- Page 19 SPECIAL COUPLING: 100,000 Btuh x 20 ft and 175,000 & 200,000 Btuh For all other firing rates refer to Sections 9.1 (Straight Tubes) or 9.2 (‘U’-Tubes) NOTE: The joint between tubes of the 100,000, 175,000 & 200,000 heaters experience strong forces of expansion. Follow instructions below for Special Coupling of the tubes. TOOLS REQUIRED ...
-
Page 20: Reflector Installation
10. REFLECTOR INSTALLATION NOTE: Ensure that you are installing a single reflector - reflectors can ‘stick together’ in packaging - take care to separate them. SET / ITT - STRAIGHT TUBE : After burner and tubes have been installed, slide the re- flectors one at a time into the wire hangers. - Page 21 FIGURE 15 REFLECTOR EXTENSIONS (OPTIONAL - IF REQUIRED ) Reflector Extension Kit JS-0509-KT Includes: Qty 1 x 10 ft long x 10 inch deep reflector extension Qty 3 x “S” Hooks Reflector extensions may be installed one or both sides 1.
-
Page 22: Flue Venting
WARNING 11. FLUE VENTING Inadequate venting of a heater may result in asphyxiation, carbon monoxide poisoning, injury or death. This heater may use a vent connection or indirect venting system to remove products of combustion from the space. Seal all vent connections with high temperature sealant. - Page 23 heaters must be controlled by a single common thermostat or “ON/OFF” switch. A minimum 10 inch (25 cm) length of minimum 26 gauge single walled 4” (10 cm) diameter vent pipe is to be installed on the swaged end of the last tube before any Tee or Elbow is fitted.
- Page 24 Use the approved 4" (10 cm) (JA-0528-XX) or 6" (15 cm) (JA-0529-XX) horizontal wall vent terminal or a high-wind termination cap approved by a recognized certification agency Install termination cap a minimum of 18 inches (45 cm) from the outside wall to the inside edge of terminal opening to alleviate back pressure caused by turbulent wind conditions (See Fig.
-
Page 25: Combustion Air Duct
ERTICAL VENT THROUGH THE ROOF FIGURE 19 It is the sole responsibility of the installer to ad- Approved here to all current local codes and/or ANSI 24” Z223.1 / CSA.B149.1 latest editions for all 60 cm venting requirements, and practices. Approved ... - Page 26 The air intake will not be located less than: Three feet above grade Twelve inches from flue vent terminal of any heater with input up to 100,000 Btu/hr. Three feet from flue vent terminal of any heater over 100,000 Btu/hr. Do not install filters on the combustion air intake.
-
Page 27: Gas Supply
GAS SUPPLY - HEATER EXPANSION - FLEXIBLE GAS CONNECTION The gas supply must be installed to the heater using: USA: an approved Stainless Steel Flexible Gas Connector certified for use on an infrared radiant tube heater (ANSI Z21.24 CSA 6.10); ... -
Page 28: Heater Expansion
NOTE: Access to the manifold pressure test port is on the top of the valve. A 3/16" Allen Wrench is necessary to check this. When checking or setting the manifold pressure, a water manometer should be used. Gauges which measure in ounces per square inch or pounds per square inch are not accurate enough to properly measure or set the pressure. - Page 29 FIGURE 20 ORIENTATION OF FLEXIBLE GAS CONNECTOR The flexible gas connector MUST be installed in the orientation shown below as required by national installation codes and by the certification standard of this heater. This orientation protects the flexible gas connector from damage due to movement during heater expansion.
-
Page 30: Electrical And Thermostat
14. ELECTRICAL AND THERMOSTAT WIRING (WIRING DIAGRAMS PAGE 35 & 36) The heater must be electrically grounded in accordance with the NOTICE National Electrical Code. ANSI / NFPA 70 or current Canadian Electrical code CSA C22.1. Appliance and control wiring must be in accordance with all applicable local codes. The total load of all heaters must be considered in determining the required contact rating of the con- trolling thermostat or switch. -
Page 31: See Also "Flexible Gas Connection
18. WIRING DIAGRAM - HONEYWELL S87J1034 24 VOLT TWO STAGE GAS VALVE – USING 24V TWO STAGE THERMOSTAT (FOR MULTIPLE HEATERS PER THERMOSTAT SEE NEXT PAGE) Maximum Power Flow = 21VA Each tube heater requires 120V, 60 HZ electrical power sized for 145VA. The heater includes a 24V/120V relay switch . -
Page 32: Wiring Diagram Multiple Heaters Per 2-Stage Thermostat
19. WIRING DIAGRAM - MULTIPLE 2-STAGE HEATERS PER THERMOSTAT (FOR SINGLE HEATER PER THERMOSTAT SEE PREVIOUS PAGE) (previous page) Maximum Power Flow = 21VA GP-MSET-EX-6A SET(U) / ITT(U) Manual RD: MAY 2009 RL: 06A- BA... -
Page 33: Sequence Of Operation
20 SEQUENCE OF OPERATION The S87 ignition control module is powered by a 24v transformer and activated when the ther- mostat calls for heat. On every call for heat the S87J will delay start-up to provide a 30 second system pre-purge. When the S87 is activated by a thermostat or call for heat an internal trans- former provides power to the electronic generator circuit for Spark Ignition and the safety lock- out timing begins. -
Page 34: Troubleshooting Guide
21. TROUBLESHOOTING GUIDE Improper adjustment, alteration, service or maintenance can WARNING cause property damage, injury or death. This heater must be installed and serviced only by a trained gas service technician SEQUENCE OF EVENTS APPLY 120 VOLTS SET THERMOSTAT TO CALL FOR HEAT ... - Page 35 MAIN BURNER LIGHTS CHECK FOR STRONG SPARK AT IGNITER.. (SEE PREVIOUS PAGE). CHECK FOR 24 VAC ACROSS GAS VALVE. CHECK OUTPUT VOLTAGE FROM CONTROL TER- MINALS TO GAS VALVE..IF NO VOLTAGE RE- PLACE CONTROL. CHECK ELECTRICAL WIRING, AND VOLTAGE BE- TWEEN IGNITION CONTROL AND GAS VALVE.
-
Page 36: Spark Ignition Circuit
22. SPARK IGNITION CIRCUIT The step-up transformer in the ignition control provides spark ignition at 30,000 volts (open cir- cuit). To check the spark ignition circuit, proceed as follows. Shut off gas supply to the gas control Disconnect the ignition cable at the ignition control stud terminal to isolate the circuit from the Spark Igniter or Igniter / Sensor ... -
Page 37: Flame Sensing Circuit
23. FLAME SENSING CIRCUIT The output of the flame sensing circuit cannot be checked directly on the S87 body. Check the flame sensing circuit directly by checking the flame sensing current from the sensor to the S87 as follows. 1. Connect a meter (dc microammeter scale) in series with the flame signal ground wire as shown below. -
Page 38: Start- Up / Commissioning Sheet
24. START-UP / COMMISSIONING SHEET THIS EQUIPMENT HAS BEEN FACTORY FIRED AND TESTED PRIOR TO SHIPMENT. HOWEVER, THIS APPLIANCE IS NOT “PLUG & PLAY”. IT RE- QUIRES COMMISSIONING AND FIELD ADJUSTMENT / SPECIFICATIONS CONFIRMATION TO ENSURE SAFE AND EFFICIENT OPERATION. COMMISSIONING REPORT AS PER I&O MANUAL AND LOCAL CODES CONTRACTOR NAME: ................DATE........ - Page 39 QUALIFIED INSTALLER TO COMPLETE THIS TUBE HEATER COMMISSIONING REPORT TYPE OF GAS: DOES BUILDING HAVE A NEGATIVE CONDITION: IF THIS IS A HIGH ALTITUDE AREA WHAT IS THE ALTITUDE ABOVE SEA LEVEL Feet DOES APPLICATION REQUIRE FRESH AIR TO BURNER IS HEATER EXPOSED TO CHEMICAL OR CORROSIVE ATMOSPHERE: ARE ACTUAL MINIMUM CLEARANCES AS PER TABLE 3 CAN HEATER BE AFFECTED BY OVERHEAD CRANES / VIBRATION...
-
Page 40: Heater Dimensions / Weights
25. BTUH INPUT RATINGS AND CORRESPONDING DIMENSIONS OVERALL APPROX OVERALL APPROX HIGH-FIRE HIGH-FIRE NOMINAL NOMINAL HEATER HEATER INPUT INPUT LENGTH LENGTH LENGTH* WEIGHT** LENGTH* WEIGHT** (FT) (FT) BTUH BTUH (FT) (LBS) (FT) (LBS) 200,000 110,000 40’ 8” 200,000 50’ 4” 110,000 175,000 100,000... -
Page 41: Installation Dimensions
FIGURE 21 BURNER DIMENSIONS FIGURE 22 HANGER SPACING / LENGTH - AIR INTAKE TO VENT END POSITION BURNER END HANGER 4 INCHES (10 CM) FROM BURNER LOCATE SYSTEM HANGERS NO LESS THAN 6 INCHES (15 CM) AND NO MORE THAN 24 INCHES (61 CM) FROM TUBE COUPLING * ANGLE BURNER SUPPORT CHAIN BACK OVER BURNER - ALLOWS TUBE SYSTEM EXPANSION Tube... -
Page 42: Straight Tube System
26A. BURNER & TUBE KIT ASSEMBLY CHART MODELS S100 / ITB MODELS SET & ITT are approved for indoor commercial / industrial non-residential applica- tions. For outdoor, wet and harsh environment applications refer to models SPW-JZ / IWP (powder coated burner box) and/or STW-JZ / IW (stainless steel burner box). BEFORE INSTALLING: ENSURE you have the CORRECT TUBE KIT(s) for the BURNER INPUT 'SET / ITT' TUBE KIT PART # &... -
Page 43: U' Tube System
26B. BURNER & TUBE KIT ASSEMBLY CHART MODELS S100U / ITBU MODELS S100U & ITBU are approved for indoor commercial / industrial non-residential appli- cations. For outdoor, wet and harsh environment applications refer to models SPW-JZ / IWP (powder coated burner box) and/or STW-JZ / IW (stainless steel burner box). BEFORE INSTALLING: ENSURE you have the CORRECT TUBE KIT(s) for the BURNER INPUT SETU / ITTU TUBE KIT PART # &... -
Page 44: Turbulators
TURBULATORS: NOTE: Improper location of a turbulator can cause malfunction of the heater, property damage, and will void the heater warranty. Tube Heaters are supplied with all required turbulator(s) factory installed into the tube(s). Tubes with turbulators are installed at the vent end of the system configuration and are clearly labeled for easy identification. - Page 45 HIGH ALTITUDE INSTALLATION continued ORIFICE CHART - ALTITUDE CONVERSION ~ SEE NOTES ON PREVIOUS PAGE ~ FOR USE AT ALTITUDES ABOVE (FEET) Gas Orifice Drill Size / Part# MODEL USA Only USA & CANADA* Supplied 2000 3000 4000 5000 6000 7000 8000 18 DMS...
-
Page 46: Optional Accessories
29. OPTIONAL ACCESSORIES JL-0800-XX #2 Lion Chain (115 lb work load) - 200 ft roll ‘S’ Hooks - 1 7/8” - package of 25 JL-0798-SH Flue Vent Terminal 4” wall horizontal JA-0528-XX 6” wall horizontal JA-0529-XX Torctite Coupler Sufficient quantity supplied with heater JA-0516-SW Use for connection of vent tee, or... - Page 47 Fresh Air Intake Adapter JS-0532-SE Fresh Air Intake Cap—Wall JS-0532-VC Fresh Air Intake Cap—Roof JA-0530-XX 4” roof cap JA-0531-XX 6” roof cap 2-Stage Low Voltage Digital Thermostat (24 Volts - °F or °C selectable) JS-0569-DT Not for use in corrosive or wet environments Required For MULTIPLE HEATERS per Thermostat: 24 RELAY...
- Page 48 JS-0508-SM 90 degree Aluminized Steel Elbow (Kit includes: aluminized steel elbow, coupler, and two reflector end caps) For 180° elbow use two x JS-0508-SM, or use Model SETU / ITTU that includes 180° Turn Box Side Reflector Extension Kit- l0” deep, l0 ft long Each JS-0509-KT Includes 3 ‘S’...
-
Page 49: Burner Parts List
30 REPLACEMENT PARTS SET / ITT Burner PART DESCRIPTION PART # PART DESCRIPTION PRIMARY SUPPLEMENT 1 BURNER HOUSING JS-0582-XX Burner housing (painted orange) 2 PRESSURE SWITCH TUBING JS-0572-SE P.V.C. tubing set (2 x 20") 3 BURNER HEAD JS-0510-LP Burner head (45-80) 60-80 JS-0512-XX Burner head (110-200) - Page 50 PART DESCRIPTION PART # PART DESCRIPTION PRIMARY SUPPLEMENT 6 OUTER BURNER JS-0504-XX Outer burner assembly - Silver JS-0504-BK Outer burner assembly - Black 7 EQUALIZER PLATE JS-0593-XX Outlet equalizer plate (60 to 200) 8 BLOWER GASKET JS-0578-XX Outlet blower gasket each 9 AIR INLET C/W SCREEN JS-0595-AC...
-
Page 51: Tube System Parts List
SET / ITT & SETU / ITTU TUBE SYSTEM PARTS PART DESCRIPTION PART # PART DESCRIPTION PRIMARY SUPPLEMENT 24 WIRE HANGER JS-0505-EH Small wire hanger 25 REFLECTOR JS-0502-EM Reflector (18" x 120") 26 END CAP JS-0502-ES S100 / ITB series reflector end cap 27 LOW INTENSITY TUBE JS-0501-SW-P Aluminized tube,flanged,swaged c/w ports 60-155... - Page 52 Warranty is only applicable to Schwank components, other parts are limited to their own Manufacturers warranty period of one year (1 year).
