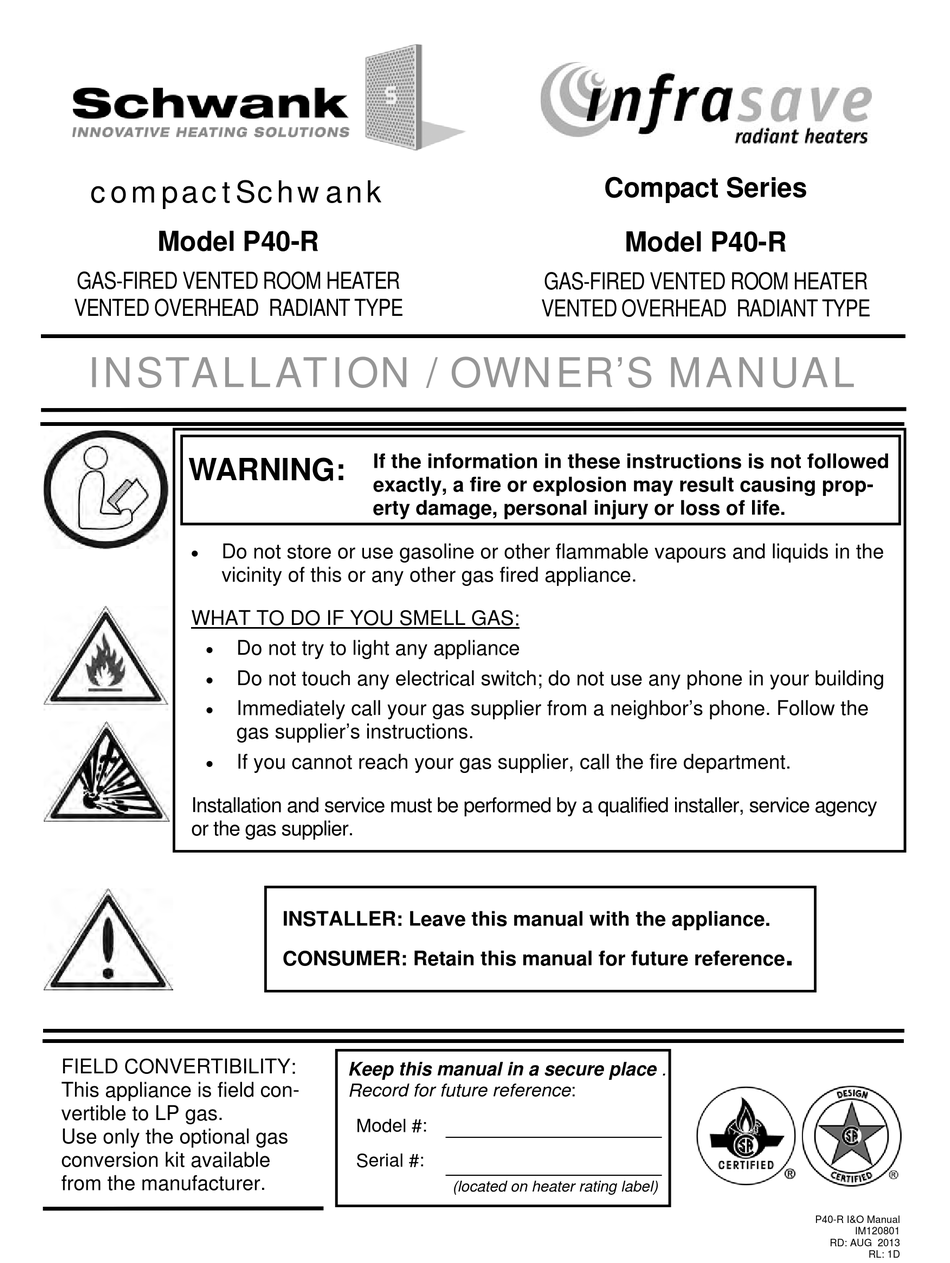

compactSchwank
Model P40-R
GAS-FIRED VENTED ROOM HEATER
VENTED OVERHEAD RADIANT TYPE
INSTALLATION / OWNER'S MANUAL
WARNING:
Do not store or use gasoline or other flammable vapours and liquids in the
vicinity of this or any other gas fired appliance.
WHAT TO DO IF YOU SMELL GAS:
Do not try to light any appliance
Do not touch any electrical switch; do not use any phone in your building
Immediately call your gas supplier from a neighbor's phone. Follow the
gas supplier's instructions.
If you cannot reach your gas supplier, call the fire department.
Installation and service must be performed by a qualified installer, service agency
or the gas supplier.
FIELD CONVERTIBILITY:
This appliance is field con-
vertible to LP gas.
Use only the optional gas
conversion kit available
from the manufacturer.
If the information in these instructions is not followed
exactly, a fire or explosion may result causing prop-
erty damage, personal injury or loss of life.
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference
Keep this manual in a secure place .
Record for future reference:
Model #:
Serial #:
(located on heater rating label)
Compact Series
Model P40-R
GAS-FIRED VENTED ROOM HEATER
VENTED OVERHEAD RADIANT TYPE
.
P40-R I&O Manual
IM120801
RD: AUG 2013
RL: 1D
