4 . 1 3 . 5 T r a f f i c G r a p
4 . 1 3 . 5 T r a f f i c G r a p

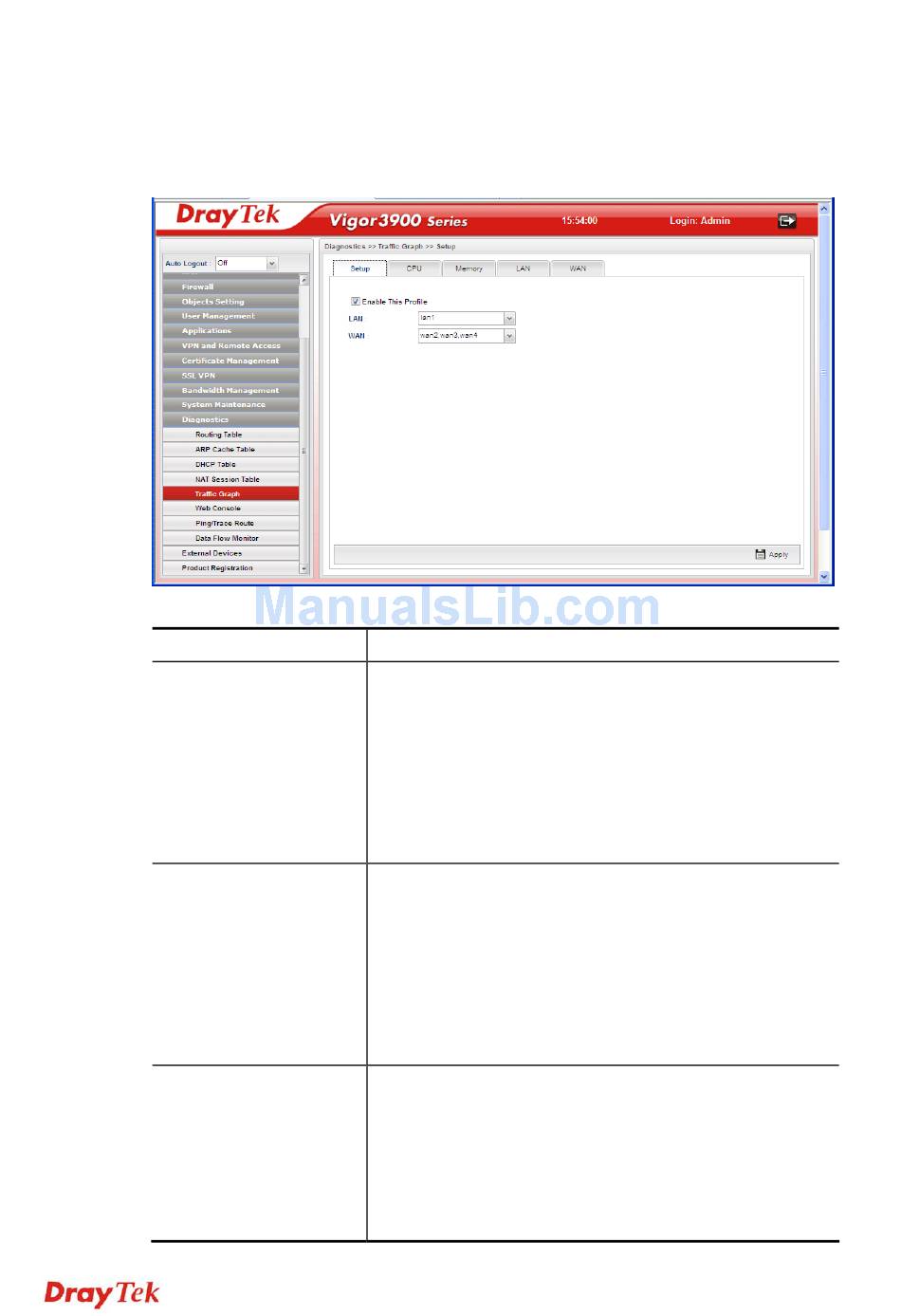

Click Diagnostics and click Traffic Graph to pen the web page. Specify LAN and WAN
profiles to display corresponding graphs for CPU, Memory, LAN and WAN configurations.
Click Refresh to renew the graph at any time.
Each item will be explained as follows:
Item
Setup
CPU
Memory
h
h
Description
In this page, simply specify which LAN profile and WAN
profile will be applied. The traffic graph will be drawn based
on the profiles selected.
Enable This Profile – Check this box to enable such profile.
LAN – Use the drop down menu to choose a LAN profile.
WAN –Use the drop down menu to choose a WAN profile.
Apply - Click it to save the configuration configured under
the Setup tab.
Click the CPU tab.
There are three selections provided for you to specify.
Recent 24 Hours – Display the information of CPU
operation about recent 24 hours.
Recent 7 Days – Display the information of CPU operation
about recent 7 days.
Recent 4 Weeks – Display the information of CPU
operation about recent 4 weeks.
Click the Memory tab.
There are three selections provided for you to specify.
Recent 24 Hours – Display the information of memory
operation about recent 24 hours.
Recent 7 Days – Display the information of memory
operation about recent 7 days.
Recent 4 Weeks – Display the information of memory
290 Vigor3900 Series User's Guide
