E Y E Z O N E

B500C

Digital Signage Player

Supports SD(HC)/ CF Card

Programmed Play Function

One File Repeat Function

USB Auto-Copy Function

INTRODUCTION

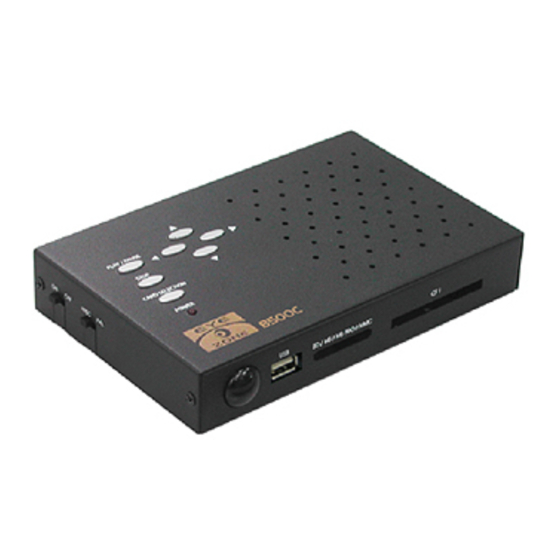

The B500C is a palm-size digital signage player that plays picture, music and video without a computer. It uses media files

from CF, SD(HC), MMC and MS(Pro) memory card. By connecting Video, S-Video, VGA and Audio, you can play media files

on any display device.

The B500C features Programmed Play and One File Repeat function, and supports USB host (for Auto-Copy function),

optional IR input (for connecting to the PIR Sensor) and optional Laser Scanner input.

Programmed Play Function:

Sets the files to play on the list, and make them in the order you like.

One File Repeat Function:

Repeat only the selected file.

USB Auto-Copy Function:

Automatically copy the media files from Pen Driver to CF card.

PIR Sensor (optional):

After sensing approaching subjects, the B500C will play the files automatically.

Laser Scanner (optional):

The B500C will display the corresponding file when the laser scanner scans the bar-code.

With the portable B500C, you can play the shows on any display device for advertising, presentations, training, and other

media applications.

Table of Contents

Do you have a question about the B500C and is the answer not in the manual?

Page 1 INTRODUCTION The B500C is a palm-size digital signage player that plays picture, music and video without a computer. It uses media files from CF, SD(HC), MMC and MS(Pro) memory card. By connecting Video, S-Video, VGA and Audio, you can play media files on any display device.
Page 2 The B500C will play the specified files at the specified time. - Laser Scanner: The B500C will display the corresponding file when the laser scanner scans the bar-code. - PIR Sensor: After sensing approaching subjects, the B500C will play the files automatically.
Page 3 CONNECTION...
Page 4 The B500C will power on/ off automatically at the specified time. Schedule Function (optional): The B500C will auto play the specified file at the specified date. There are two modes: “Basic Mode” and “Advance Mode”. - Basic Mode: You can select files that you want to play and set up the volume and the play times of each file.
Page 5 Sensing distance is up to 3 meters with an angle of 45. The PIR sensor is not only an external remote control receiver, but also a motion detector. Laser Scanner: The B500C will play the corresponding file (up to 1000 files) when scans the barcodes on products.
Page 6 The Play Button Box supports up to 12 play-button inputs. Press one of the play buttons to play the corresponding file. Wireless Touch-Sensor Buttons Press one of the touch-sensor buttons, the B500C will play the corresponding file automatically. The sensing distance is up to 3M. Optional S/PDIF Output...
