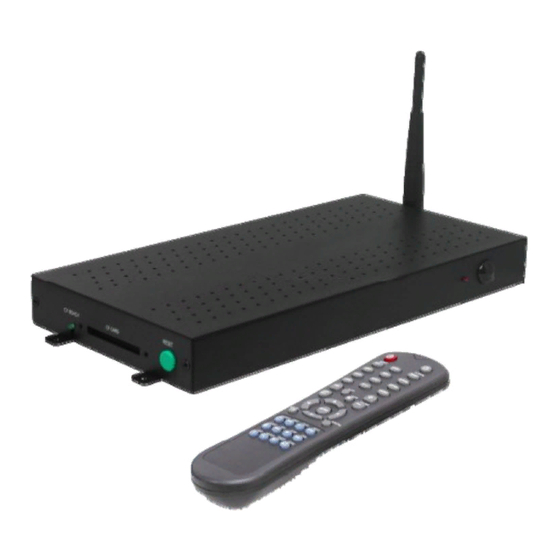

B1080PW-2
User Manual
Mar 26, 09
FCC Notices
It's herewith confirmed to comply with the requirements of FCC Part 15 Rules. Operation
is subject to the following two conditions:
This device may not cause harmful interference.
This device must accept any interference received, including interference that may
cause undesired operation.
Note: This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when the equipment is operated in a
residential installation. This equipment generated uses and can radiate radio frequency
energy and if not installed and used in accordance with the instruction manual may cause
harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio of television reception, which can be determined by turning the
equipment off or on, the user is encouraged to try to correct the interference by one or
more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
Consult the dealer or an experienced radio TV technician for help.
CE Declaration
This device complies with CE class B.
EN55022
IEC 61000-4-4
EN61000-3-2
IEC 61000-4-5
EN61000-3-3
IEC 61000-4-6
EN55024
IEC 61000-4-8
IEC 61000-4-2
IEC 61000-4-11
IEC 61000-4-3
Printed in Taiwan R.O.C.
All contents are subject to change without notice.
All trademarks are the property of their respective owner.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the B1080PW-2 and is the answer not in the manual?

Questions and answers

Related Manuals for EYEZONE B1080PW-2

Summary of Contents for EYEZONE B1080PW-2

  • Page 1 FCC Notices B1080PW-2 It’s herewith confirmed to comply with the requirements of FCC Part 15 Rules. Operation is subject to the following two conditions: This device may not cause harmful interference. User Manual This device must accept any interference received, including interference that may cause undesired operation.

  • Page 2: Table Of Contents

    2. INTRODUCTION 8.3 Play the Media Files on the PC…………..……………… 19 8.4 Download/ Upload Media Files…………..……………… 22 The B1080PW-2 is a digital media player that plays HD WMV9 and WMA from CF memory 8.5 RS-232 Function……………………………..…………….. 25 card without a computer.

  • Page 3: Features

    Supports Auto Key Lock function. Exports the Configuration Value: You can export the configuration value to the CF card. The configuration can be modified on your PC, and can be applied to the B1080PW-2 or Power Switch: Toggle between main power on & off.

  • Page 4: Remote Control

    Status 1: If the “AUTOPLAY (Movie or Picture)” function is enabled and there are movie or Open the setup menu Mute sound OSD display function on/ off picture files on the CF card, the B1080PW-2 will auto play movie or picture files on the CF Auto-play function on/ off card after power on.

  • Page 5: Setting Up

    Wi-Fi SSID: Select the SSID that is being used by your wireless network. NOTE: If your router does not list its SSID, then it is a hidden network, and the B1080PW-2 cannot detect it. You must manually enter your wireless settings in “Wi-Fi Encryption Setup”.

  • Page 6: Ftp Setup

    Continental GMT (U.S. & (GMT-07:00) (GMT+03:30) Tehran Local FTP Server: Turn on/ off the B1080PW-2 server. Canada) (If you use the B1080PW-2 server, please disable the DHCP function and input a fixed IP (GMT-07:00) Arizona (GMT+04:00) Baku, Tbilisi, Ere van (GMT-06:00)

  • Page 7: Video Setup

    Download Time: Set the FTP auto-download time. Local HTTP Server: Enable/ Disable the HTTP command function. Local HTTP Server Setup: To set the “Port”, “User ID” and “Password” of the B1080PW-2. (The Default Port: 80, User ID: root, Password: admin) NOTE: Press the “SETUP”...

  • Page 8: Using The B1080Pw-2

    8.1 PLAY MEDIA FILES ON THE CF CARD Step 1: Insert the CF card with media files, then turn on the B1080PW-2 and press the “ENTER” button on the remote control when “’mnt/CF” is highlighted to take you into the CF card.
  • Page 9 8.1.1 Using the Remote Control When Media File Is Playing PAUSE/STEP: Pause the playback or play frame by frame. SETUP: Press the button to adjust the brightness, contrast or saturation while the movie or picture ZOOM: Zoom in/ out on the movie or picture. is playing.

  • Page 10: Download Function

    B1080PW-2 will download all the files from the FTP server at the designated time. 8.2.2 Auto Download Function If there are more than one B1080PW-2, you can use ftp tools to divide them into different regional group. NOTE: The filename of the media files in FTP server cannot have any spaces.

  • Page 11: Play The Media Files On The Pc

    NOTE: If the network connection is unstable or broken, a pop-up window will appear as shown below. Step 3: Click the “Library” tab, and then click “Add to Library”. The B1080PW-2 will attempt to resume downloading in 2 minutes. The user can terminate the download by pressing the “RETURN” button.
  • Page 12 “Allow” to share the media files. Step 6: Select the “Share my media”, and click “OK”. Step 9: The shared folder will appear on the screen of the B1080PW-2. Select the folder and click the “ENTER” button on remote control to go into the folder.

  • Page 13: Download/ Upload Media Files

    IP Address (example. 192.168.1.100), Mask and Gateway for the B1080PW-2 (refer to 7.1). Step 6: After logging on, all the media files in the CF card on the B1080PW-2 will be listed. You can download and upload the media files between CF card and your PC.

  • Page 14: Rs-232 Function

    - ASCII Command: The available baud rates is 38400. 2. The reaction time of B1080PW-2 is around three seconds. CuteFTP Keyboard Layout - You can create all the B1080PW-2, and only select the B1080PW-2 that you want to connect in the list. q：POWER -：VOL - w：SLOW R：RETURN...

  • Page 15: Http Command Function

    (Default User Name: root, Default Password: admin) to log on. After logging on all the media files in the CF card on the B1080PW-2 will be listed. You can download and upload the media files between CF card and your PC.

  • Page 16: Network Setup

    Network Interface: Select your network connection Disable/ RJ45/ Wi-Fi. DHCP: Enable/ Disable the DHCP function. IP Address: Enter the fixed IP address, Mask, Gateway and DNS for the B1080PW-2. FTP Server: Enable/ Disable the FTP Server function. You can also change the User ID, Password and port of the FTP Server.

  • Page 17: Schedule Function

    10.2.1 Basic Schedule 10. SCHEDULE FUNCTION In the “Basic Schedule” mode, you can select files that you want to play and the set up the play times of each file. NOTE: The “NTP Server” or “Local Time” must be set before using the Add: Click this button to add a file.
  • Page 18 Step 2: Click the “Add” button in the “File Setup” section to open the “Schedule File Editor” window. NOTE: Do not rename the file (schedule.ini), otherwise the B1080PW-2 will not be able to read the file. Click the “Browser” button to select a file that you want to play. You can also set up the “Play Times” of...

  • Page 19: Apply The Schedule On The B1080Pw-2

    No any schedule file in advance schedule! Can’t Save! NOTE: Do not rename the file (schedule.ini), otherwise the B1080PW-2 will not be able to read the file. There is no schedule file in the advance schedule. Please add files that you want to play in the advance schedule.

  • Page 20: Optional Auxiliary Equipment

    Hardware Connection 11.3.1 Using the PIR Sensor Step 1: Insert the CF card to the B1080PW-2, and the B1080PW-2 will play the default file automatically while powered on. Step 2: After sensing approaching subjects, the B1080PW-2 will play the first demo file.

  • Page 21: Troubleshooting

    11.4.4 Play the Demo Files pressing the wireless 1. Confirm the polarity of the battery. Step 1: Insert the CF card to the B1080PW-2, and the B1080PW-2 will play the default file automatically touch – sensor buttons while powered on.
