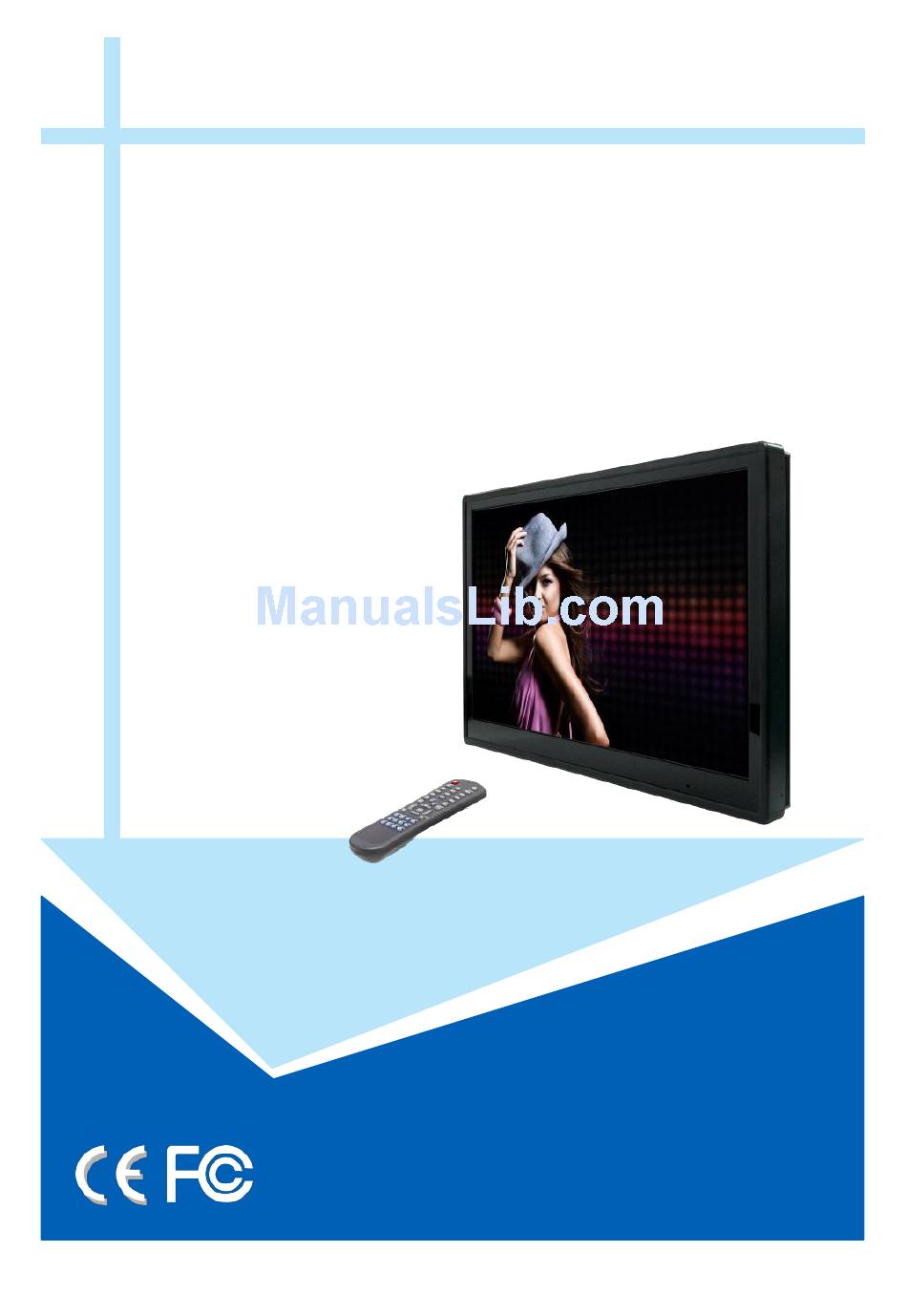

Page 1: User Manual
EYEZONE PA22B1080PX-5 User Manual Aug 10, 10... -
Page 2: Table Of Contents
10. Schedule Function……………..…..……..……….………….. 34 10.1 Install the Schedule Software…….……..……………….. 34 10.2 Start the Schedule Software…..……………...………….. 35 10.3 Apply the Schedule on the PA22B1080PX-5…..…….. 39 11. Optional Auxiliary Equipment……..……..………..………….. 40 11.1 Play-Button Box (Eyezone BB)………..………..……….. 40 11.2 Touch-Sensor Buttons…..…………………….………….. 41 12. Troubleshooting…………………………………..……………. 43... -
Page 3: Package Contents
Remote Control CF Card Protective Cover Power Adapter 2. INTRODUCTION The Eyezone PA22B1080PX Series is a high-class Digital Signage with high-end performance. The advanced technology provides the smoothest and clearest image for playing advertising contents. The PA22B1080PX-5 is a network digital signage that plays media files from CF memory card without a computer. -
Page 4: Features
3. FEATURES Supports multiple file formats: WMV9 and WMA. Built-in 22” TFT-LCD display and stereo speakers. Supports resolution up to 1680 x 1050. Support VESA 100 (100mm x 100mm). Supports video input to display live videos from TV box, DVD player or camera. ... -
Page 5: Hardware Overview
4. HARDWARE OVERVIEW CF Card Slot: Insert the CF memory card with contents. RS-232 Connector: Used for computer control with ASCII command. Video & Audio Input: Connects to video sources (TV Box or DVD player). DC Input: For the power adapter. (DC 12V / 4.16A) ... -
Page 6: Remote Control
5. REMOTE CONTROL Power on/ off Select the output mode Numeric Key Delete last entry Select a function or to play the selected file Open the setup menu Mute sound OSD display function on/ off Auto-play function on/ off Mute sound Volume up/ down Move the cursor Confirm the selection/ entry... -
Page 7: Start The Pa22B1080Px-5
6. START THE PA22B1080PX-5 Power On Insert the CF memory card that has Picture, Music, Movie or WMV9 files. Connect the power adapter and the PA22B1080PX will power on automatically. NOTE: The PA22B1080PX can’t be turned on without inserting the CF card. ... -
Page 8: Setting Up
7. SETTING UP In the main menu, using the “▼” button on remote control to select the “SETUP” item, and then press the “ENTER” button. You will be presented with the PA22B1080PX-5 settings screen. You can also press the “SETUP” button on remote control to directly open the settings screen. (If there is file that is being play, please stop first.) ... - Page 9 7.1 NETWORK SETUP (continued) Assign IP Address: If the PA22B1080PX-5 is connected to a network without a DHCP server or you want to use Local FTP Server function, enter the fixed IP address, Mask, Gateway and DNS for the PA22B1080PX-5. PS.
-
Page 10: Setting The Network From The Ip Detect Tool
7.1.2 Setting the Network from the IP Detect Tool With the bundle tool “IP Detect”, user could search PA22B1080PX-5 on the local area network. User could also change the IP setting via this tool. For example, user might assign a static IP to PA22B1080PX-5 by the steps as below: Step1: Insert the driver CD into your CD-ROM drive, then the autorun function will start up the shell program. - Page 11 Step3: Double click on the icon to start the tool. Step4: Click on the “Auto Detect” button, then the tool will show all available PA22B1080PX-5 in the local area network. NOTE: When use PA22B1080PX-5 under a DHCP-enabled network, user sometimes does not know which IP address is assigned to PA22B1080PX-5.
- Page 12 Step6: The default IP mode of PA22B1080PX-5 is DHCP. You should change the mode to “Manual”, if you want to assign a static IP address to PA22B1080PX-5. Then enter the preferred “IP”, “Net Mask” and “Gateway” in the “Network Setting”. Finally, click on the “Setup” button for completing the setting. NOTE: The IP setting will not show on the OSD menu instantly, but it should be available after pressing “Setup”...
-
Page 13: Ftp Setup
7.2 FTP SETUP Local FTP Server: Turn on/ off the PA22B1080PX-5 server. (If you use the PA22B1080PX-5 server, please disable the DHCP function and input a fixed IP address, Mask, Gateway and DNS of the PA22B1080PX-5) Local FTP Server Setup: Set the “Port”, “User ID” and “Password” of the PA22B1080PX-5. (The Default Port: 21, User ID: root, Password: admin) ... - Page 14 NOTE: GMT and applied regions Time Zone Region Time Zone Region (GMT-12:00) Eniwetok, Quazalen (GMT+02:00) Helsinki, Riga, Tallinn (GMT-11:00) Midway, Ireland, Samoa (GMT+03:00) Nairobi Moscow, Saint Petersburg, (GMT-10:00) Hawaii (GMT+03:00) Volgograd (GMT-09:00) Alaska (GMT+03:00) Baghdad Pacific GMT (U.S. & Canada); (GMT-08:00) (GMT+03:00) Kuwait, Raid...
-
Page 15: Other Setup
② Local Time: Set the system time manually. NOTE: If the NTP Server and Local Time have been set, the NTP Server will be the first priority (the PA22B1080PX-5 is already connected to the network). Local HTTP Server: Enable/ Disable the HTTP command function. ... - Page 16 7.3 OTHER SETUP (continued) Export Setting File Step1. Press the “Enter” button to export the configuration value to the CF card. Step2: Copy the file “HDPlayerSetting.txt” on CF card to your PC. Use the “Wordpad” to open the file, and you can see all the configuration value of PA22B1080PX-5.
-
Page 17: Scrolling Text Setup
7.4 Scrolling Text Setup Multiple Display: Movie (full): Display videos (full screen) with scrolling text. Movie (small): Display videos (original size) with scrolling text. Movie + PIC (L): Play videos and pictures with scrolling text, and the pictures are on the left. -
Page 18: Using The Pa22B1080Px-5
8. USING THE PA22B1080PX-5 8.1 PLAY MEDIA FILES ON THE CF CARD Step 1: Insert the CF card with media files and plug in the power supply to turn on the PA22B1080PX-5. Press the “ENTER” button on the remote control when “’mnt/CF” is highlighted to take you into the CF card. -
Page 19: Using The Remote Control When Media File Is Playing
8.1.1 Using the Remote Control When Media File Is Playing SETUP: Press the button to adjust the brightness, contrast or saturation while the video or picture is playing. With the “+ VOLUME –” button. - First Press: Adjust the brightness. - Second Press: Adjust the contrast. - Page 20 PAUSE/STEP: Pause the playback or play frame by frame. ZOOM: Zoom in/ out on the movie or picture. Original Size First Press：ZOOM 01 Second Press：ZOOM 02 Third Press：ZOOM 03...
-
Page 21: Multiple Display Zones
8.2 MULTIPLE DISPLAY ZONES Step 1: Put movies, pictures (only supports PNG format/ size: 213x641/ 96DPI) and text file on CF card. Picture Files If you select the “By Slide Time” item of the picture slide mode; please name the picture files 0.png ~ 9.png. -
Page 22: Video In
8.3 VIDEO IN Mode 1: Only play live Videos from video sources. Step 1: Connects the Video source (DVD Player or TV Box) to video input of the PA22B1080PX-5. Step 2: Turn off the background of scrolling text (refer to section 7.4 Scrolling Text Setup). Step 3: Select the Video In item to directly play the live videos on your screen. - Page 23 Step 4: Select the Video In item to directly play the live videos and scrolling text on your screen. Mode 3: Play live videos, pictures and scrolling text simultaneously Step 1: Connects the video source (DVD Player or TV Box) to video input of PA22B1080PX-5. Step 2: Put pictures (only supports PNG format/ size: 213x641/ 96DPI) on the CF card.
-
Page 24: Ftp Auto Download Function
8.4 FTP AUTO DOWNLOAD FUNCTION Step1: Use the “Notepad” to create a commands file on your PC as shown below (you can refer to the sample file (d0013fe100000) on the provided CD): Item Description Initial time and interval time setting (for connecting to the FTP server and checking whether the [Interval] commands file in the FTP) 30 1... - Page 25 Item Description Enter the filename you want to download. [file] 001.mpg Note: The length of file name and extension cannot exceed 20 characters. 002.mpg The file schedule.ini is created by the Schedule Maker software. (refer to section 10) 0.png The file message1.txt is a text file that can change scrolling text settings. Use the “Notepad” to 1.png create the text file on your PC as shown below, and named the file message1.txt (you can refer to schedule.ini...
- Page 26 Step2: Remember to save the file after editing and named the command file d + MAC address.txt. Example: The MAC address of PA22B1080PX is 0013fe089253 and named the file d0013fe089253.txt. NOTE: The MAC address of PA22B1080PX will be displayed in the setup menu. Step3: Put all the files (included media files/ command file (ex.
-
Page 27: Rs232 Function
8.5 RS-232 FUNCTION (RS-232 cable is optional) Step1: Using the RS-232 cable (optional) to connect the PA22B1080PX-5 to your PC. Step2: Use the tool “Tera Term” or other tools to control the PAB1080PX-5 with ASCII command. - The available baud rate is “19200”. - The reaction time of PA22B1080PX-5 is around three seconds. -
Page 28: Http Command Function
9. HTTP COMMAND FUNCTION Confirm that the PA22B1080PX-5 is already connected to the network. (Refer to section 7.1) Confirm the “Local HTTP Server” function has been enabled, and the “Local HTTP Server Setup” set has been completed (refer section to 7.2). ... -
Page 29: Control
9.1 CONTROL Control: Select one of the control command s, and press the “Send” to control the PA22B1080PX-5 immediately. Stop: Stop playback Play: Start playback. Pause: Pause the playback. Prev: Play the previous file. Next: Play the next file. Volume: Adjust the volume. -
Page 30: Network
9.2 NETWORK Network Enable: Enable or disable the network function. Interface: Select your network connection Ethernet (wired) or Wireless. General Setup Enable DHCP: Enable or disable the DHCP function. IP/ Subnet/ Gateway/ DNS server: Enter the fixed IP address, Subnet, Gateway and DNS for the PA22B1080PX-5. -
Page 31: Server
9.3 SERVER Download from FTP Server Enable: Enable or disable the FTP auto download function. Port: The default port for FTP is 21. In most cases you should not change this number. If the FTP site uses a port other than 21, you should enter the correct port. IP address: Enter the domain name or IP address of the remote FTP server. -
Page 32: Time
9.4 TIME NTP Server Enable: Enable or disable the NTP server function. GMT Server: Enter the NTP server IP address like: 66.187.233.4. Time Zone: Set the time zone of your location. -
Page 33: Features
9.5 FEATURES Web Interface Enable: Enable or disable the HTTP command function. Port: Enter the port of the PA22B1080PX-5 (default port: 80) User ID: Enter the user name of the PA22B1080PX-5 (default ID: root). Password: Enter the password of the PA22B1080PX-5 (default password: admin). ... -
Page 34: Schedule Function
10. SCHEDULE FUNCTION NOTE: The “NTP Server” or “Local Time” must be set before using the Schedule Function. (refer to section 7.2) 10.1 INSTALL THE SCHEDULE SOFTWARE Step1: Insert the driver CD into your CD-ROM drive, then the autorun function will start up the shell program. -
Page 35: Start The Schedule Software
10.2 START THE SCHEDULE SOFTWARE You might double click the “Schedule Maker” icon on your desktop for opening the “Schedule Generator”. Or you might click on <Start> → <Programs> → <Schedule Maker 20090217> → < Schedule Maker > for starting the program. ... - Page 36 Modify: Click this button to modify the file in the list. Select the file that you want to modify in the list, and press the “Modify” button. Remove: Click this button to remove the file from the list. ...
-
Page 37: Advance Schedule
Press the “SAVE” button and a pop-up window will appear. Select the path, then click the “SAVE” button to save your setup. NOTE: Do not rename the file (schedule.ini), otherwise the PA22B1080PX-5 will not be able to read the file. 10.2.2 Advance Schedule In the “Advance Schedule”... - Page 38 Step 2: Click the “Add” button in the “File Setup” section to open the “Schedule File Editor” window. Click the “Browser” button to select a file that you want to play. You can also set up the “Play Times” of the file in the window.
-
Page 39: Apply The Schedule On The Pa22B1080Px-5
10.2.3 Explanation of the Warning Message No any schedule!！Can’t Save! There is no schedule file in the “Basic Schedule” or “Advance Schedule” can be saved. Please add and edit a new schedule file first. Date Setup Error! There are some errors in the “Advance Schedule”. Check the date/ time of the schedule for conflict or error. -
Page 40: Optional Auxiliary Equipment
11. OPTIONAL AUXILIARY EQUIPMENT 11.1 PLAY-BUTTON BOX (Eyezone BB) The Play Button Box (Eyezone BB) supports up to 12 play-button inputs. Press one of the play buttons to play the corresponding file. Hardware Connection Play the Media File By the Play-Button ex. -
Page 41: Touch-Sensor Buttons
11.2 TOUCH-SENSOR BUTTONS 11.2.1 Features of the Touch-Sensor Buttons The number of touch-sensor buttons can be customized to 12, 24 or 36 for OEM project. Used with various operating environment (glass, plastics and acrylic material, except metal material), the thickness can be customized for OEM project. 11.2.2 Demo Files Ex. -
Page 42: Play The Demo Files
11.2.3 Connect to the Touch-Sensor Buttons Open the battery cover and set the batteries (AA size) as shown below. Please note that the polarity of the battery. 11.2.4 Play the Demo Files Step 1: Insert the CF card to the PA22B1080PX-5, and the PA22B1080PX-5 will play the default file automatically while powered on. -
Page 43: Troubleshooting
12. TROUBLESHOOTING Situation Check Point Check power cable. No Picture Make sure the file format on the CF card is correct. Check that the batteries (2 batteries (AAA size) for the remote No Response From control is installed correctly. the Remote Control Check that there are no obstacles between the remote control and the remote control sensor window.
