The 6224 is isolated from earth ground. However, the individual channels, within their four-channel group, are not
isolated from each other. The EX+, EX–, and T– signals are common among the four channels in their group as
indicated by note 1 on page 3-1 and in the block diagram (page 2-1).
You can connect the 6224 to a device that is biased at any voltage within the unit‟s rejection range of earth ground.
The Specifications chapter includes additional information.

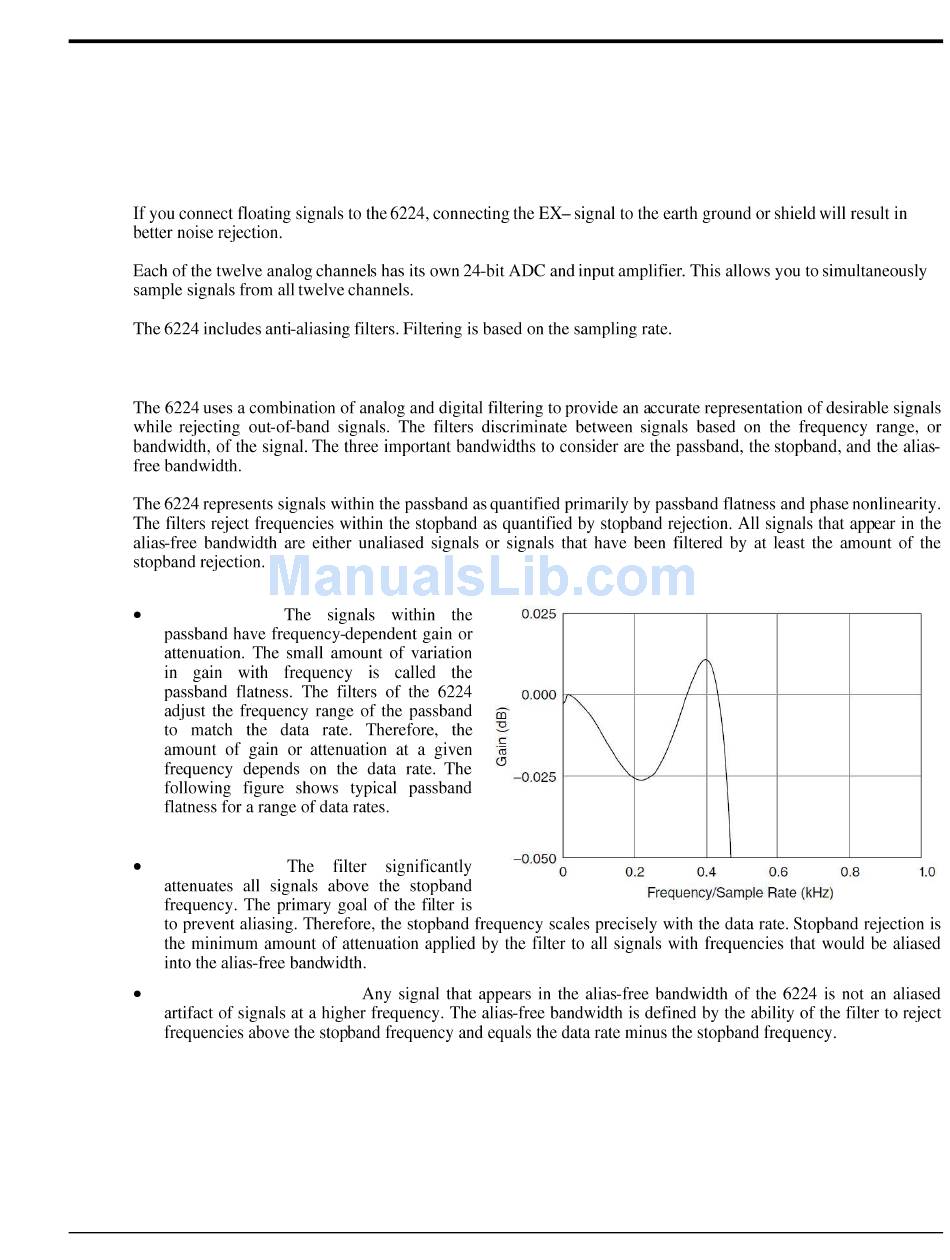

Filtering
Passband -
Stopband
Alias-Free Bandwidth -
6224 User's Manual
-
General Information
1-3
